Compact Track Loaders

SVL75-3

When it comes to your work — having more features is a BIG advantage. It’s a good thing to have plenty of aces up your sleeve when taking on the toughest tasks on the table. From simultaneous functionality, rear view visibility, quiet cab, to an easy slide front door. All these features and more come together in the Kubota SVL75-3.

Overview

When it comes to your work — having more features is a BIG advantage. It’s a good thing to have plenty of aces up your sleeve when taking on the toughest tasks on the table. From simultaneous functionality, rear view visibility, quiet cab, to an easy slide front door. All these features and more come together in the Kubota SVL75-3.

Features

Widest Cab in the market with roll-up door

Widest Cab in the market with roll-up door

The sealed and pressurized cabin is 78 dBa at the ear and has a wide entrance, 36” side-screen to side-screen width. This allows operators to comfortably pivot when looking to their rear. When coupled with a rear-view camera, rear visibility is at its maximum. Cab models come with Heat and AC standard, rear-view camera, radio, roll-up front door and much more.

Vertical lift

Vertical lift

Easily dump into the tallest dumpster or truck thanks to Kubota’s outstanding vertical lift. It raises the bucket even higher without sacrificing any of its 122.7 hinge pin height. Self-leveling is standard on all SVL models, it helps keep the bucket or pallet forks parallel to the ground without the need to manually adjust the angle during lifting.

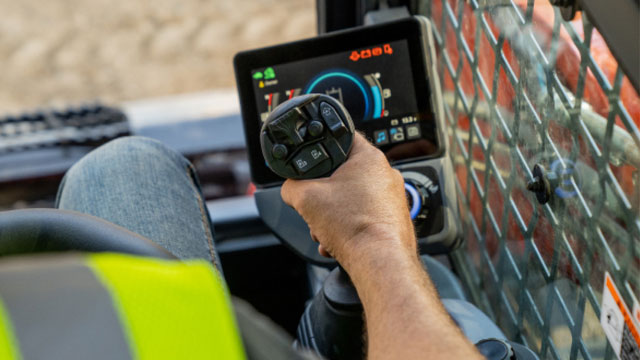

Low effort hydraulics pilot controls

Low effort hydraulics pilot controls

Work next to home structures and curbs with confidence. Kubota’s hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. The SVL75-3 features Advance Multi-Function Valve for industry leading simultaneous function, Auto Shift for automatic downshifts for maximum torque and traction when turning, The SVL75-3 Engine Torque Management is there to protect the investment and has track response adjustment for all levels of operators.

Convenient technology

Convenient technology

A full-colour 7” LCD touch screen with Jog Dial provides a quick look at the information you need to operate the SVL75-3 at a higher level. Enjoy the radio or connect your device via bluetooth while charging it with the USB port. The SVL75-3 also features keyless engine start with passcode, a full-colour rear-view camera, and bright LED lights that have delay turn off to get back to your vehicle safely at night.

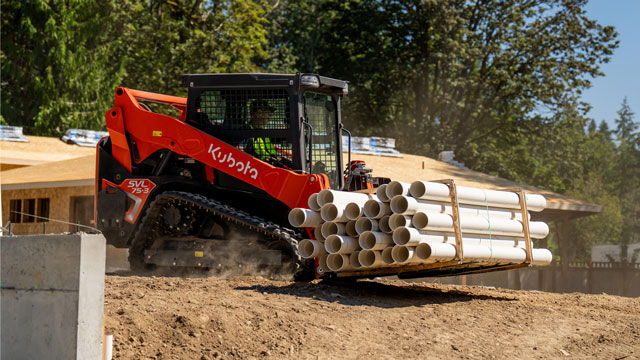

Two speed travel with electronic torque management

Two speed travel with electronic torque management

Shift from first speed of 9.0 Km/h to second speed of 13.7 Km/h to get the job done faster. Track Response lets you adjust the response speed from when you push the lever to when you start traveling. The electronic travel torque management system lets you work faster with more power. By optimizing hydraulic performance when pushing or moving heavy loads, the system prevents engine stalling allowing for faster recovery. Auto Shift automatically downshifts giving you maximum torque and traction when turning.

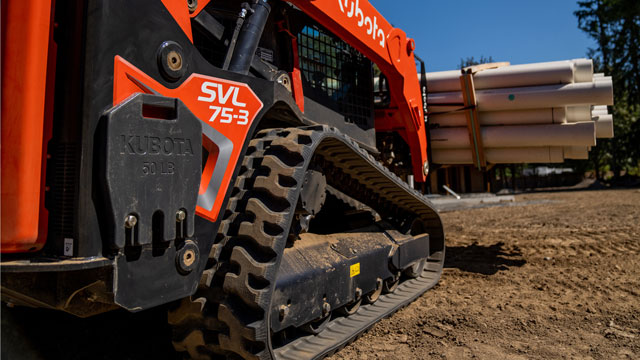

Main frame and undercarriage

Main frame and undercarriage

The welded integrated mainframe and undercarriage forms an integral part for maximum durability with no exposed hoses. A highly reliable triple flange track roller design not only minimizes the risk of detracking, but improves stability as well. They are lifetime sealed and lubricated.

Easy maintenance

Easy maintenance

With access to the engine room, it’s easier to maintain the upper part of the engine. The cab can be tilted without having to lift the arm, allowing easy access to the hydraulic pumps, valves, lines and hydraulic tank. The grease zerks are easily accessed and the pre-cleaner keeps debris away from your engine.

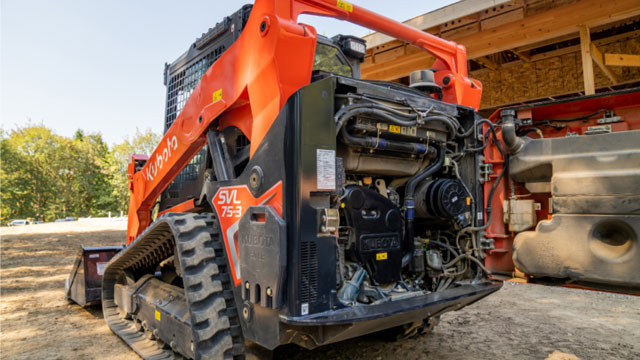

Reliable Kubota engines

Reliable Kubota engines

A loyalty hallmark, Kubota Engines have proven their worth time and time again. You can find them in all of our diesel engine powered units – and even those of some of our competitors who take advantage of its reputation. The SVL75-3’s engine also features a cooling system and variable fan for perfect water and oil temperatures no matter the weather with reversing fan option.

Videos

Overview of the SVL75-3 Compact Track Loader

Models

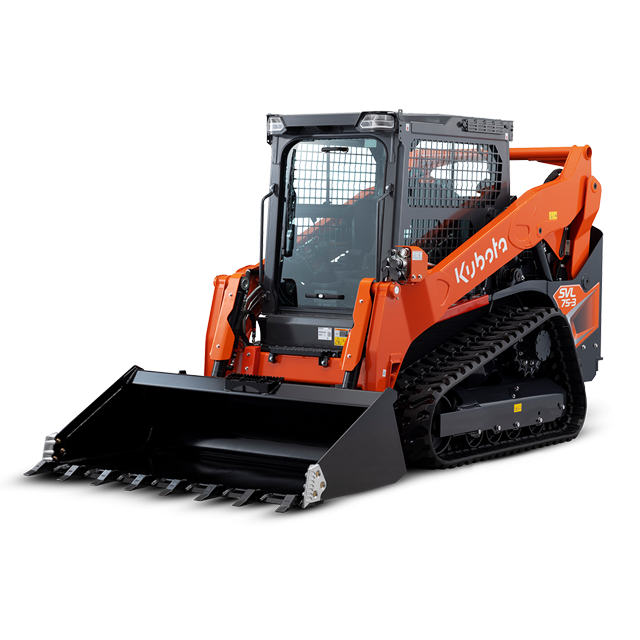

SVL75-3

SVL75-3

Engine Horsepower: 73.2 HP
Rated Operating Capacity - 35% Tipping Load: 2,490 lbs
Bucket Breakout Force: 6,191 lbf
Operator Platform: Canopy / Cab
