Power Mergers

PM Series

Experience superior forage quality and nutrient retention with the new Kubota Power Merger lineup. Built for versatility and efficiency to adapt to both dry and wet multi-crop conditions while extending your harvesting window. This comprehensive lineup delivers top performance across a range of crop environments—and it's backed by Kubota’s standard 2-year factory hay tools warranty.

false

Overview

The Kubota PM1038 is a lightweight front-mounted merger designed for hilly terrain. It rakes without driving over the crop, using a unique pick-up and belt system to ensure smooth, efficient crop flow.

The Kubota PM2073T features two hydraulically adjustable pick-up units for left, right, or centre delivery. It offers excellent suspension to lift crops cleanly, reducing soil contamination. Its six-bar, twin-cam pick-up and reinforced, saw-blade-style belt, handle various silage cuts and crop conditions effectively.

The Kubota PM3010T is a professional-grade merger with a 10m working width and low power requirements. Needing only a 100 hp tractor, it reduces fuel use, optimises work time, and produces uniform, gentle swaths. Its six-bar, twin-cam spring pick-up system lifts crops cleanly, minimising hay loss and improving silage quality.

The Kubota PM30115T is a high-capacity, continuous merger built for professional use. Offering a 6-bar, triple-cam spring pick-up system, it handles all field conditions effectively. Like the RT1000, it runs on a 100 hp tractor and delivers reduced hay loss, better silage quality, and uniform swath production with minimal power use.

Features

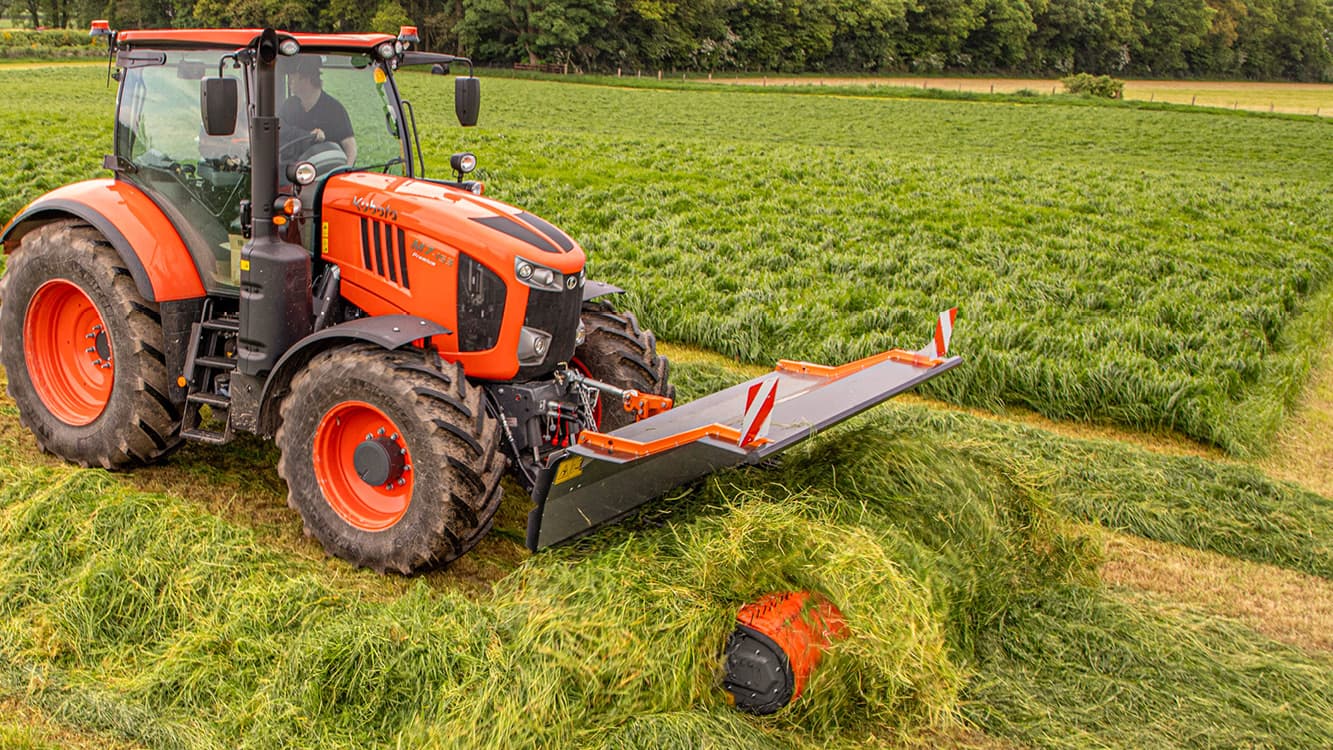

Mounted merger

Mounted merger

Front Mounted, 3-point hitch mergers with 3.8m working width and left or right swath delivery. (PM1038)

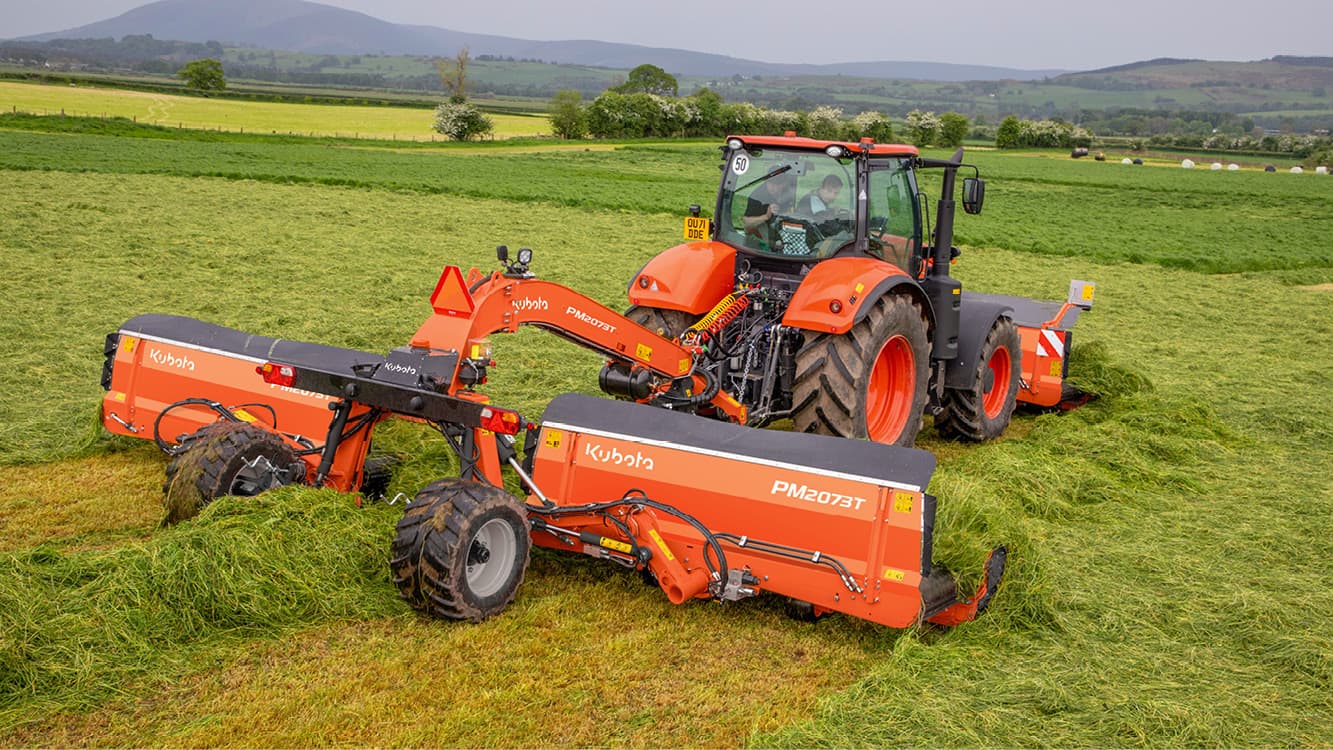

Centre/side delivery

Centre/side delivery

Trailed, 2-pickup mergers with working widths of 7.3m with both side and centre delivery. (PM2073T)

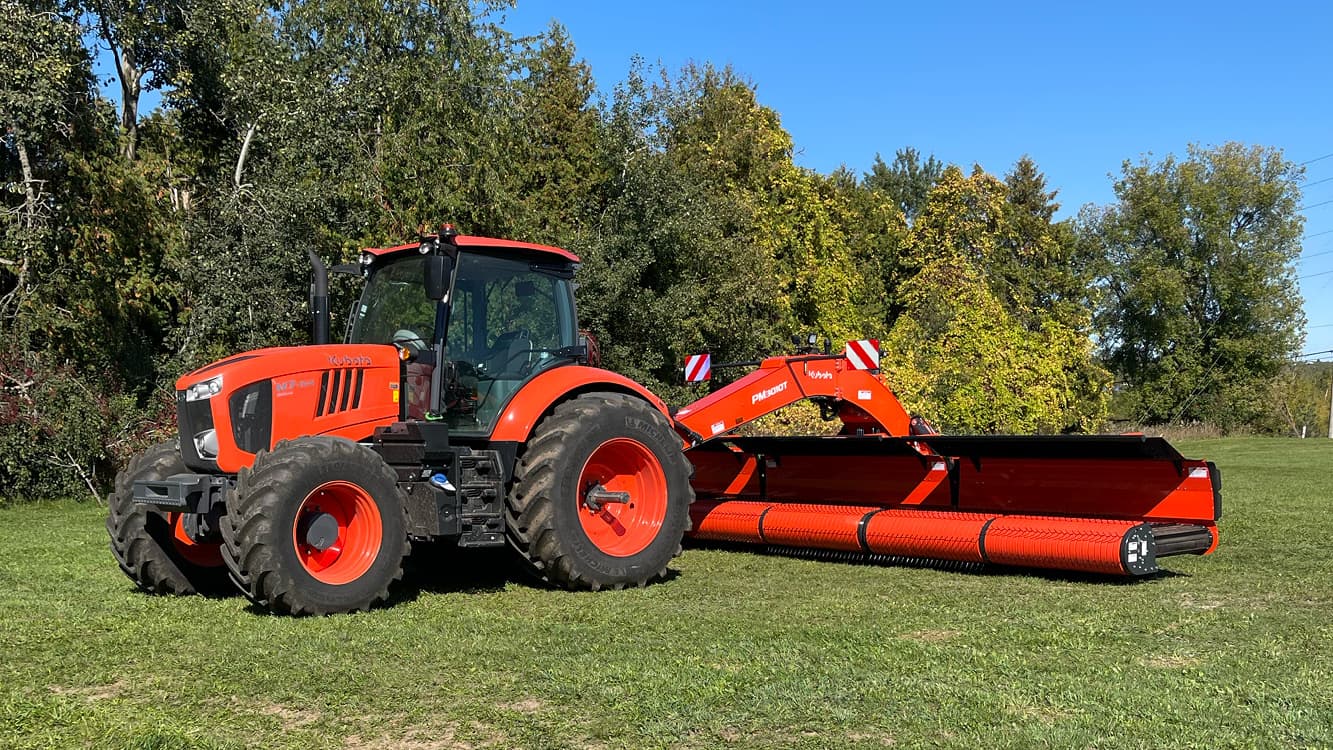

Continuous side delivery

Continuous side delivery

Trailed, 3-pickup mergers designed for large dairy and custom operators. Top-of-the-line offerings, available in both 10m and 11.5m working widths. (PM3010T & PM 30115T)

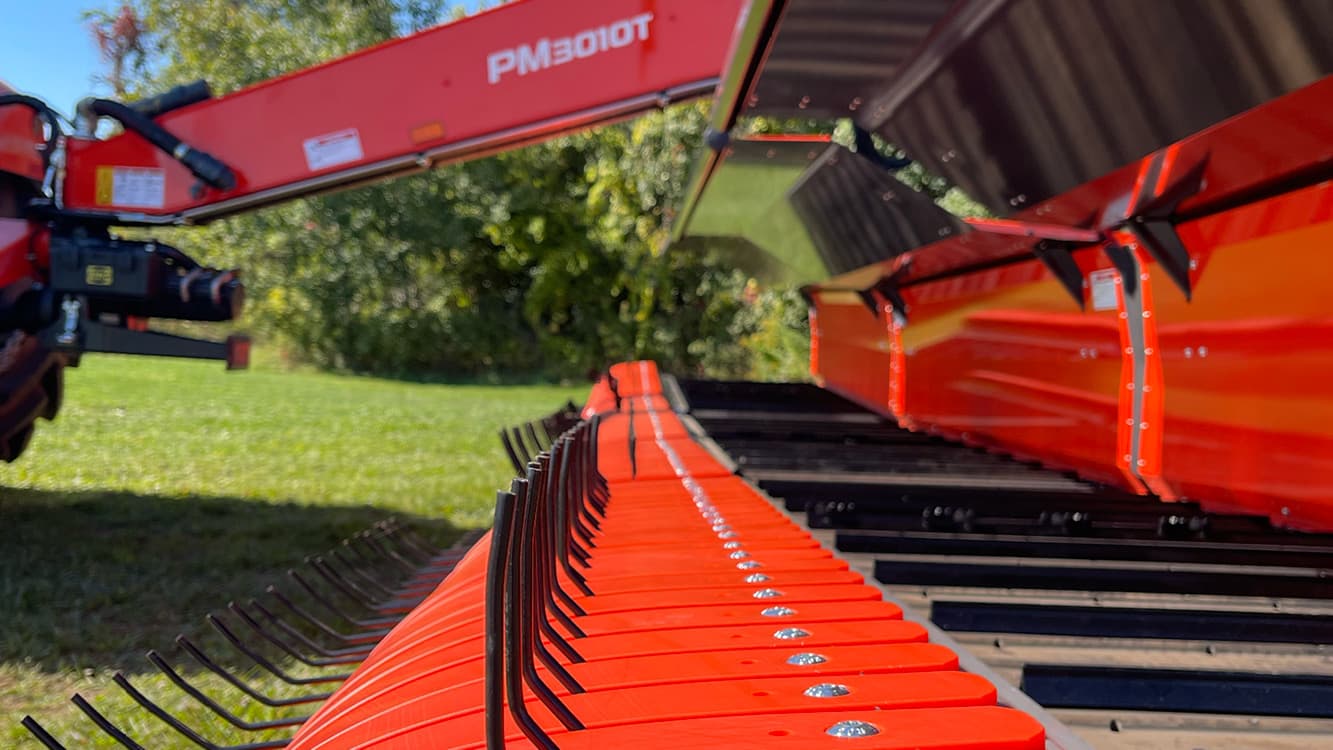

Unique pick-up

Unique pick-up

Kubota Power Mergers feature twin or triple cam pickups, depending on the model for added durability. Their cam track system guides tines to move crop forward and retract cleanly, preventing material from being pulled under the belt.

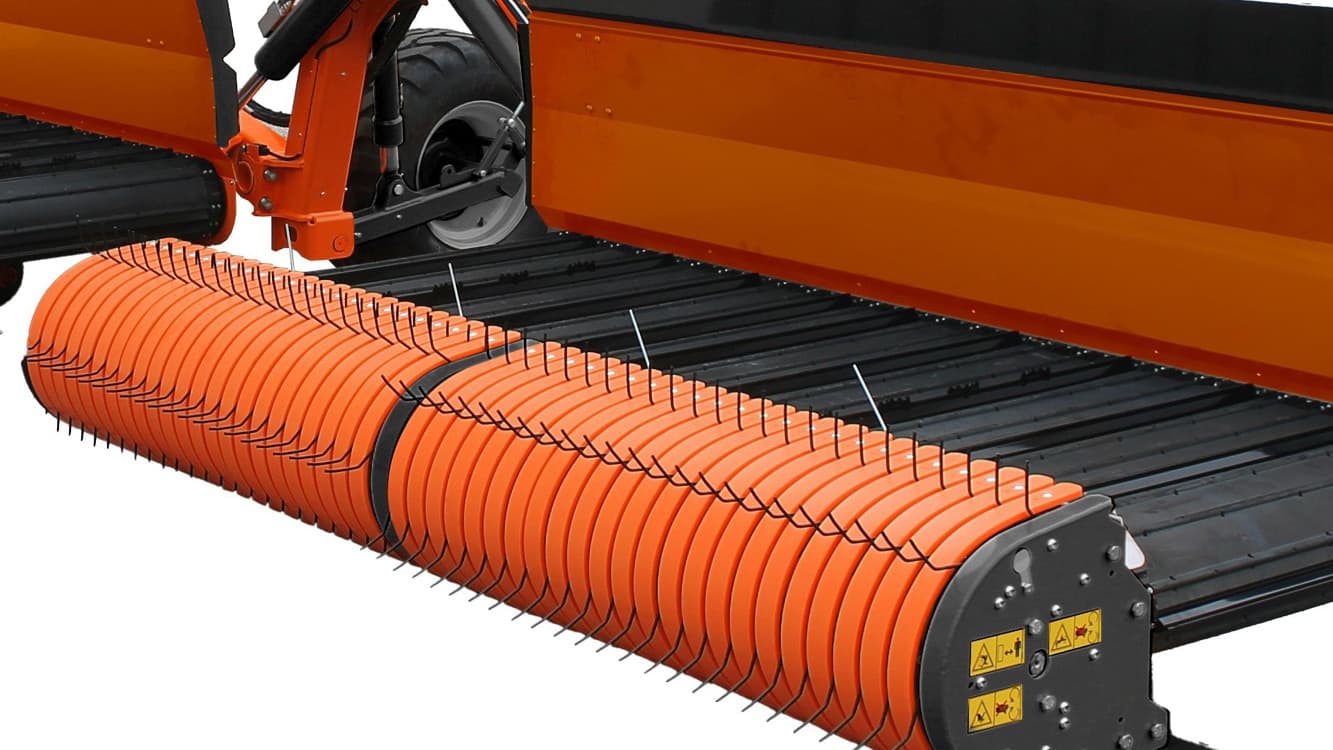

Tines & guides

Tines & guides

The positively curved tines ensure efficient forage loading, while flexible plastic guides provide quiet operation and smoothly funnel the crop toward the belts.

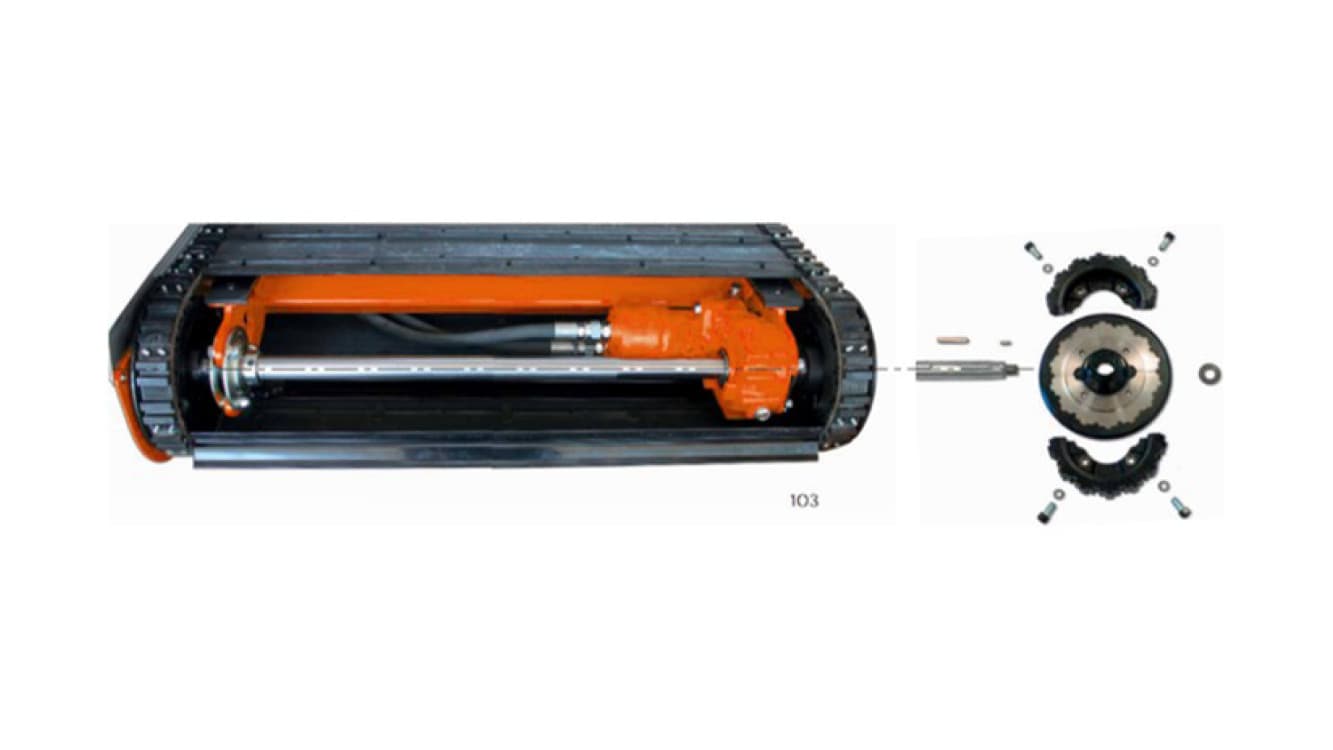

Belt drive system

Belt drive system

The crown and sprocket belt drive system maintains a continuous grip between rollers and belts, preventing slippage in heavy crops and ensuring reliable performance in dusty conditions.

Belt design

Belt design

Steel-reinforced crossbars ensure reliable crop transport in both dry and wet conditions, while allowing for easy repair of individual belt sections.

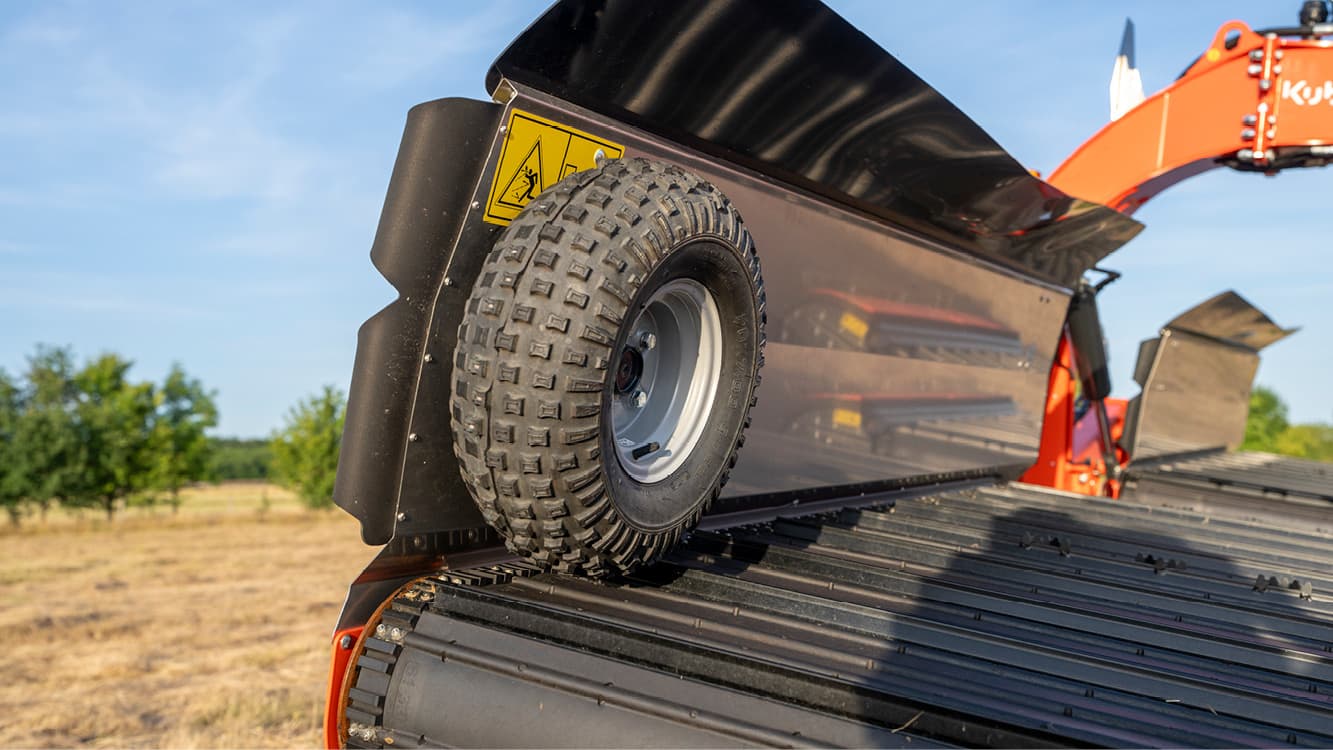

Blockage control

Blockage control

Knives along the underside of the belt prevent roping at the belt corner, while an available wheel prevents accumulation in wet or heavy tedded crops. (PM1038/PM2073T)

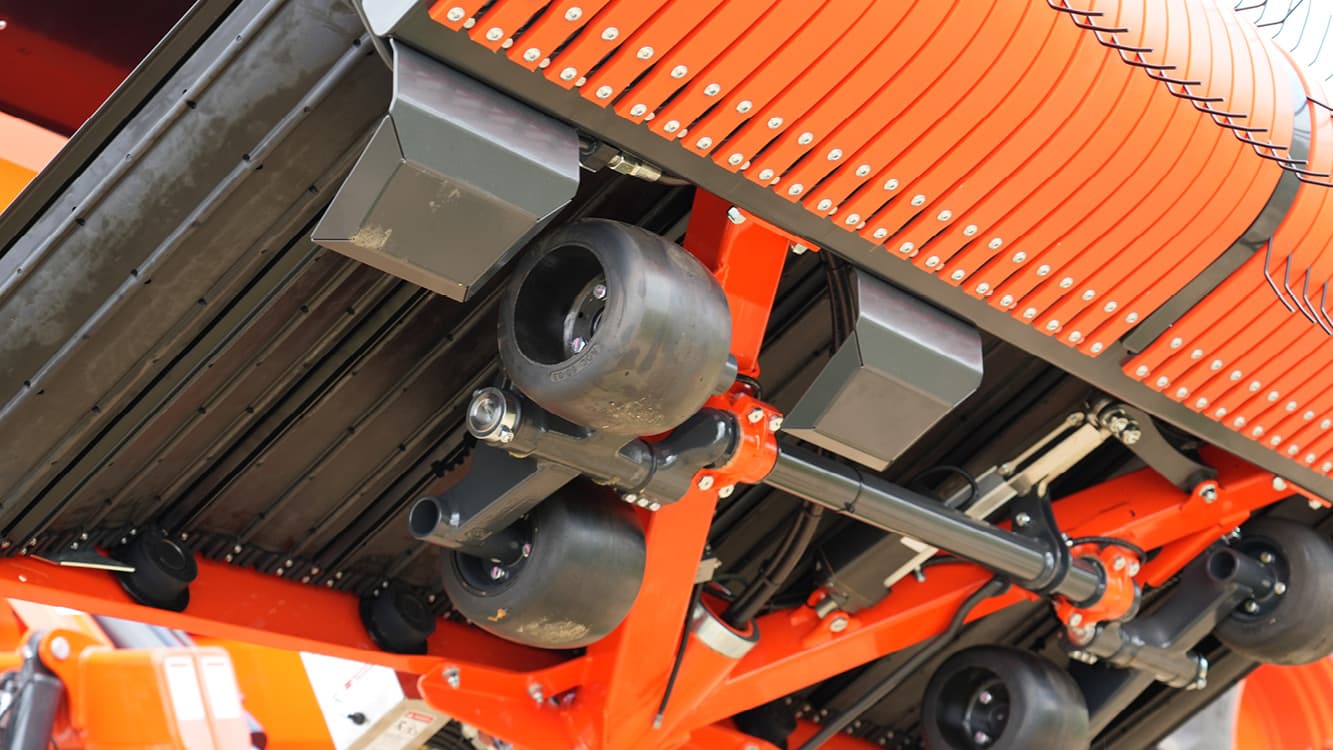

Tandem wheel suspension

Tandem wheel suspension

Each pickup is equipped with four tandem wheels featuring spring suspension and electric height adjustment, enabling high-speed operation and clean crop flow with minimal soil contamination. (Option on PM1038/PM30115T)

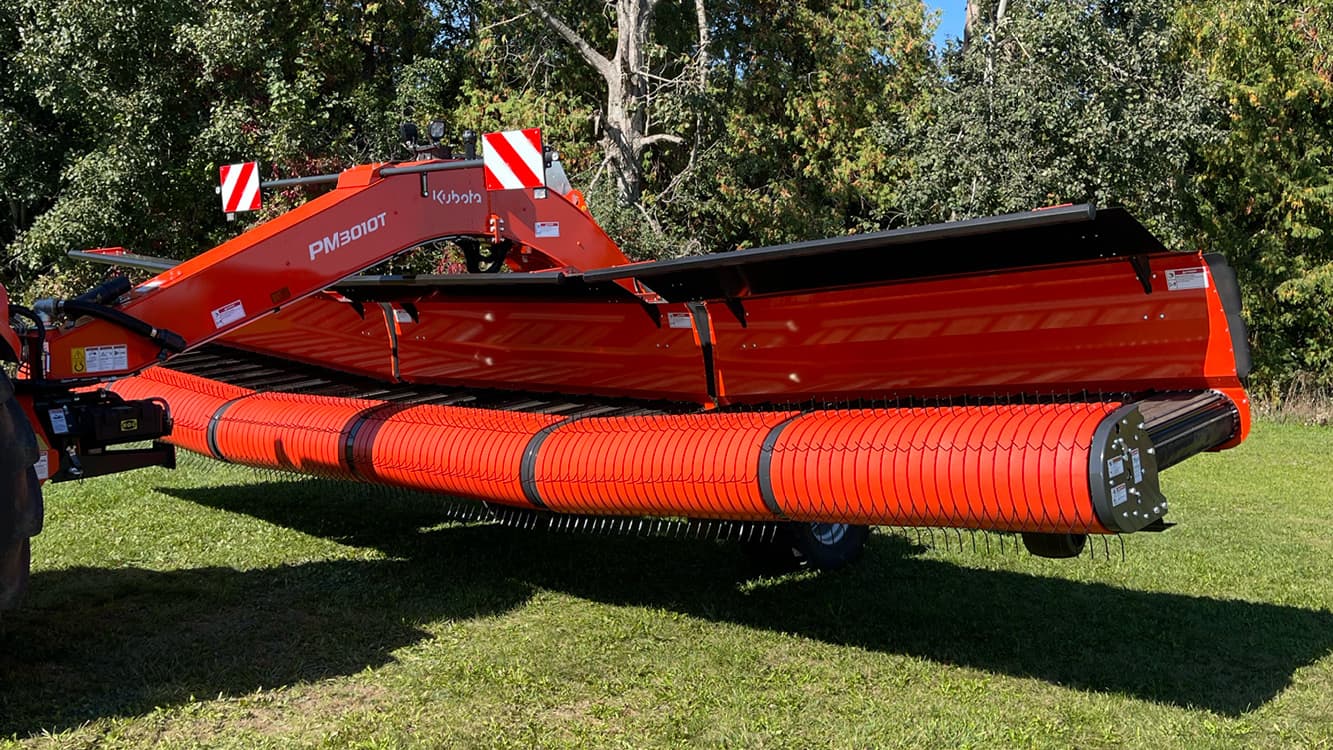

Ground protection

Ground protection

Trailed units are hydraulically suspended to float across varying terrain keeping fields and crops healthy.

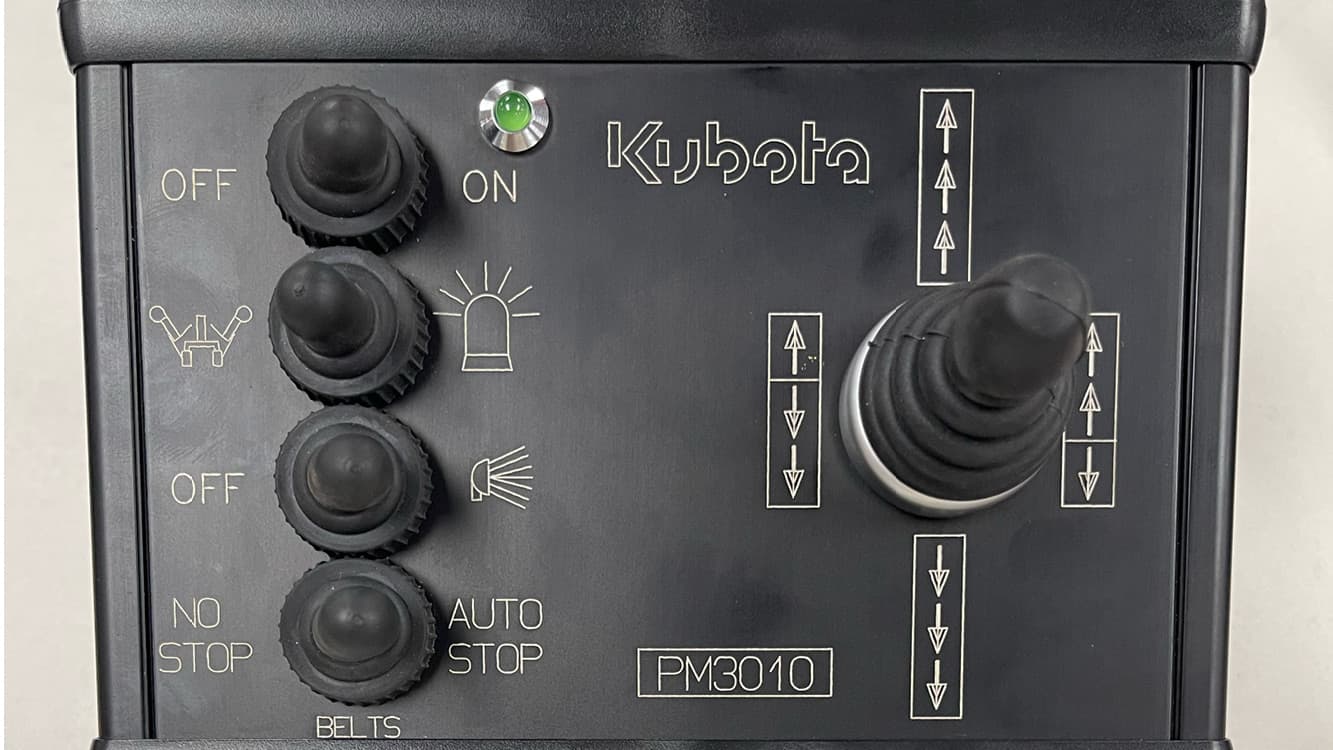

Control box

Control box

An intuitive control box manages key functions such as height adjustment, belt direction, and folding/unfolding. It also features emergency run technology, allowing the Power Merger to operate even if electrical power is lost.

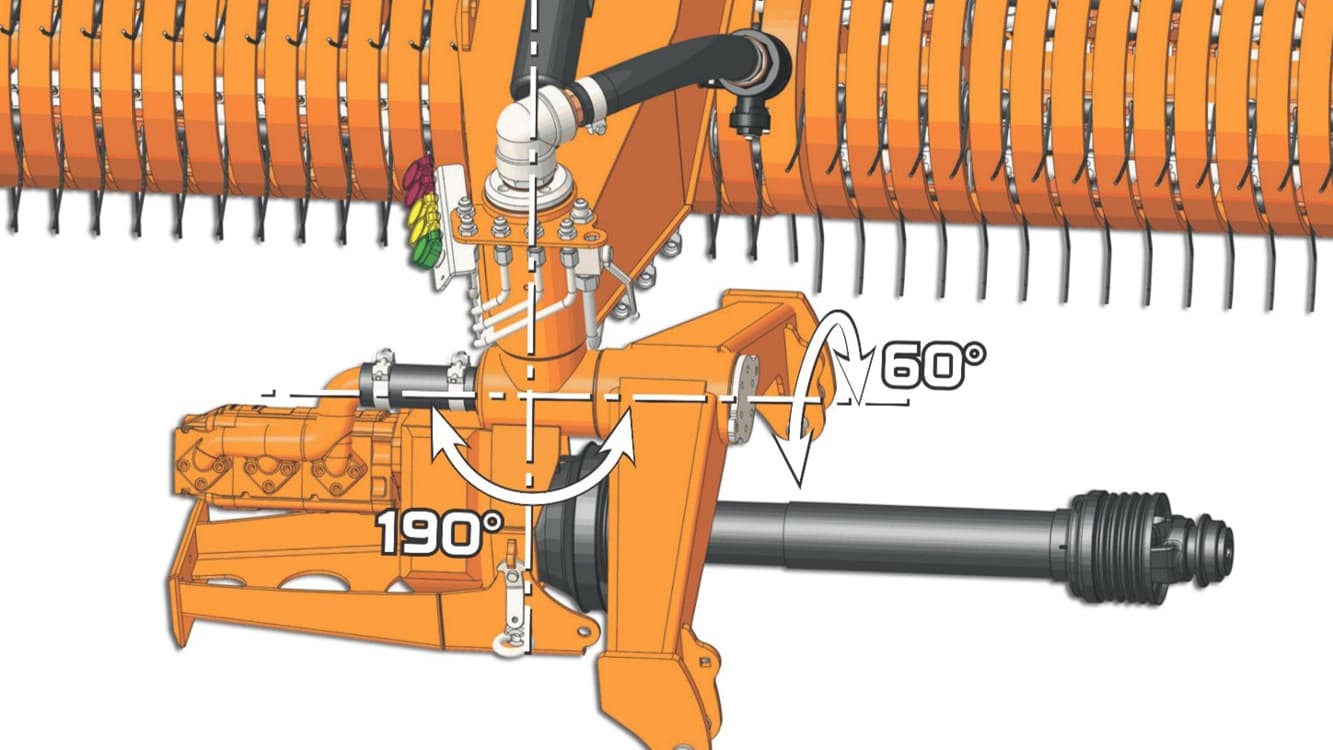

Maneuverability

Maneuverability

Highly maneuverable with 190° hitch turning and 60° articulation to help countour over uneven terrain.

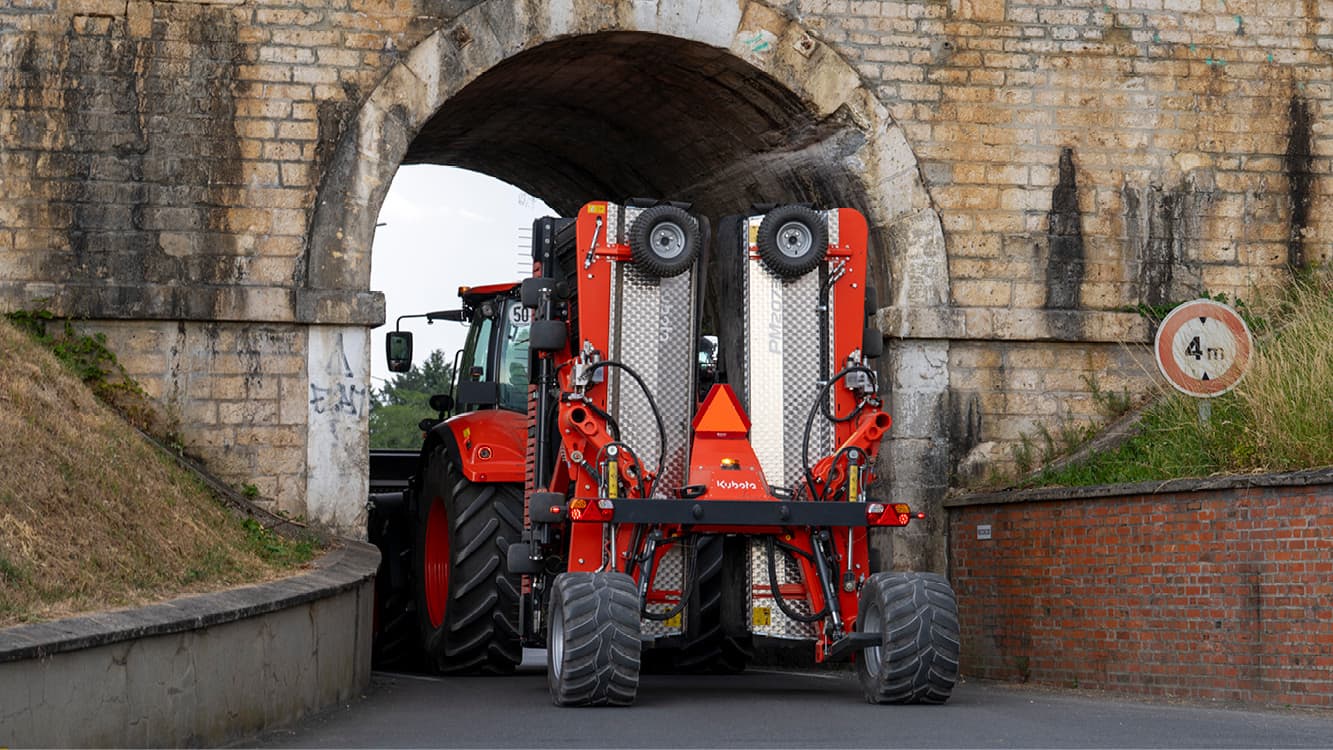

Narrow transport

Narrow transport

Easily move between fields or get back on the road with transport widths as narrow as 2.5 to 3m dependingon the model. Simplify storage with a maximum travel height of just 3.2m.

Versatility

Versatility

Kubota Power Mergers demand low tractor power requirements and can be operated partially or fully folding to rake in smaller swaths or turning over existing ones. (PM3010T & PM30115T)

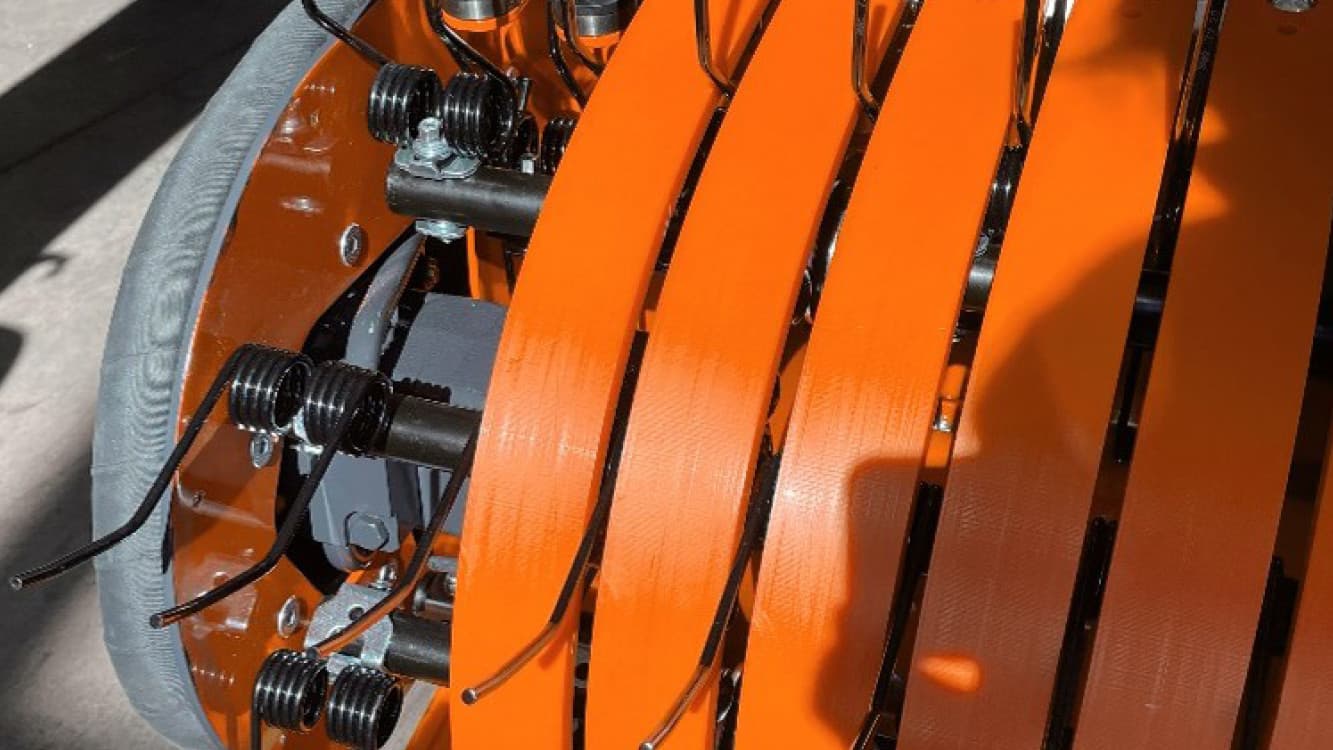

Easy maintenance

Easy maintenance

Engineered with a primary focus on easy maintenance and quick replacement of wear components—no major disassembly required.

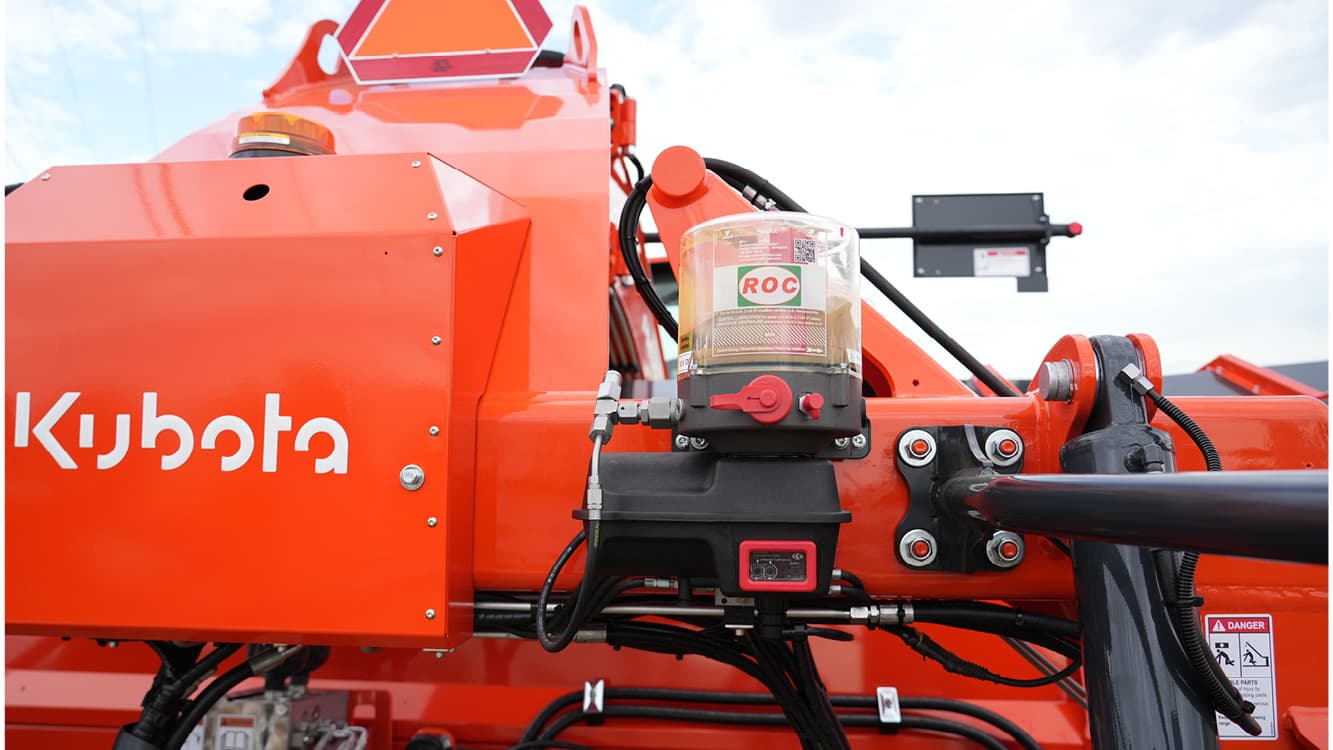

Durability & uptime

Durability & uptime

Kubota Power Mergers are built to protect your harvesting window, featuring convenient grease zerk banks and optional automatic greasing systems for reduced maintenance and maximum uptime.

Models

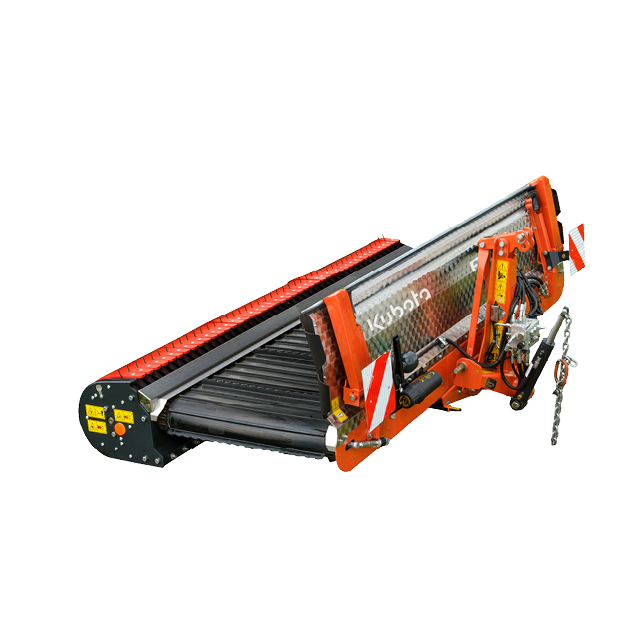

PM1038

PM1038

Type: Front Mounted
Working Width: 3.8 m
Swath Delivery: Side
Transport Width: 9' 8" (2.95m)

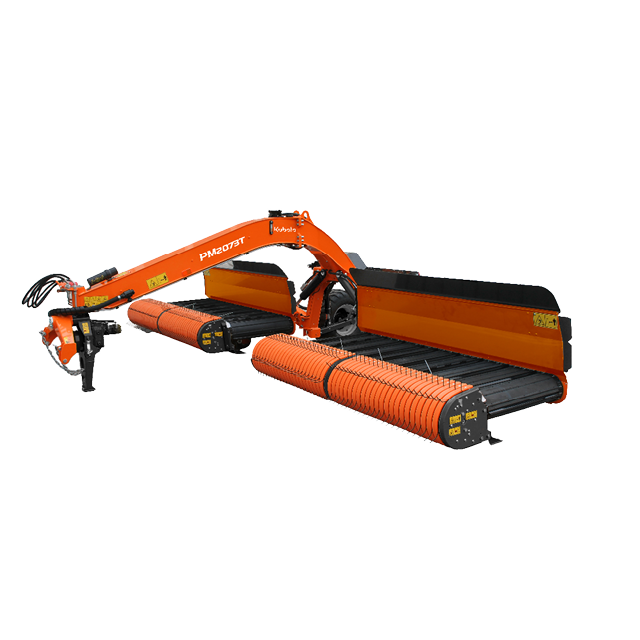

PM2073T

PM2073T

Type: Trailed
Working Width: 7.3m
Swath Delivery: Centre or Side
Transport Width: 8' 2" (2.5m)
PM3010T

PM3010T

Type: Trailed
Working Width: 10.0m
Swath Delivery: Side
Transport Width: 9' 10" (3.0m)

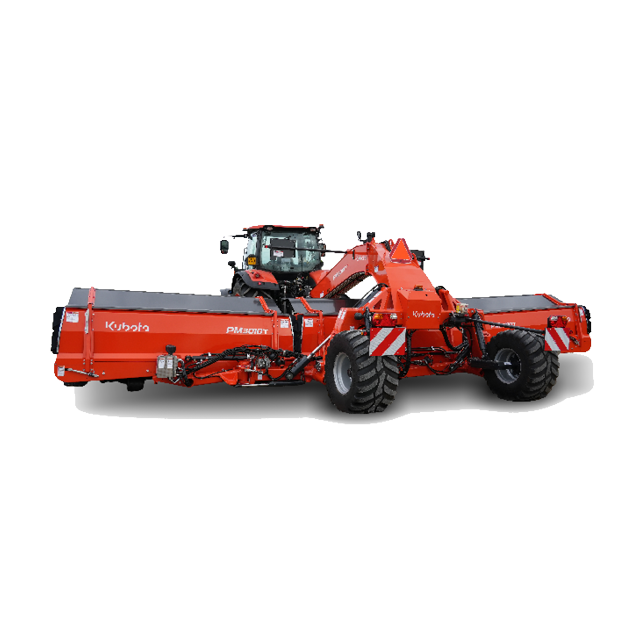

PM30115T

PM30115T

Type: Trailed
Working Width: 11.5m
Swath Delivery: Side
Transport Width: 9' 10" (3.0m)
