Disc Mower Conditioners

DMC6300 Series

The DMC6300 & 63100 series has been designed for even more productivity and to handle tougher conditions than ever. With it’s accurate tracking ability and very flexible working range, the ground-breaking QuattroLink suspension provides unrivalled cutting performance. Available with roller or tine conditioning. Working width: 10'6" (3.2m) - 33'6" (10.2m).

false

Features

Three-bladed discs

Three-bladed discs

With three blades per disc, Kubota mowers provide a 50% higher cutting frequency compared to conventional solutions. This means a third less load per blade, an even load on the drive, smoother power usage, and produces a neat, cleanly cut stubble.

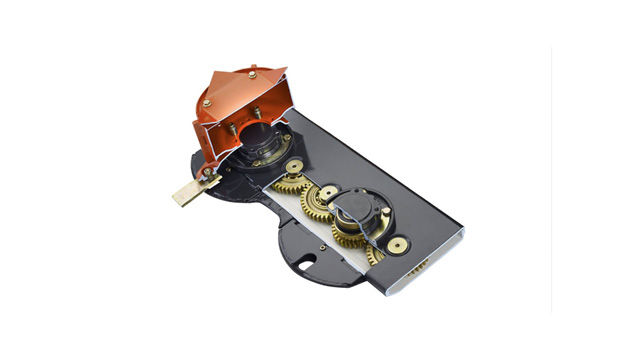

Fully welded cutterbar

Fully welded cutterbar

The Kubota cutterbar’s high cooling and lubrication efficiency oil pump system reduces wear and tear. The fully welded cutterbar with overlapping C-channels makes for a very strong design requiring low maintenance with no risk of loose bolts.

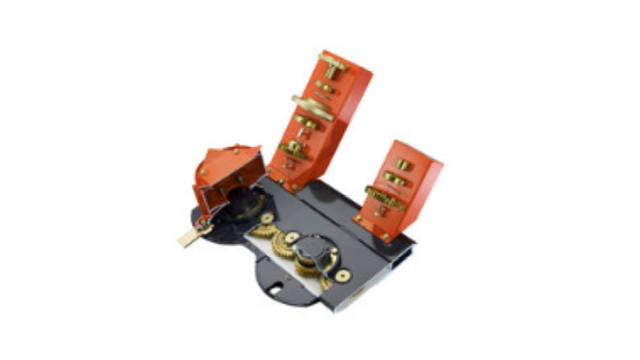

Shear Protection

Shear Protection

Shear protection of gear wheels and the drive system designed to break in case of overload or major contact. Once sheared, the hub is easily replaceable for minimum downtime.

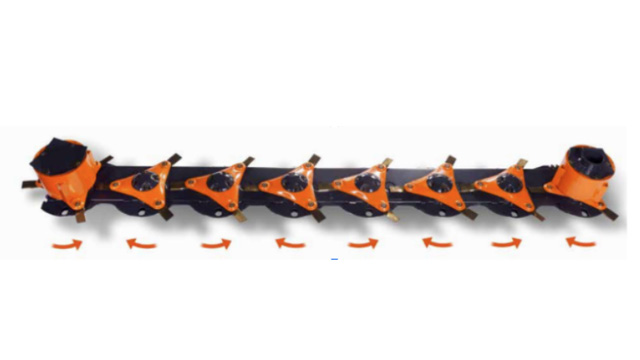

Counter-rotating discs

Counter-rotating discs

An even number of counter-rotating discs provides generous overlap between all discs, high lift, and better crop throughput.

QuattroLink Suspension

QuattroLink Suspension

An exceptional ground following system, the mowing unit is pulled by four suspension arms fitted onto a fixed carrying arm. This allows the mowing unit to float independently over the field and adjusting instantly and accurately to changes in ground conditions.

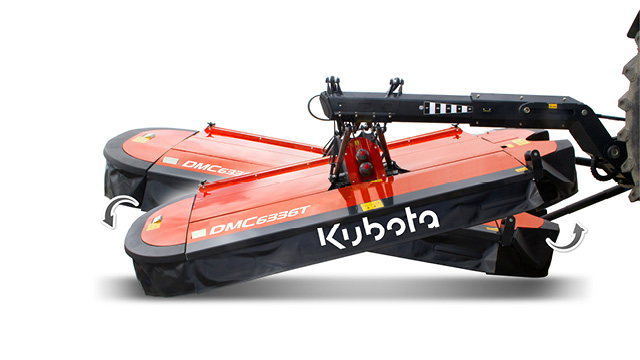

Exceptional Flexibility

Exceptional Flexibility

The mowing pattern is extremely flexible with a vertical working range of 27.6” (700 mm) up and down and a transverse working range of 30°, ensuring constant ground pressure.

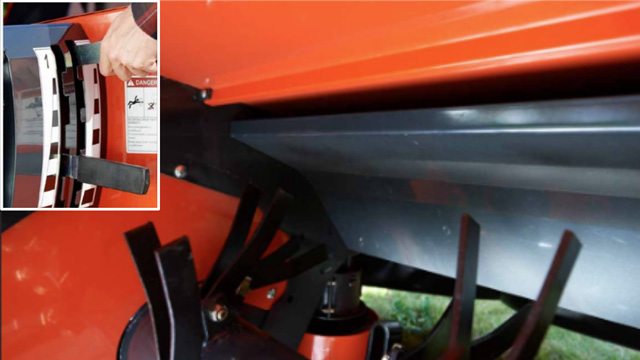

Independent Tine Conditioner Hood Adjustment

Independent Tine Conditioner Hood Adjustment

The dual adjustment of the conditioner hood meets the exacting demands of various crop conditions in the field. Both front and rear of the conditioner hood can be independently adjusted to customize the conditioner to crop density for improved grass flow and power consumption.

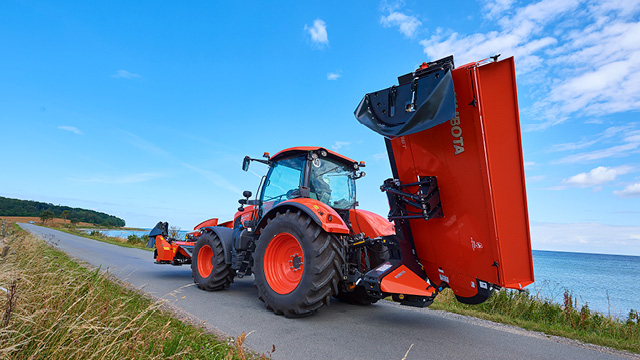

Convenient Transport

Convenient Transport

The mower folds hydraulically for transport and the telescoping frame arm moves to the lowest overlap position, reaching a transport height as low as 12’2” (3.7m) depending on the model. With the integrated parking device, storage is easy and requires minimum space.

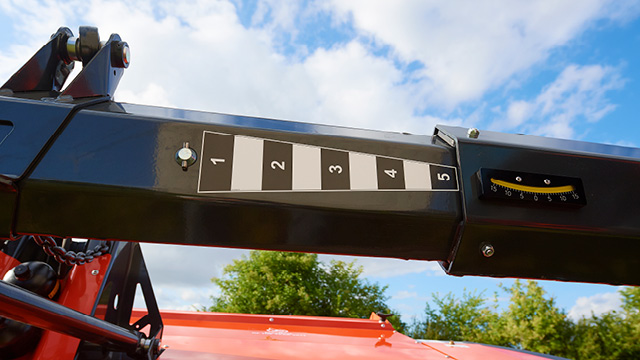

Hydraulic Sideshift (VARIO)

Hydraulic Sideshift (VARIO)

Hydraulic SideShift integrated into the telescopic carrying arm, allows each mowing unit to move laterally by 15.7” (400 mm) to easily compensate for changing terain or to minimize overlap with a front mower.

Full-width Rubber Roller Conditioning

Full-width Rubber Roller Conditioning

Roller conditioning provides gentle, yet effective handling of fragile crop such as alfalfa or clover. The adjustable spring-controlled pressure exerted between the two rollers guarantees uniform conditioning and low risk of plugging.

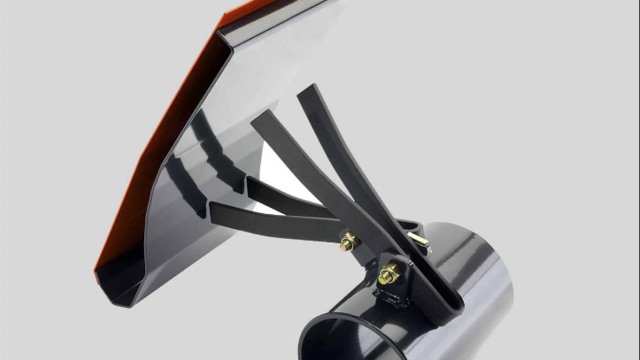

Full-width Semi Swing Tine Conditioning

Full-width Semi Swing Tine Conditioning

The Kubota SemiSwing tine conditioner with adjustable conditioning hood is highly adaptable to varying crop types. During operation tines will stay in a fixed position, providing full cutterbar width conditioning with minimum wear.

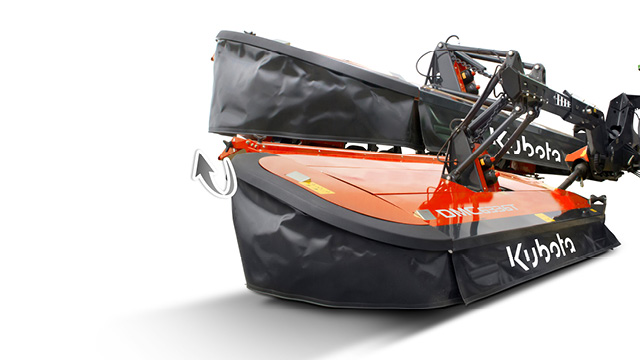

NonStop Breakaway System

NonStop Breakaway System

If an object is encountered, the cutting unit will move up and back, automatically returning to original working position. This helps protect 100% of the full working width, with no need to stop and reset.

Models

DMC6332T

DMC6332T

Type: Tractor Side Mounted
Cutting Width: 10'6" (3.2m)
Conditioner: SemiSwing Tine
Horsepower (min): 90.0 HP
PTO: 1000 RPM

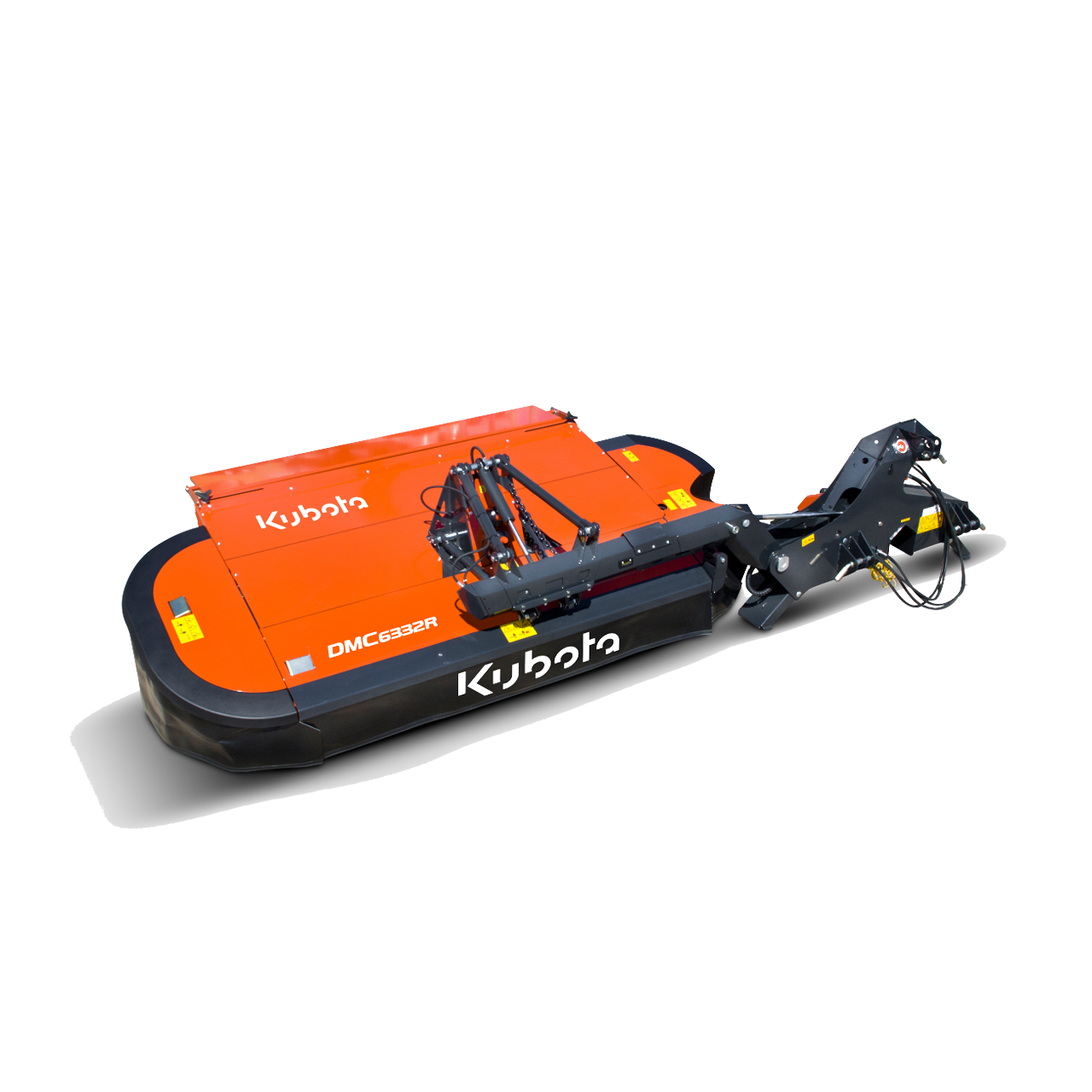

DMC6332R

DMC6332R

Type: Tractor Side Mounted
Cutting Width: 10'6" (3.2m)
Conditioner: Rubber Roller
Horsepower (min): 90.0 HP
PTO: 1000 RPM

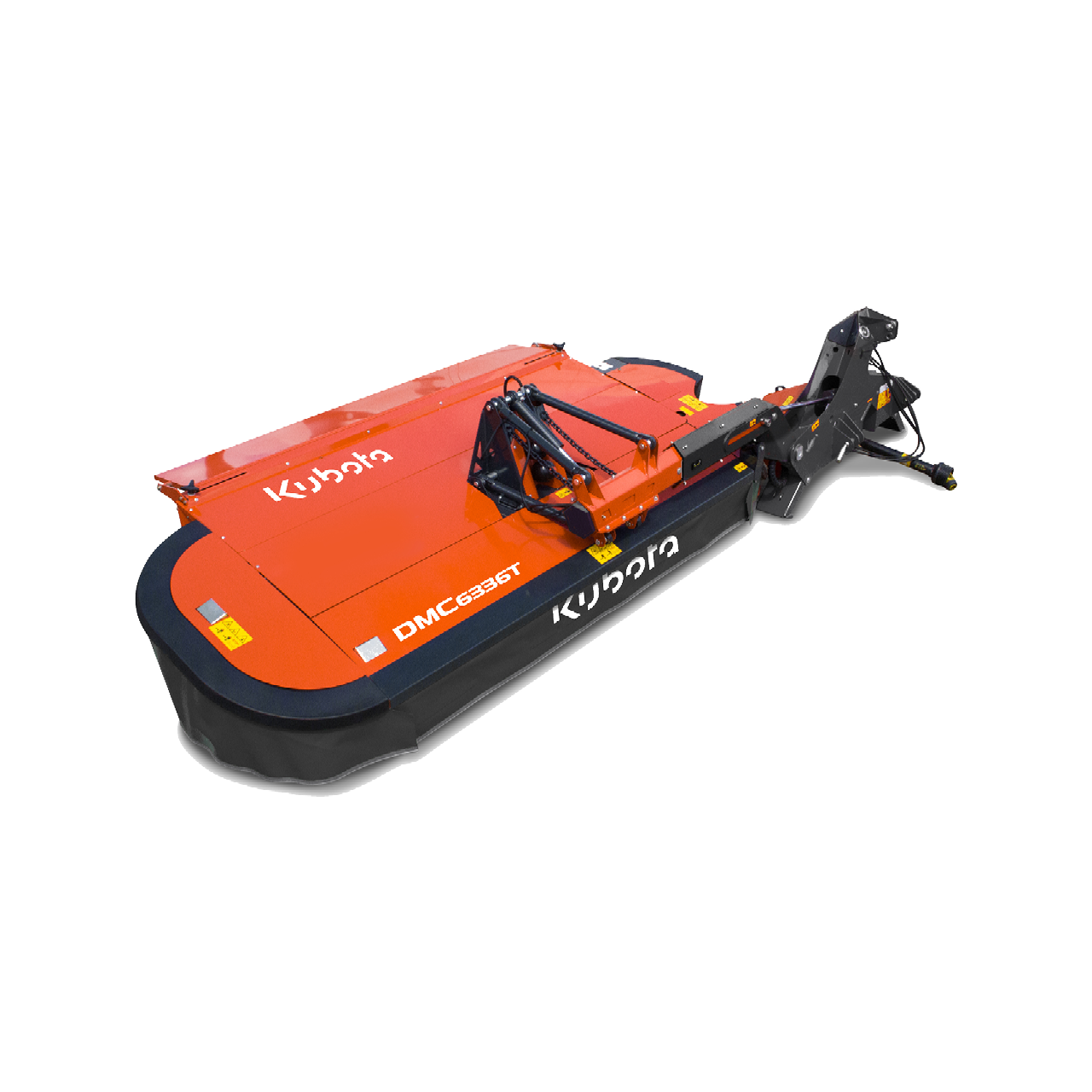

DMC6336T Vario

DMC6336T Vario

Type: Tractor Side Mounted
Cutting Width: 11'6" (3.5m)
Conditioner: SemiSwing Tine
Horsepower (min): 120.0 HP
PTO: 1000 RPM

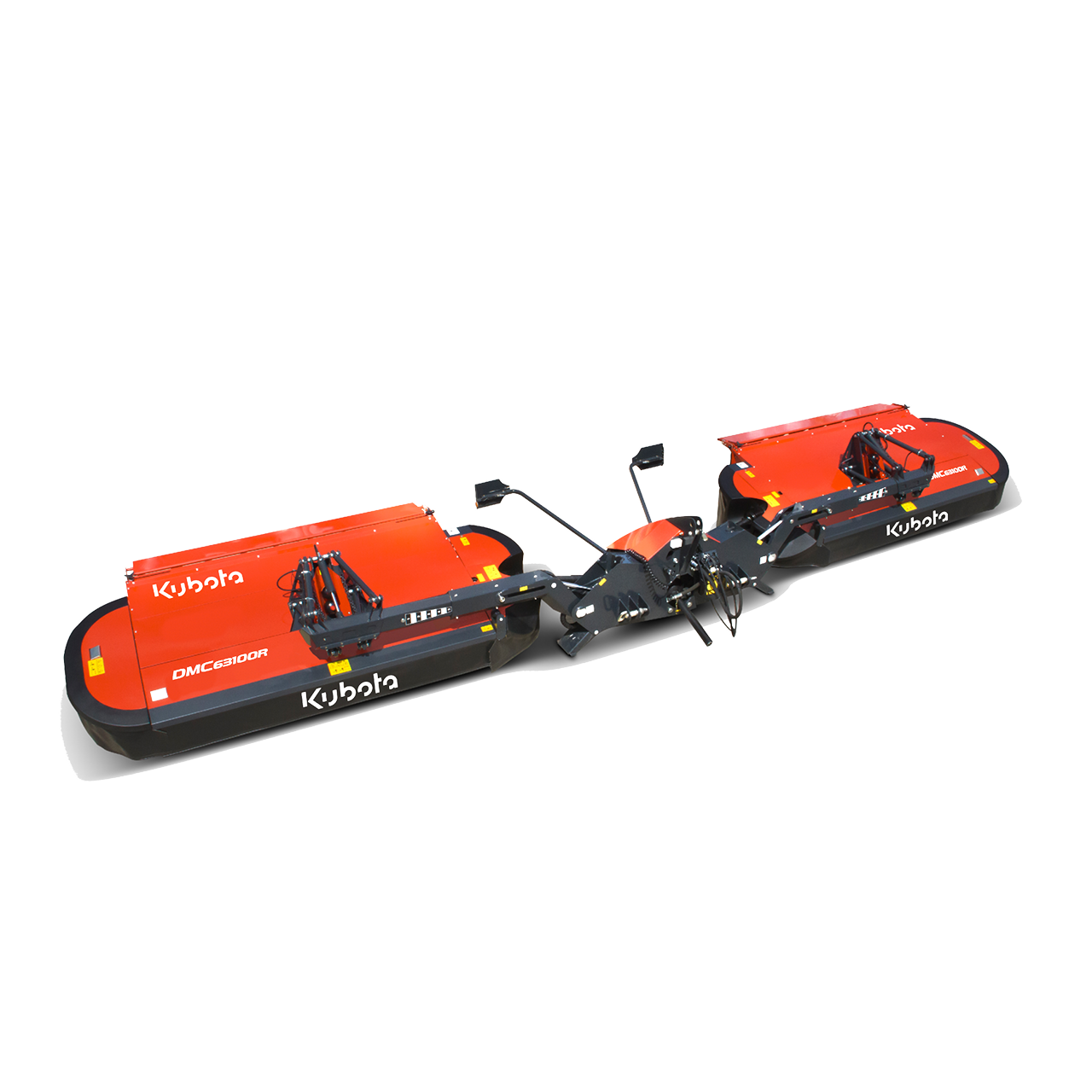

DMC63100R Vario

DMC63100R Vario

Type: Tractor Mounted Butterfly
Cutting Width: 33'5" (10.2m)
Conditioner: Rubber Roller
Horsepower (min): 200.0 HP
PTO: 1000 RPM
DMC63100T Vario

DMC63100T Vario

Type: Tractor Mounted Butterfly
Cutting Width: 33'5" (10.2m)
Conditioner: SemiSwing Tine
Horsepower (min): 200.0 HP
PTO: 1000 RPM

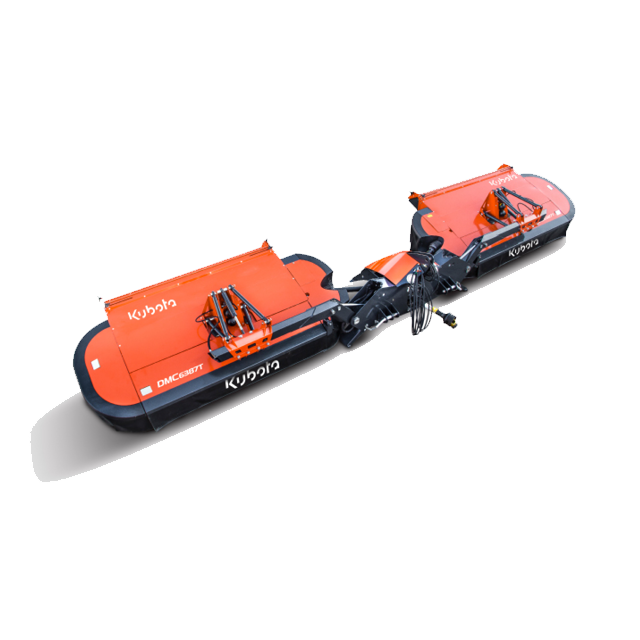

DMC6387T

DMC6387T

Type: Tractor Mounted Butterfly
Cutting Width: 28'5'' (8.7m)
Conditioner: SemiSwing Tine
Horsepower (min): 200.0 HP
PTO: 1000 RPM
DMC6387R

DMC6387R

Type: Tractor Mounted Butterfly
Cutting Width: 28'5'' (8.7m)
Conditioner: Rubber Roller
Horsepower (min): 200.0 HP
PTO: 1000 RPM
