Disc Mowers

DM4000 Series

Kubota's DM4032 front-mounted disc mower is the tough, low weight and low horsepower solution for superior cutting and terrain adaptability. Weighing only 1,566 lbs. and with a 10'6" working width, this model can be used by tractors with as little as 40 HP. It's packed with high-efficiency features that are simple to set and easy to adjust.

false

Features

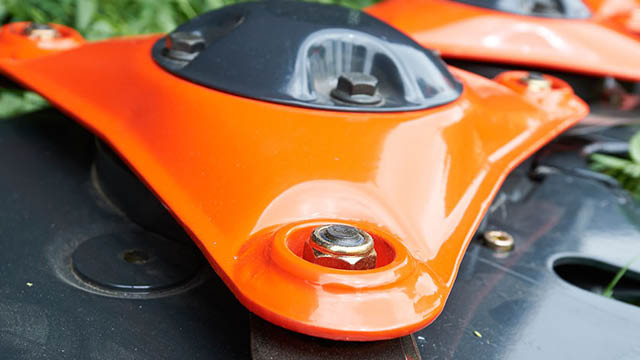

Three-bladed Discs

Three-bladed Discs

With three blades per disc, Kubota mowers provide a 50% higher cutting frequency compared to conventional solutions. This means a third less load per blade, an even load on the drive, smoother power usage, and produces a neat, cleanly cut stubble.

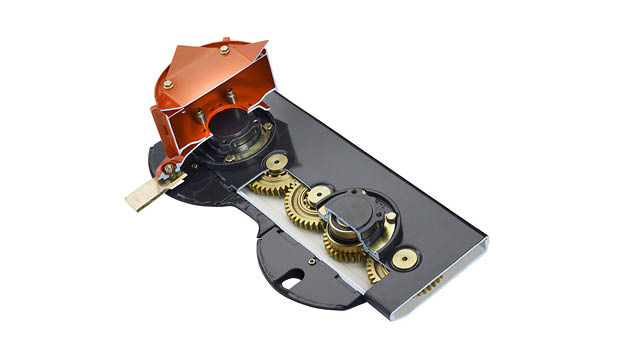

Fully Welded Cutterbar

Fully Welded Cutterbar

The Kubota cutterbar’s high cooling and lubrication efficiency oil pump system reduces wear and tear. The fully welded cutterbar with overlapping C-channels makes for a very strong design requiring low maintenance with no risk of loose bolts.

Counter-Rotating Discs

Counter-Rotating Discs

All Kubota mowers have an even number of counter-rotating discs. Apart from the immediate crop transport to the rear this system ensures that even in wet conditions no stripes of uncut forage are left in the field.

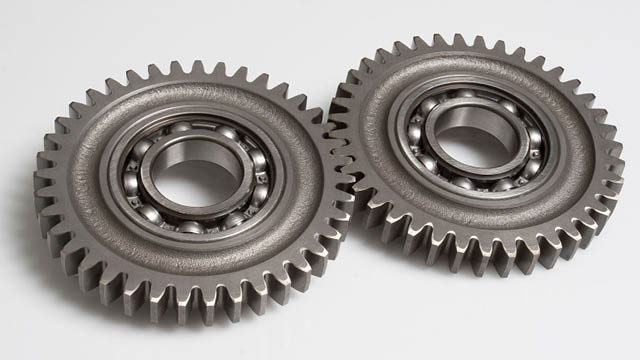

Low Noise Cutterbar

Low Noise Cutterbar

The Kubota cutterbar is designed for low maintenance and offers very quiet operation. Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy work day.

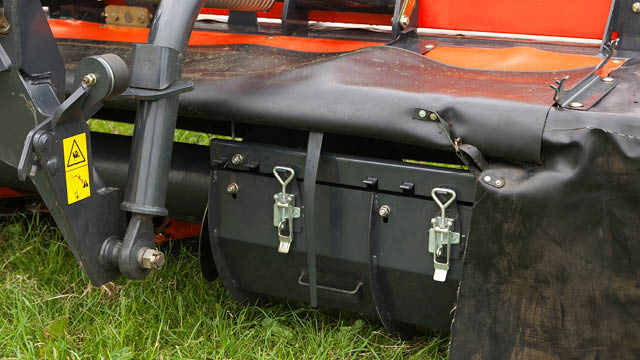

Adjustable Swath Version

Adjustable Swath Version

The Kubota DM4032S variant comes equipped with adjustable swathing as standard and 60.0 HP power requirement for a completely customizable mowing experience.

Excellent Vertical Adaptation

Excellent Vertical Adaptation

Just like the standard DM4032, DM4032S shows an impressive adaptation range of 1’5” (430mm) upwards and 8” (210mm) downwards, ensuring excellent cutting quality in difficult circumstances.

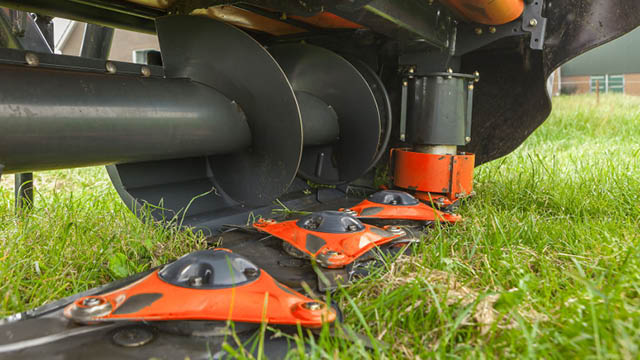

Auger

Auger

Swath width is easily changed by simply unlocking the swath plates and sliding them to the requested position.

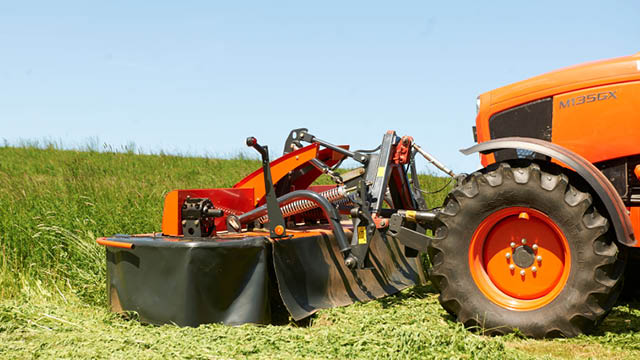

NonStop Breakaway System

NonStop Breakaway System

A BreakAway solution, integrated in the headstock, helps clear obstacles and protect the mower assembly.

Models

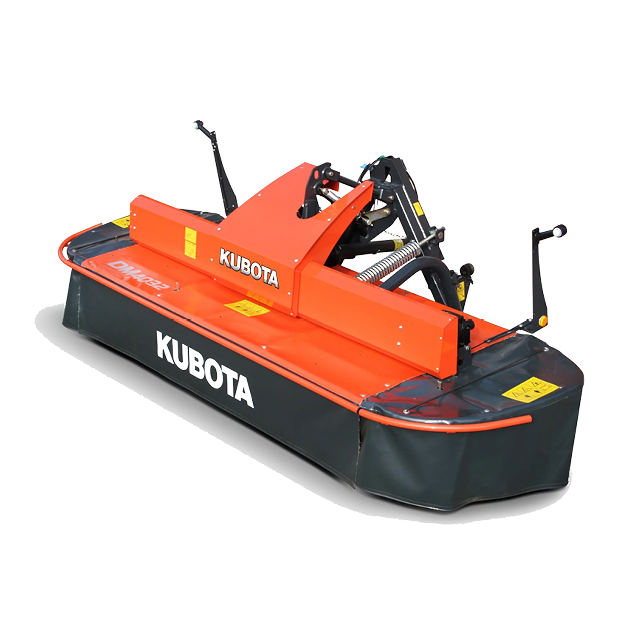

DM4032

DM4032

Type: Tractor-Mounted
Horsepower (min.): 55.0 HP
PTO: 1,000 rpm
Cutting Width: 10'6" (3.2m)
DM4032S

DM4032S

Type: Tractor-Mounted
Horsepower (min.): 60.0 HP
PTO: 1,000 rpm
Cutting Width: 10'6" (3.2m)
