Rakes

Centre Delivery

Kubota offers a range of cost-effective and highly productive, dual rotor centre delivery rakes. These rakes are mounted on sturdy, trailed axle frames providing floatation and field stability for even centre swath formation. Actively steered wheels, the TerraLink Quattro suspension system and hydraulic working width adjustment are standard features.

false

Features

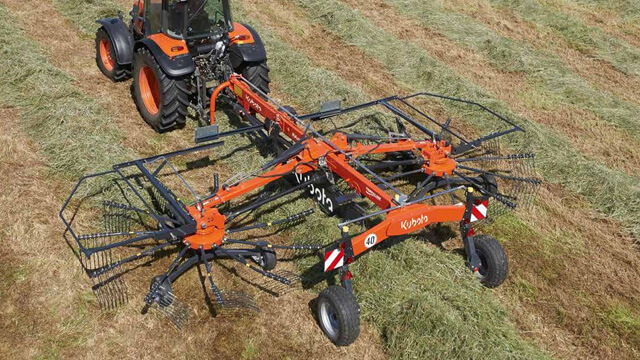

Kubota TerraLink Quattro

Kubota TerraLink Quattro

The Kubota Terralink Quattro ground following suspension system allows the tines to gently pick up the crop without contacting the ground. The trailed axle configuration provides stable transport down the road. It also gives superb stability on slopes for hassle-free operation.

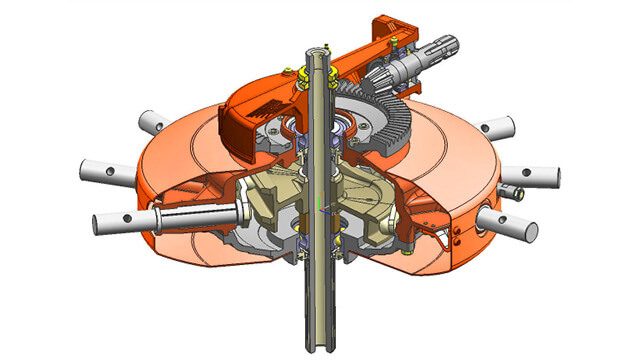

Durable CompactLine Gearbox

Durable CompactLine Gearbox

The Kubota CompactLine rakes feature oil-immersed cam discs and guide rollers. Also, the tine arm bearings are fully lubricated, and hence are absolutely maintenance-free. High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.

Exceptional Maneuverability

Exceptional Maneuverability

The rotors are lifted hydraulically for headlands turns. Active wheel steering allows the rake to go through a narrow gateway and make sharp turns on headlands up to 80°.

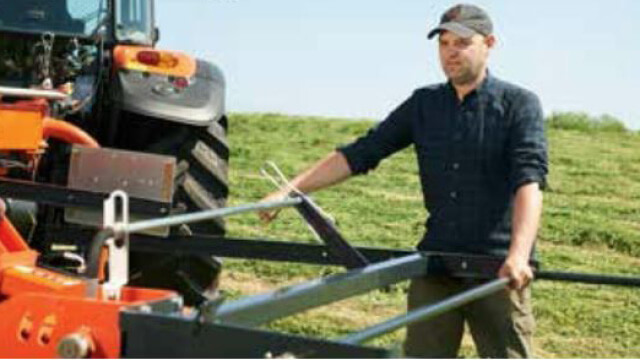

Adjustable Raking Height

Adjustable Raking Height

Tine height can be adjusted using a crank handle located on the front of the rotor. Cables and hoses are guided and secured to help avoid damage.

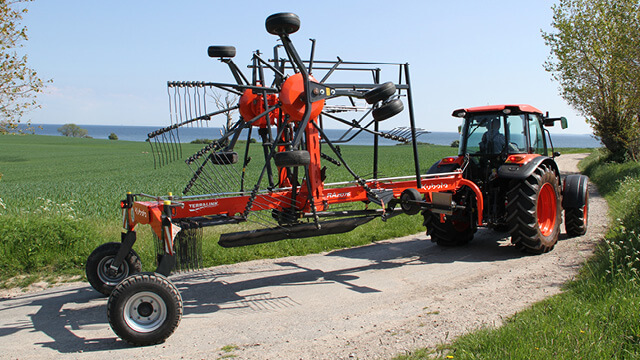

Easy Transport

Easy Transport

Rotors hydraulically folded up for transport and storage. To limit height further, the tine arms can be removed and secured on the mainframe and the swath board folds up automatically.

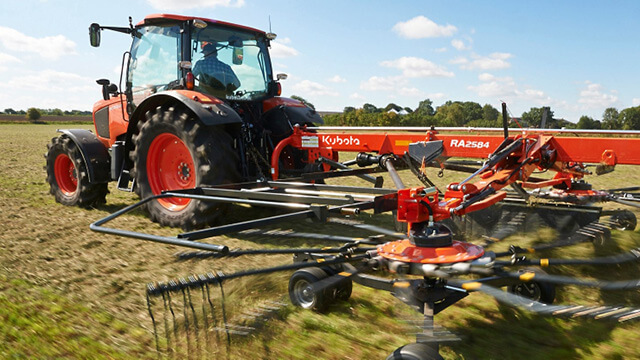

Tractor Cab Control

Tractor Cab Control

All functions can be controlled from the tractor cab. A simple cable is used to activate the standard hydraulic fold swath board and with a 20" lifting height / crop clearance, swaths are easily crossed.

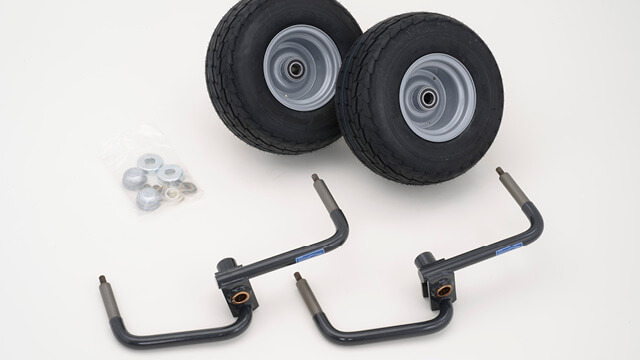

Tandem Axles

Tandem Axles

Each rake comes standard with 4-wheels per rotor to provide optimal rotor positioning. Tandem axles are available to improve stability for up to 6 wheels per rotor.

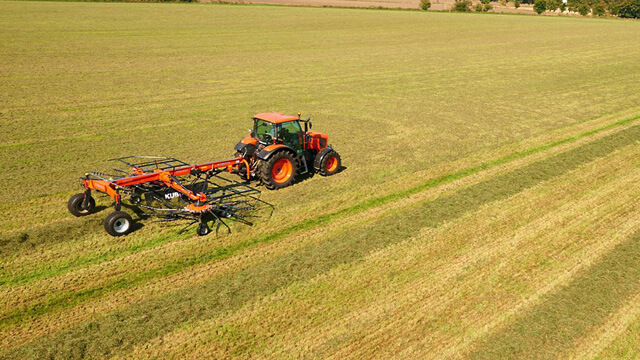

Flexible Working Width

Flexible Working Width

Kubota's line of centre delivery rakes offer a wide variety of working widths and swath size adjustability. RA2072: 20’3”-23’6” (6.20-7.20m) RA2076: 22’9”-25’6” (7.00-7.80m) RA2584: 24'9"-27'6" (7.60-8.40m)

ProLine Gearbox

ProLine Gearbox

A unique fully enclosed drive system design comprised of oil-immersed pinion and crown wheels making the entire system maintenance-free. The optimised shape of the curved disc allows the tine arms to lift higher, leaving a more uniform swath which ensures a faster drying process.

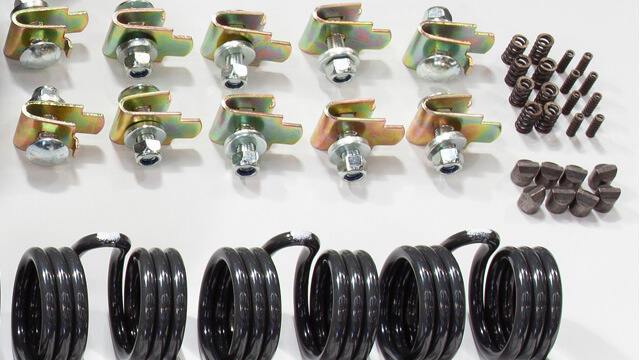

Tines & Tine Saver Clips

Tines & Tine Saver Clips

Both CompactLine and ProLine rakes feature durable tines and are available with optional "tine-saver" clips help prevent the loss of tines in the field in the event any are damaged. CompactLine: 0.35" (9mm), ProLine: 0.39" (10mm).

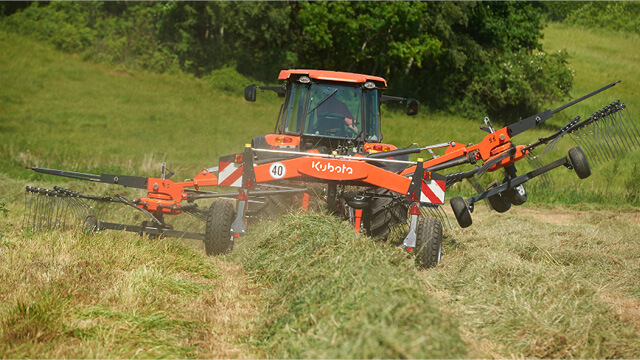

Single Rotor Activation

Single Rotor Activation

Dual rotor centre delivery rakes can be setup for single rotor activation to bypass obstacles or help finish a field without disturbing an adjacent windrow.

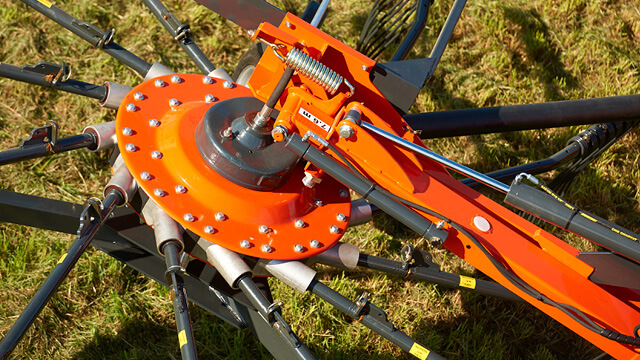

Curved Tine Arms

Curved Tine Arms

All Kubota rakes feature cranked tine arms for significantly cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop, and also gives a cleaner lift of the tine from the formed swath.

Models

RA2072

RA2072

Working Width: 20‘3“-23‘6“
Weight: 3616 lbs
Rotor Diameter: 9‘8“
Tine Diameter: 0.35"
Type: 2-Pt Hitch

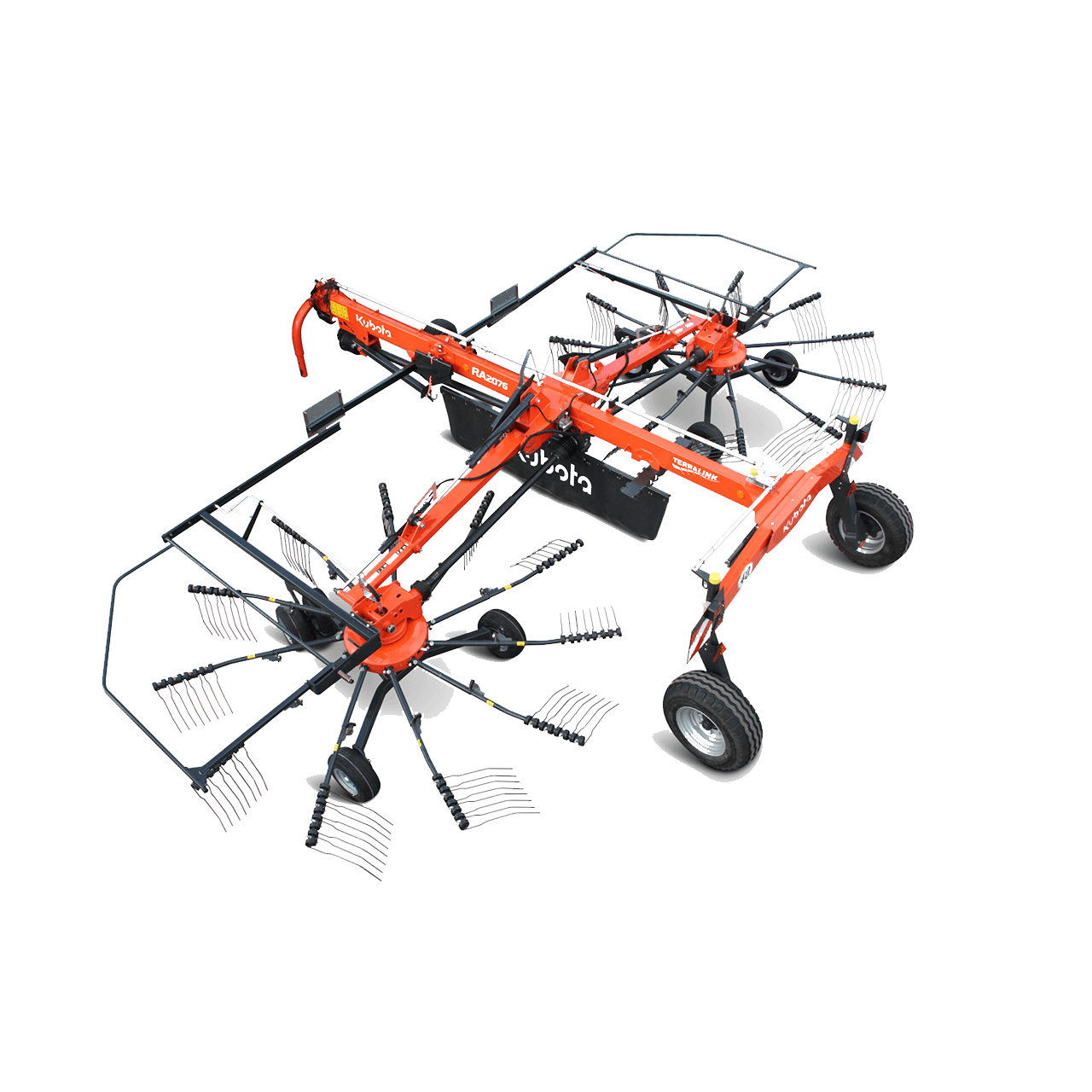

RA2076

RA2076

Working Width: 22‘9“-25‘6“
Weight: 3616 lbs
Rotor Diameter: 11‘
Tine Diameter: 0.35"
Type: 2-Pt Hitch

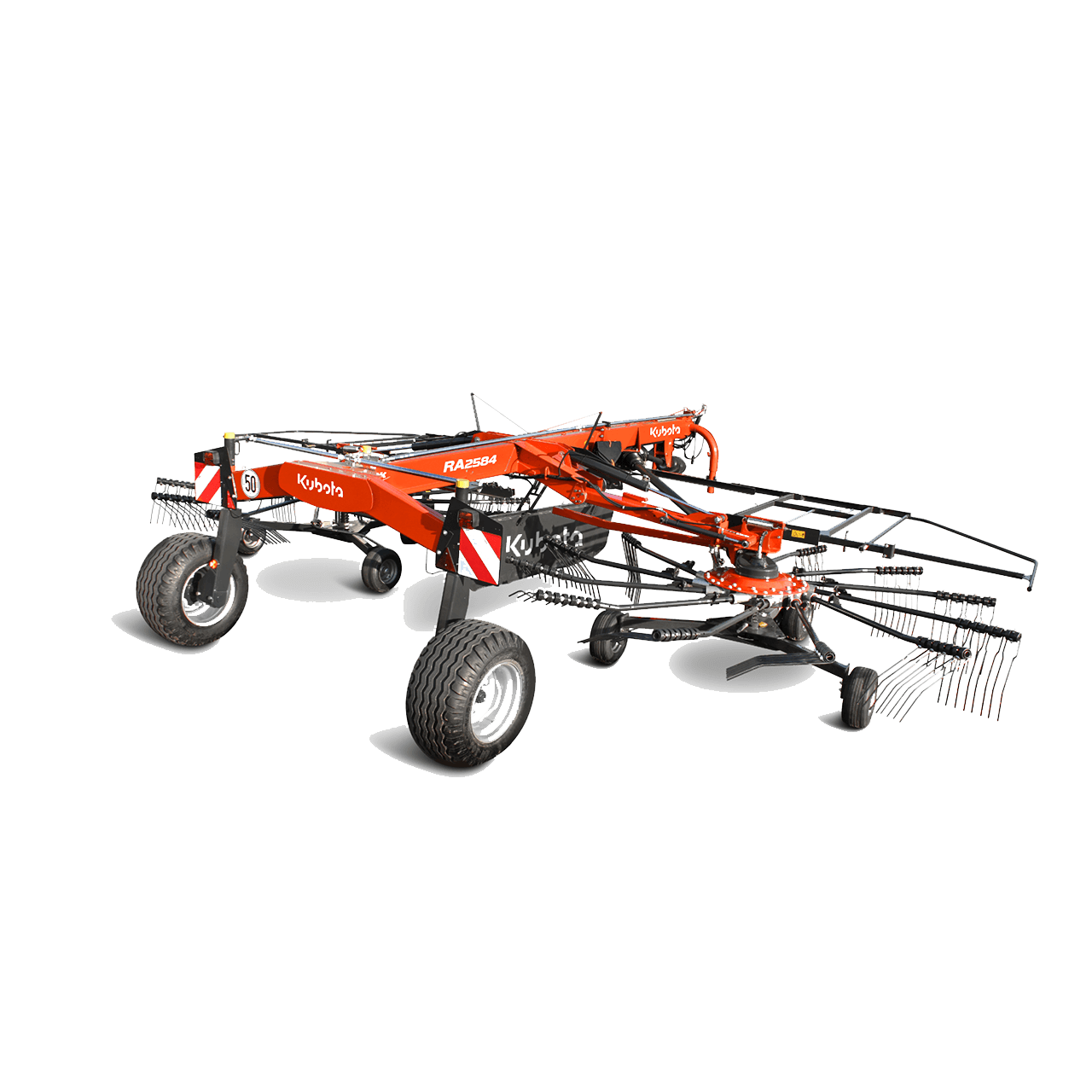

RA2584

RA2584

Working Width: 24‘9“-27‘6“
Weight: 5038 lbs
Rotor Diameter: 11‘9“
Tine Diameter: 0.35"
Type: 2-Pt Hitch
