High Speed Compact Discs
Time is valuable and, for farmers in Canada, often a luxury. The Kubota CD is your choice for a high-speed compact disc—now available in working widths up to 12m—helping you work faster and reclaim some of that valuable time. Designed for Controlled Traffic Farming and built for productivity, the CD range delivers full cutting performance, intensive mixing, perfect levelling, and reconsolidation. Available in rigid-mounted, mounted-fold, folding trailed, and large-scale trailed configurations, the Kubota CD gives you more choice, more working width, and more efficiency than ever.
Overview
From shallow seedbed preparation to intensive tillage for repairing ruts and compaction, the Kubota CD range delivers adaptable performance across a wide range of field conditions. The CD1001 series is ideal for light to medium soils, featuring 20.5" (520mm) discs for dependable shallow tillage. The CD2001 series adds a heavier frame and 23.6" (600mm) discs to tackle tougher soils and higher residue. With the addition of the CD20001T series—new 10m and 12m models—the CD lineup now supports broadacre operations and Controlled Traffic Farming. For added versatility, select models can be equipped with a Kubota integrated seeder for a true one-pass solution.
Features

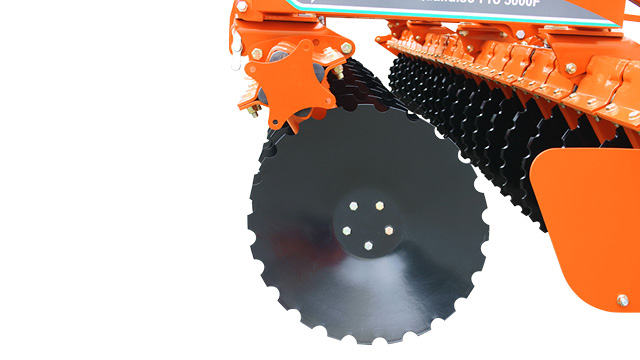

Conical discs
The conical discs on the CD provide a perfect cutting angle and ideal penetration even in tough conditions and maintain this high level of performance even as they wear. They are specially heat treated to make them the one of the hardest discs on the market but forgiving through impacts in stony conditions.
Maintenance-free bearings
High quality maintenance-free bearings with 5-lip seals are used on each disc. These bearings have been specially designed to carry heavy radial and axial loads and to provide you with worry-free operation even in extreme conditions. They are also used on all roller options for the CD to further reduce your maintenance time and costs.
Torsion springs
Rubber torsion springs on the individual disc arms absorb any shocks and keep the discs working where you need them. They also provide a forgiving auto-reset features when obstacles are encountered allowing the arms to rotate clear and then return to work for non-stop performance.
Lateral adjustment
The lateral adjustment feature on the CD2001 allows for front row of discs to be adjusted laterally as they wear maintaining perfect full-cut performance. By maintaining perfect full-cut performance the wear life of the discs are extended without impacting work quality. Longer cycles of disc replacement will save you time and money and lower your operating costs.

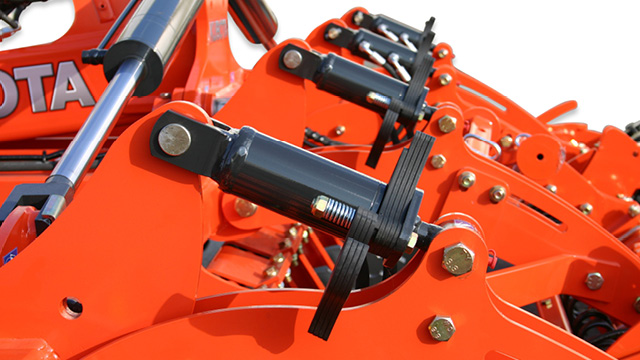

Field adjustments
All field adjustments on the Kubota CD's can be made without tools. Spacers on the hydraulically operated rollers allow simple machine leveling and depth positioning. Simple, intuitive and toolless field adjustments will save you time in the field.
Actipack Roller - for medium to heavy soils
The Actipack roller displays its superb working qualities especially on medium to heavy soils and also in wet, stony and sticky conditions thanks to the independent skids and adjustable knives.

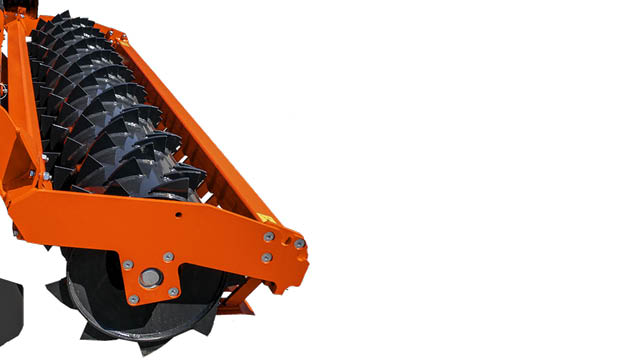

Tooth Packer Roller - for medium to heavy soils
Optimum performance on medium to heavy soils with a good carrying capacity and self-cleaning effect. Carbide scrapers provide effective cleaning and the scraper bar can be easily adjusted centrally.

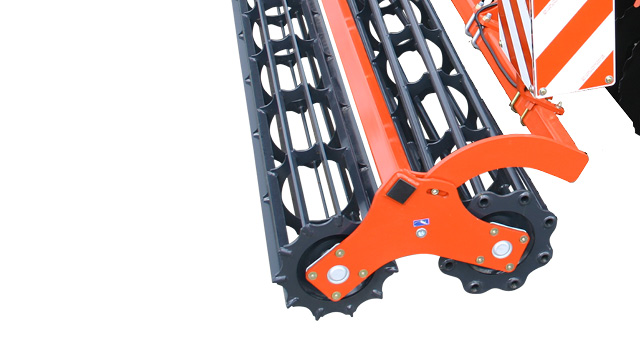

Single & Double cage rollers - for light to medium soils
10 round bars on the single cage roller ensures a good loading capacity and effective crumbling actions even in wet conditions. A combination of round bars and flat bars on the double cage roller ensures a good crumbling and levelling effect. It has a high carrying capacity and it is used for precise depth control.

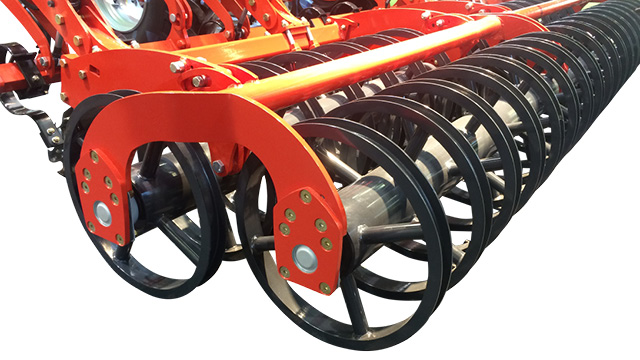

Actipress Twin - light to medium soils
The u-profile ensure high carrying/rolling capactiy and self-cleaning effect especially for light soils. Due to the fact that there is no direct compaction as it is made with the soil contact, plough pans are avoided.

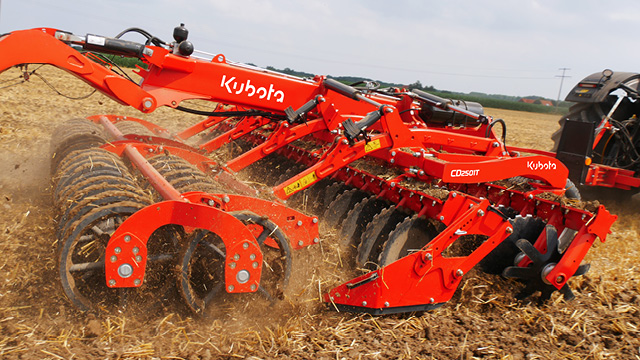

Lateral side deflectors
Lateral sides deflectors ensure the intensive mixing of soil and crop residues are kept within the working width of the CD to provide perfect leveling in all soil and residue conditions. They are parallelogram mounted so they follow the contours of the field and easily adjustable through a simple pin system so you save time.
Suspension system
Trailed CD's are equipped with a hydraulic suspension system. The dampening of loads in the field ensure the CD is always engaged at the right depth giving you a high volume of work and perfect level finish to your field. The suspension system is also active during road transport providing safe and smooth travel from field to field.

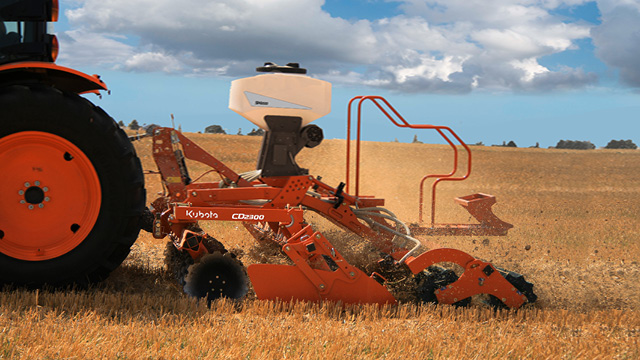

Integrated seeding option
The Kubota SH200 & SH500 seeders are available for all CD models and can be easily mounted providing as an integrated seeding solution. They transform the Kubota CD into a single-pass tillage and seeding unit. Ideally suited for renovating hay fields and pastures or the seeding of cover crops.

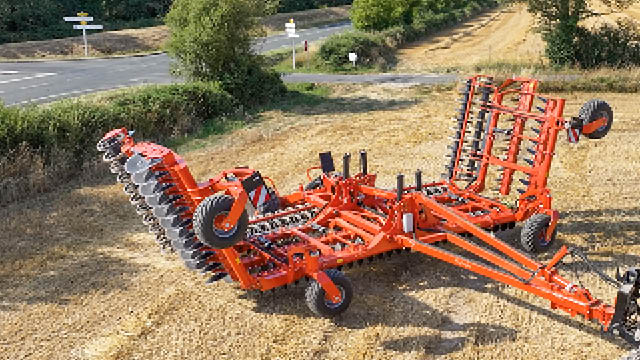

Sustainable precision farming

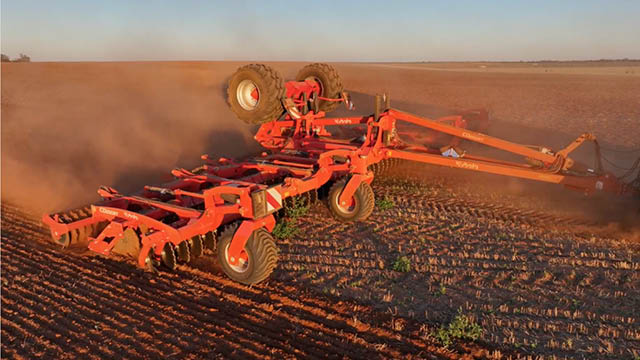

The new CD20001T series is built for big acreage, big productivity, and big expectations. With working widths of 10m and 12m, these trailed models are designed to match the needs of Controlled Traffic Farming systems. Each unit features Kubota’s Ground Contour System (GCS), with four independently mounted frame sections that apply consistent pressure for a level finish—even across uneven terrain. Engineered for high-speed operation and optimized soil contact, the CD20001T ensures even cultivation, excellent residue incorporation, and a flatter, cleaner surface pass after pass.
Models
CD1201
CD1251

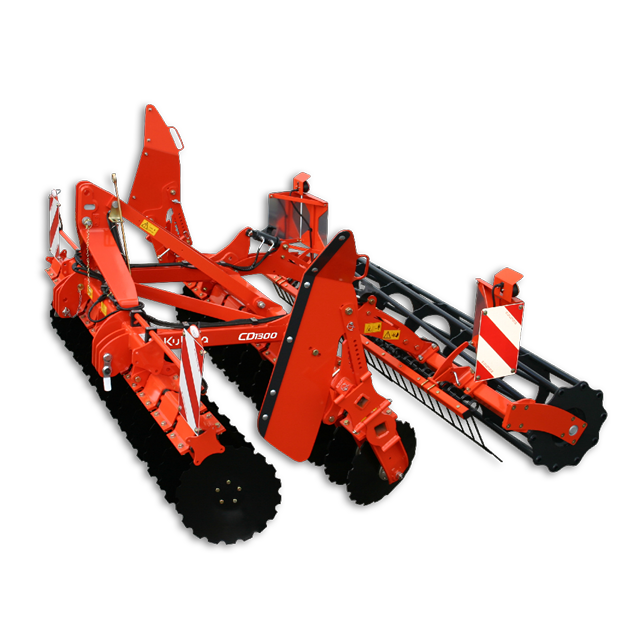

CD1301
CD1351
CD1401

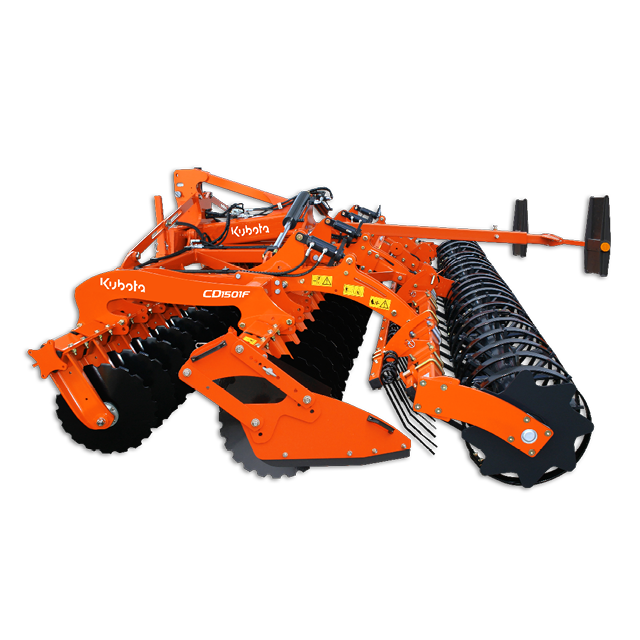

CD1401F
CD1501F
CD1601F
CD1401T

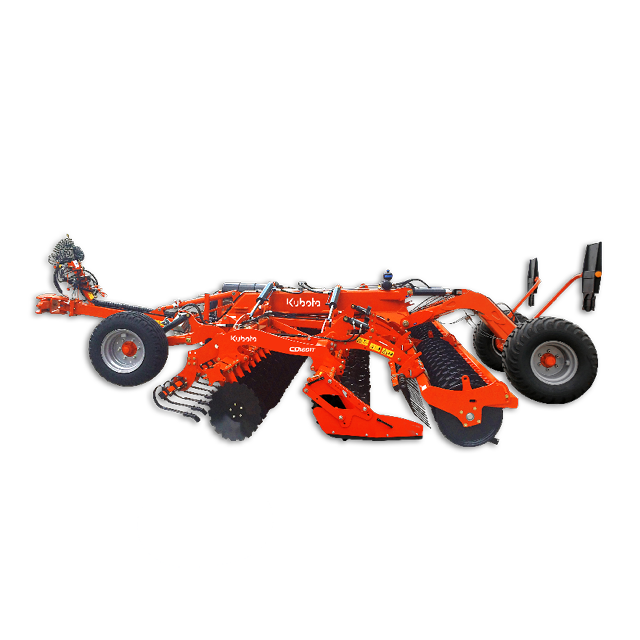

CD1501T
CD1601T
CD2201
CD2251
CD2301

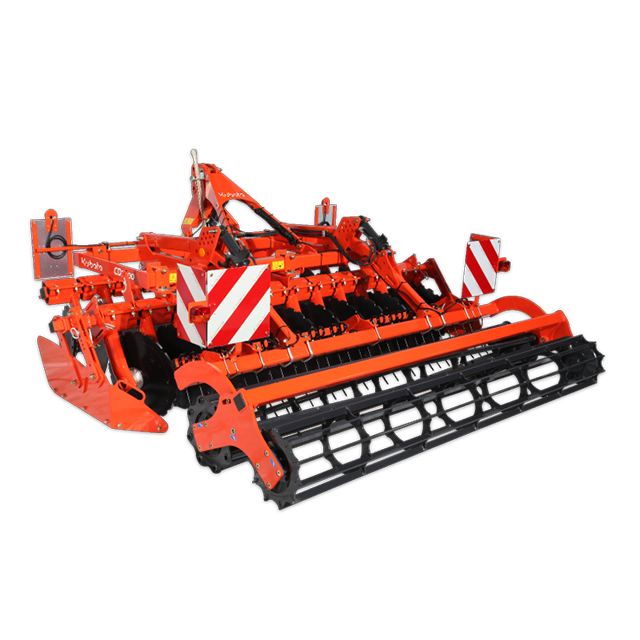

CD2351
CD2401
CD2401F
CD2501F

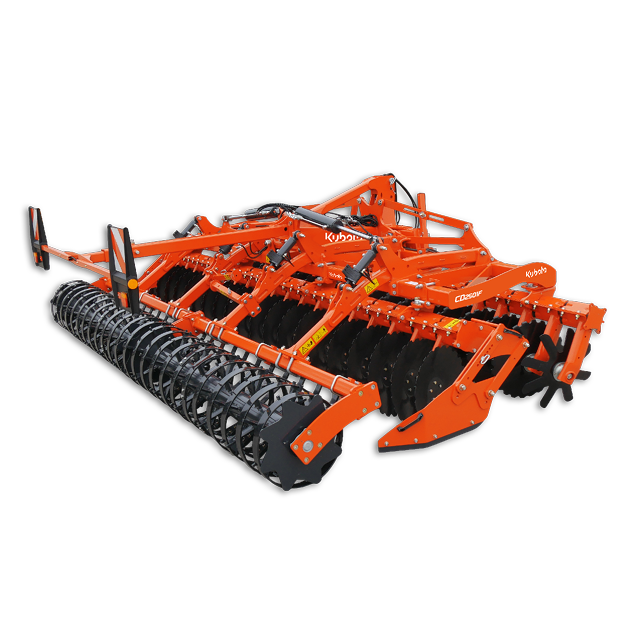

CD2601F
CD2401T

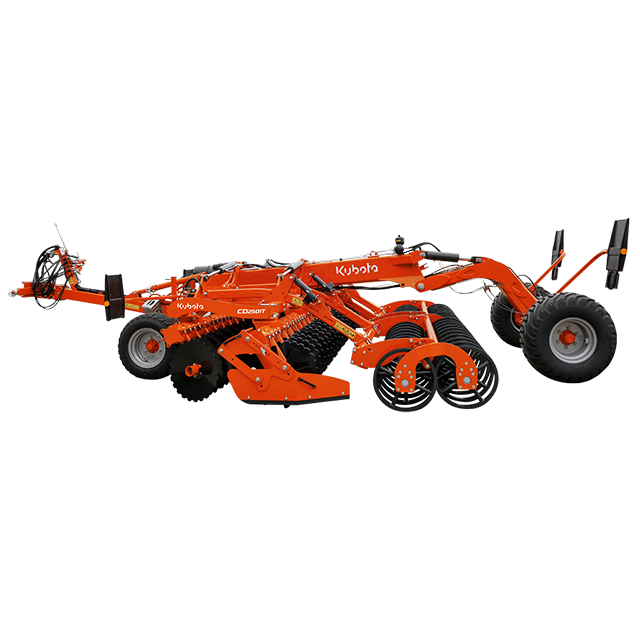

CD2501T

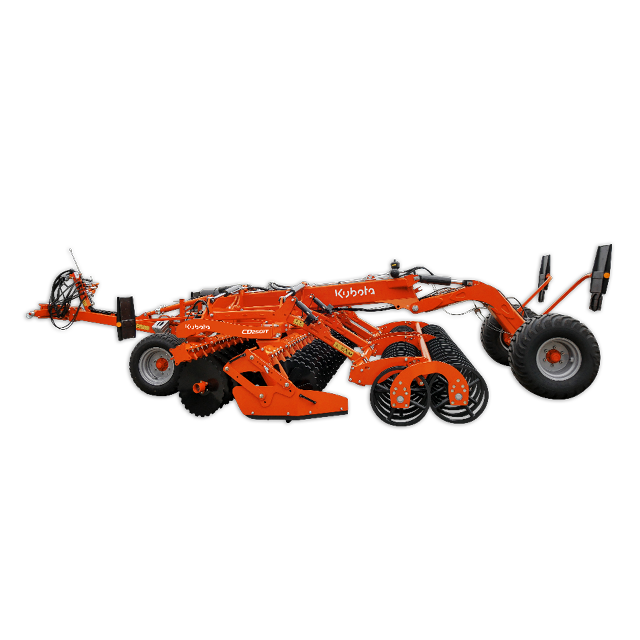

CD2601T
CD2701T

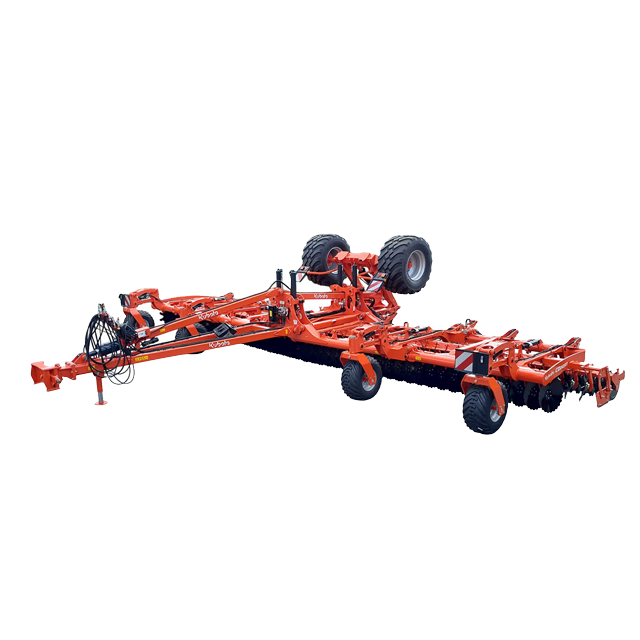

CD21031T
CD21231T
