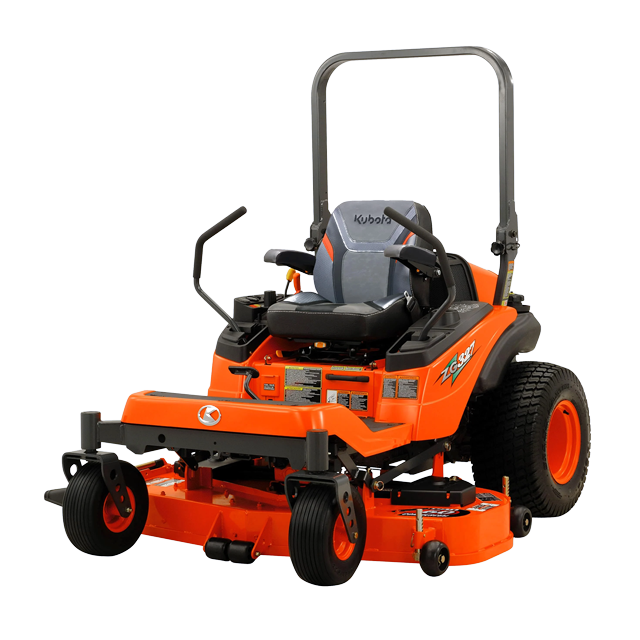

Zero Turn Mower

ZG327RPANC-3-60R

Get A Quote

Features

Durable Kubota engines

Durable Kubota engines

The ZG300 mowers offer gasoline Kubota made engines which are proven, high performing, efficent and reliable. These engines easily exceed the expectations of commerical landscapers and help take on any heavy mowing condition out there.

High capacity HST transmission

High capacity HST transmission

For superior durability, Kubota has incorperated an integral-type twin hydrostatic transmission. It's hermetically sealed structure requires no maintenance or belts to change.

Kubota gas engine

Kubota gas engine

The V-Twin Kubota gasoline engine delivers durability and productivity like no other. This reliable, air-cooled engine offers outstanding performance and quiet operation.

Pro commercial mower deck

Pro commercial mower deck

For outstanding cutting performance, the ZG300 decks offer a shaft driven mower deck with advanced baffle design that helps improve airflow to better discharge clippings, optimizing mower performance and quality of cut.

Easy maintenance

Easy maintenance

The seat lifts up for quick access to the HST, the hood lifts open for routine maintenance and access to the engine and the operator platform hatch along with Kubota's tilt-up feature and maintence lift kit for deck maintenance makes the ZG300 very easy to maintain.

Specs

Model name ZG327RPA-3-60
Model Kubota
Type Gasoline, air-cooled V-Twin with heavy-duty canister air filter
Displacement 768.0000 cc / 46.9000 cu. in.
Manufacturer Kubota KGZ770-E2-MA1
Safety starting system Key switch
Engine gross power 19.3880 kW / 26.0000 HP
Type Shaft drive
Clutch Hydraulic independent PTO clutch with wet multi disks
PTO brake Wet single disk
Overall length 2230.0000 mm / 87.8000 in
Wheelbase 1410.0000 mm / 55.5000 in
Top of Open Station 1915.0000 mm / 75.4000 in
With mower 1604.0000 mm / 63.1000 in
Without mower 1460.0000 mm / 57.5000 in
With mower 710.0000 kg / 1565.0000 lb
Top of Open Station - folded position 1555.0000 mm / 61.2000 in
Battery U1L-10 (12 V, RC: 22 min., CCA: 300, CA: 365)
Alternator 13.4 A at 12 Volts
Front 975.0000 mm / 38.4000 in
Rear 1150.0000 mm / 45.3000 in
System 2-HST w/ Gear reduction
System 2 hand levers
Forward 17.0000 km/h / 10.6000 mph
Reverse 8.5000 km/h / 5.3000 mph
Model RCK60R-331Z
Type Pro commercial--- Fabricated deck
Lift system Hydraulic
Mower deck depth 140.0000 mm / 5.5000 in
Belt type Multi-Belt
Mower deck thickness 4.2000 mm / 0.1700 in
Type anti-scalp rollers Swivel
Cutting width 1524.0000 mm / 60.0000 in
Number of blades 3.0000
Cutting height 127.0000 mm / 5.0000 in
Mounting method Quick joint, parallel linkage
Blade tip speed 5090.1600 m/min / 16700.0000 fpm
Fuel tank capacity 48.0000 l / 12.7000 gal
Hour meter Standard
Fuel gauge Electric
Engine stop system Key stop
Type Wet multi disks, foot applied, released
Front 15 x 6.0 - 6
Rear 26 x 12.0 - 12
Front Not-flat
