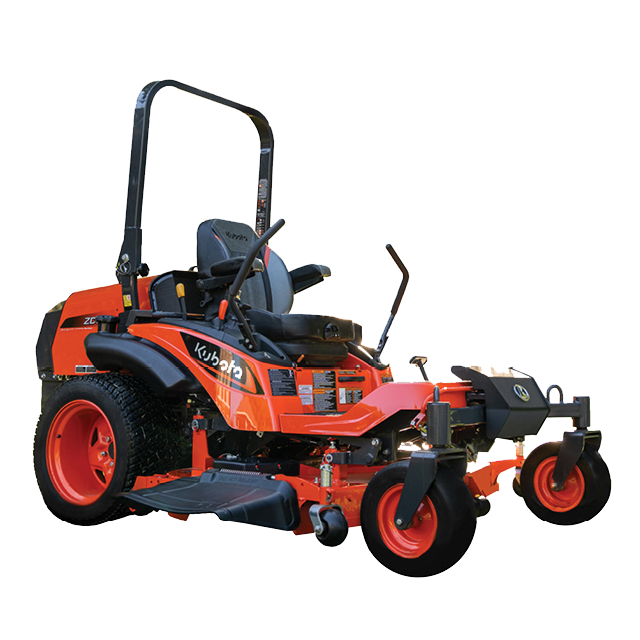

Zero Turn Mower

ZD1611RL-60R

Get A Quote

Features

Kubota diesel engine

Kubota diesel engine

The ZD1600 boasts a meticulously crafted Kubota diesel engine, renowned for its unwavering reliability during extended workdays. With an impressive 30.8 horsepower, this powerhouse ensures swift and efficient completion of tasks.

Side or rear discharge mower deck

Side or rear discharge mower deck

Choose where you want to discharge your grass clippings, whether you prefer from the side or rear. You can also add a mulch kit or operator-controlled discharge chute for full control over the clippings.

Easy-to-use LCD screen

Easy-to-use LCD screen

A bright LCD monitor provides clear engine status and displays the current state of the regeneration system in easy-to-understand text. It’s simple to use, modern in appearance, and easy to read in both sunny and dark conditions.

Front tie down points

Front tie down points

When transporting your ZD1600, it’s easier to secure to a trailer thanks to the tie down hooks found at the front and rear.

Power outlet

Power outlet

Get power on the go with the ZD1600, whether you’re charging your phone or powering an air pump.

Mow in total comfort

Mow in total comfort

Mount and dismount the ZD1600 with ease thanks to the full-flat operator platform, and get comfortable with its factory-equipped air ride seat and thick cushion mat which leads to less fatigue.

Foldable ROPS

Foldable ROPS

While the ROPS keeps you safe, it also folds down making it much easier and more convenient to store and transport the ZD1600.

Easy access

Easy access

We’ve made it simple to access important areas of the ZD1600 when it’s time for inspection or maintenance. The large hood opening makes the engine easy to access and a mower maintenance lift is also included.

Outstanding stability

Outstanding stability

Thanks to a lower center of gravity, wide stance, and low profile tires, the ZD1600 has incredible stability on a variety of terrains.

Oscillating front axle

Oscillating front axle

The ZD1600 mowers have the oscillating front axle for a smoother ride and increased operator control on rough and uneven terrain.

Specs

Model name ZD1611RL-60R
Model Kubota V1505-CR-TE5-ZD1
Type Diesel, liquid-cooled (4cyl.) w/ DPF
Displacement 1498.0000 cc / 91.4100 cu. in.
Manufacturer Kubota
Safety starting system Key switch
Engine gross power 22.9670 kW / 30.8000 HP
Type Shaft drive
Clutch Hydraulic independent PTO clutch with wet multi disks
PTO brake Wet single disk
Overall length 2684.7800 mm / 105.7000 in
Wheelbase 1560.0000 mm / 61.4000 in
Top of Open Station 2000.0000 mm / 78.7000 in
With mower 1600.0000 mm / 63.0000 in
Without mower 1510.0000 mm / 59.4000 in
With mower 955.0000 kg / 2105.0000 lb
Top of Open Station - folded position 1640.0000 mm / 64.6000 in
Battery - cold cranking amps Maintenance free battery : 12 V, CCA : 670A , RC : 115 min
Alternator Alternator : 75Amps 12Volts
Front 1064.0000 mm / 41.9000 in
Rear 1210.0000 mm / 47.6000 in
System 2-HST w/ Gear reduction
System 2-hand levers
Forward 17.0000 km/h / 10.6000 mph
Reverse 8.5000 km/h / 5.3000 mph
Model RCK60RP-1500Z
Type Kubota ProDeck
Lift system Hydraulic
Mower deck depth 140.0000 mm / 5.5000 in
Belt type Multi-belt
Mower deck thickness 4.2000 mm / 0.1600 in
Type anti-scalp rollers Swivel
Cutting width 1524.0000 mm / 60.0000 in
Number of blades 3.0000
Cutting height 127.0000 mm / 5.0000 in
Mounting method Quick joint, parallel linkage
Blade tip speed 5242.6500 m/min / 17200.0000 fpm
Seat Air-ride suspension seat with Reclining and lumbar support
Hour meter Standard
Fuel gauge Standard
Engine stop system Key stop
Water temperature indicator Standard
Fuel tank capacity 49.0000 l / 13.0000 gal
Type Wet multi disks, foot applied, released
Front 15 × 6.5 - 8
Rear 26 × 12.0 - 16
Front Smooth semi-pneumatic, Low profile tire
Rear Low profile tire
Battery voltage x capacity Maintenance free battery : 12 V, CCA : 670A , RC : 115 min
