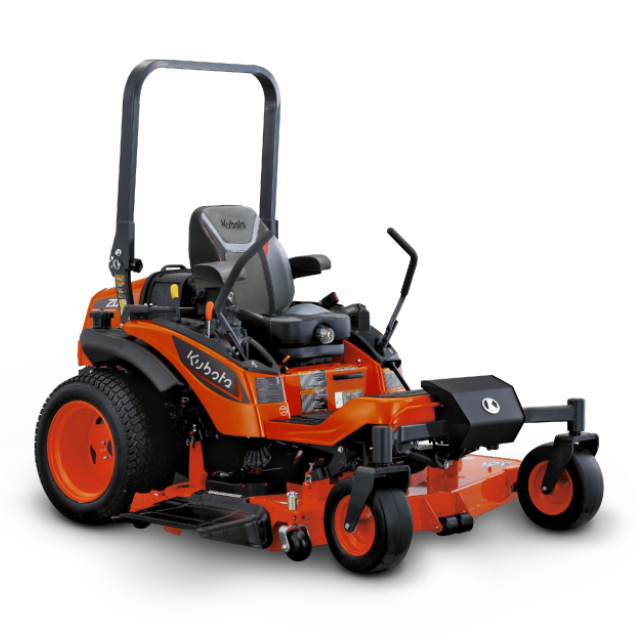

Zero Turn Mower

ZD1211RL-3-72R

Get A Quote

Features

Kubota diesel engine

Kubota diesel engine

The Kubota ZD series use their own proven, quality and reliable engine. These environmentally friendly, fuel efficient, powerful engines are industry known and pefectly matched for the ZD1200 series mowers.

ACS Deck (Aerodynamic Cutting System)

ACS Deck (Aerodynamic Cutting System)

The ZD1200 series has a ACS deck which optimizes cutting and discharge efficency. The improved airflow also results in reduced power consumption, work effciency, and increased fuel efficiency.

Outstanding stability

Outstanding stability

When combined with the ZD Series' long wheelbase wide, large-diameter rear tires, and fuel tanks mounted above the tires and below the seat, the result is outstanding stability on a variety of terrains.

Oscillating front axle

Oscillating front axle

The ZD1200 mowers have the oscillating front axle for a smoother ride and increased operator control on rough and uneven terrain.

New low profile tires

New low profile tires

The low profile rear tires improve the ZD's stability and traction and the wide tread help minimize turf damage.

Operator comfort

Operator comfort

The new ZD1200 series mowers have a adjustable suspension seat, adjustable armrest, higher backrest, and lumbar support to make operation comfortable for any operator no matter how long the day may be.

Specs

Clutch Hydraulic independent PTO clutch with wet multi disks
PTO brake Wet single disk
Type Shaft drive
Model RCK72RP-1200Z
Type Kubota ProDeck
Lift system Hydraulic
Mower deck depth 140.0000 mm / 5.5000 in
Belt type Multi-belt
Mower deck thickness 4.5000 mm / 0.1800 in
Type anti-scalp rollers Swivel
Cutting width 1829.0000 mm / 72.0000 in
Number of blades 3.0000
Cutting height 127.0000 mm / 5.0000 in
Mounting method Quick joint, parallel linkage
Blade tip speed 5486.4000 m/min / 18000.0000 fpm
Seat Deluxe suspension seat with Reclining and lumbar support
Hour meter Standard
Fuel gauge Standard
Engine stop system Key stop
Water temperature indicator Standard
Fuel tank capacity 49.0000 l / 13.0000 gal
Engine gross power 17.3700 kW / 23.3000 HP
Safety starting system Key switch
Manufacturer Kubota
Displacement 1123.0000 cc / 68.5300 cu. in.
Type Diesel, liquid-cooled (3cyl.)
Model Kubota D1105-E4-ZD-2
With mower 810.0000 kg / 1786.0000 lb
Top of Open Station - folded position 1640.0000 mm / 64.6000 in
Without mower 1540.0000 mm / 60.6000 in
With mower 1910.0000 mm / 75.2000 in
Top of Open Station 2000.0000 mm / 78.7000 in
Wheelbase 1560.0000 mm / 61.4000 in
Overall length 2380.0000 mm / 93.7000 in
Type Wet multi disks, foot applied, released
Front 15 × 6.5 - 8
Rear 26 × 12.0 - 16
Front Smooth semi-pneumatic, Low profile tire
Rear Low profile tire
Alternator AC Dynamo: 14 Amps @ 14 Volts
Battery Maintenance free battery : 12 V, CCA : 430A , RC : 80 min
Reverse 8.5000 km/h / 5.3000 mph
Forward 17.0000 km/h / 10.6000 mph
System 2-hand levers
System 2-HST w/ Gear reduction
Rear 1210.0000 mm / 47.6000 in
Front 1250.0000 mm / 49.2000 in
Model name ZD1211RL-3-72R
