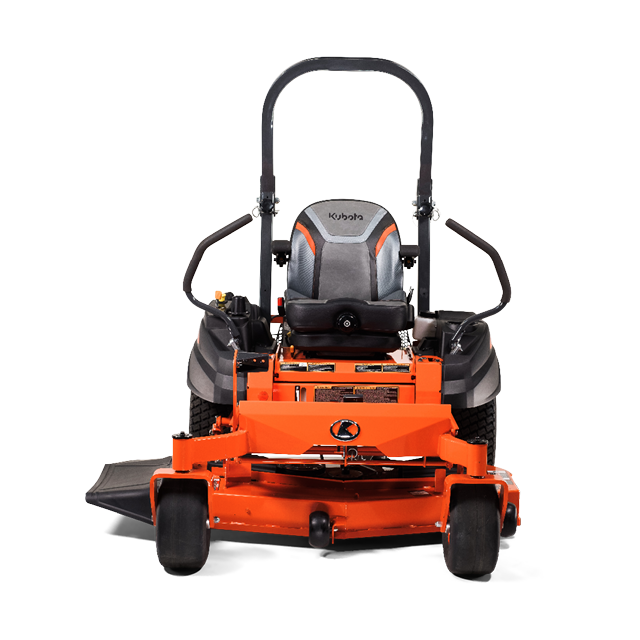

Zero Turn Mower

Z422KW-54

Get A Quote

Features

Commercial-grade mowing at home

Commercial-grade mowing at home

Powered by a Kawasaki FS carbureted or FT EFI engine and Hydro-Gear 3600 transmission, the Z400’s commercial-grade drivetrain offers strength and reliability for years to come. Get unmatched power and efficiency with performance built to last.

Sit back and mow in comfort

Sit back and mow in comfort

Say goodbye to uncomfortable mowing. The Z400’s deluxe high-back suspension seat and patented vibration-reducing technology ensures a smooth, fatigue-free ride.

Tailored to you for maximum control

Tailored to you for maximum control

The Z400 was designed with your comfort in mind, with fully adjustable controls for maximum ergonomic support. Operators can slide their seat forward or backward up to four inches, as well as adjust the height and sensitivity of the control levers in minutes.

One push deck lift

One push deck lift

The K-Lift system allows for quick and effortless adjustment of the cutting height. Simply press the pedal, turn the adjustment dial to the desired cutting height and start mowing!

Precision crafted for a flawless cut

Precision crafted for a flawless cut

The Z400’s 5” deep, 10 gauge fabricated mower deck is engineered for strength and durability, while delivering consistently high-quality cuts. Make your lawn the envy of the neighbourhood every time you mow.

Built for easy maintenance

Built for easy maintenance

Keeping your Z400 in peak condition is simple. You can quickly perform maintenance and cleaning with tool-less mower deck access and a flip-up seat. No need to worry about greasing with the sealed spindle and caster bearings.

Everything you need, within reach

Everything you need, within reach

The Z400’s operator station is designed for convenience. With a built-in cupholder, 12V charger, storage pocket, and intuitive controls, everything you need is at your fingertips—keeping you comfortable and productive throughout the day. A. Deluxe Suspension Seat B: Spacious foot pan C: Cupholder D: 12V Outlet E: Intuitive Controls F: 26L Fuel tank

Specs

Model name Z422KW-54
Model GH7301V
Type Air cooled 2 cylinders gasoline engine
Make Kawasaki
Displacement 726.0000 cc / 44.3000 cu. in.
Safety starting system Key switch
Engine gross power 17.8968 kW / 24.0000 HP
Type Belt drive
Clutch Electric clutch
PTO brake Dry disc
Overall length 2055.0000 mm / 80.9000 in
Wheelbase 1255.0000 mm / 49.4000 in
Top of Open Station 1772.0000 mm / 69.8000 in
With mower 1710.0000 mm / 67.3000 in
Without mower 1236.0000 mm / 48.7000 in
With mower 416.0000 kg / 918.0000 lb
Top of Open Station - folded position 1265.0000 mm / 49.8000 in
Battery U1 (12V, RC : 45min, CCA : 300, CA : 410)
Generator 15.0000 A / 15.0000 A
Front 944.0000 mm / 37.2000 in
Rear 1000.0000 mm / 39.4000 in
Type Hydro-Gear® Commercial ZT3600®
System 2-HST w/Gear reduction
System 2-hand lever
Forward 16.0000 km/h / 10.0000 mph
Reverse 8.0000 km/h / 5.0000 mph
Model RCK54P-400Z
Type Side discharge
Lift system Mechanical / Foot pedal
Mower deck depth 127.0000 mm / 5.0000 in
Belt type Belt drive
Mower deck thickness 3.4000 mm / 0.1350 in
Type anti-scalp rollers Rigid
Cutting width 1372.0000 mm / 54.0000 in
Number of blades 3.0000
Cutting height 127.0000 mm / 5.0000 in
Mounting method Parallel linkage
Blade tip speed 5699.7600 m/min / 18700.0000 fpm
Seat Deluxe seat w/3 inch stroke suspension
Hour meter Standard
Fuel gauge Sight window
Engine stop system Key stop
Fuel tank capacity 25.7000 l / 6.8000 gal
Type Cog style parking lock / Foot pedal
Front 13 × 6.5 – 6
Rear 24 × 9.5 –14
Front Smooth pneumatic
Rear Low profile tire
