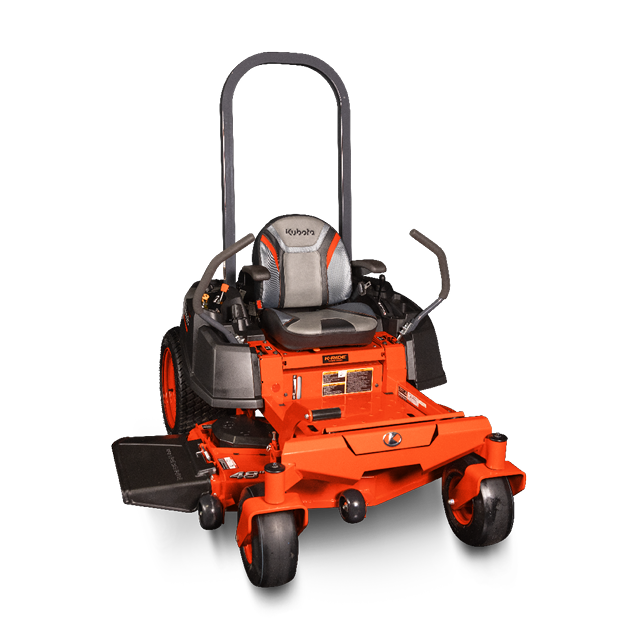

Zero Turn Mower

Z252KH-54

Get A Quote

Features

Pro cutting performance

Pro cutting performance

With its heavy-duty 10-gauge fabricated mower deck, you get high cut quality and maximum productivity – which means commercial-grade results.

Serious power

Serious power

The Z200 is powered by a Kawasaki or Kohler engine that’s easy to maintain and has up to 26 hp. The result is an outstanding zero-turn mowing performance that can handle tough grass conditions and keep moving at speeds up to 12.9 kph.

K-Lift

K-Lift

Adjusting your cutting height is effortless and easy with the K-Lift mechanical one push deck lift pedal. Step 1 - Push the pedal to raise the deck / Step 2 - Use the dial to adjust the cutting height / Step 3 - Push and release the pedal again to lower the deck.

Mow in total comfort

Mow in total comfort

Get comfortable with adjustable high back suspension seat, cupholders, push button start, storage compartments and plenty of legroom. Your comfort is further enhanced with ergonomic controls and class-leading vibration reduction to help you power through long days.

User-friendly controls

User-friendly controls

Enjoy pinpoint control via an ergonomic layout with easy-to-read indicators, a cutting height adjustment dial you can set to precise ¼” increments and dual control levers that are ideal for trimming around tight spaces.

Lasting durability

Lasting durability

The Kubota Z200 Series models are easy to maintain and are built with quality materials to keep you mowing for years to come.

Ease of maintenance

Ease of maintenance

Easily maintain and clean the mower deck on the Z200 by removing the floor pan and belt guards without tools.

3 cutting sizes available

3 cutting sizes available

42” cutting width for the Kubota Z232KW-42 model, 48” for the Kubota Z242KH-48 & Kubota Z242KW-48 models and 54” for the Kubota Z252KH-54 & Kubota Z252KW-54 models.

High quality tires

High quality tires

Commercial size front caster wheels and wide-tread rear tires deliver better traction and weight distribution to protect the lawn.

Specs

Model name Z252KH-54
Model Kohler ® KT Series"
Type Carburated air cooled 2 cylinders gasoline engine
Displacement 747.0000 cc / 45.6000 cu. in.
Safety starting system Push Button w/ keyfob
Engine gross power 19.3900 kW / 26.0000 HP
Type Belt drive
Clutch Electric clutch
PTO brake Dry disc
Overall height 1855.0000 mm / 73.0000 in
Overall length 2006.0000 mm / 79.0000 in
Wheelbase 1195.0000 mm / 47.0000 in
With mower 1710.0000 mm / 67.3000 in
Without mower 1207.0000 mm / 47.5000 in
With mower 375.0000 kg / 827.0000 lb
Battery - cold cranking amps U1 (300CCA, 410CA)
Fuel type Gasoline
Front 826.0000 mm / 32.5000 in
Rear 964.0000 mm / 38.0000 in
Front 13 × 6.5 – 6 pneumatic
Rear 22 × 10 – 14
Type Hydro-Gear® ZT-3100
System 2-HST w/ Gear reduction
System 2-hand lever
Forward 12.9000 km/h / 8.0000 mph
Reverse 6.4000 km/h / 4.0000 mph
Model RCK54P-200Z
Type Side discharge
Lift system Mechanical / Foot pedal K-LIFT Ratchet System
Mower deck depth 127.0000 mm / 5.0000 in
Belt type Belt drive
Mower deck thickness 3.4000 mm / 0.1350 in
Type anti-scalp rollers Rigid
Cutting width 1371.6000 mm / 54.0000 in
Number of blades 3.0000
Mounting method Parallel linkage
Blade tip speed 5516.8800 m/min / 18100.0000 fpm
Cutting height (min.) 38.1000 mm / 1.5000 in
Cutting height (max) 114.3000 mm / 4.5000 in
Seat 21" high back seat w/ armrests
Hour meter Hour meter w/ maintenance indicator
Fuel gauge Sight window
Fuel tank capacity 16.3000 l / 4.3000 gal
Seat suspension OPT
Type Cog style parking lock / Hand lever
