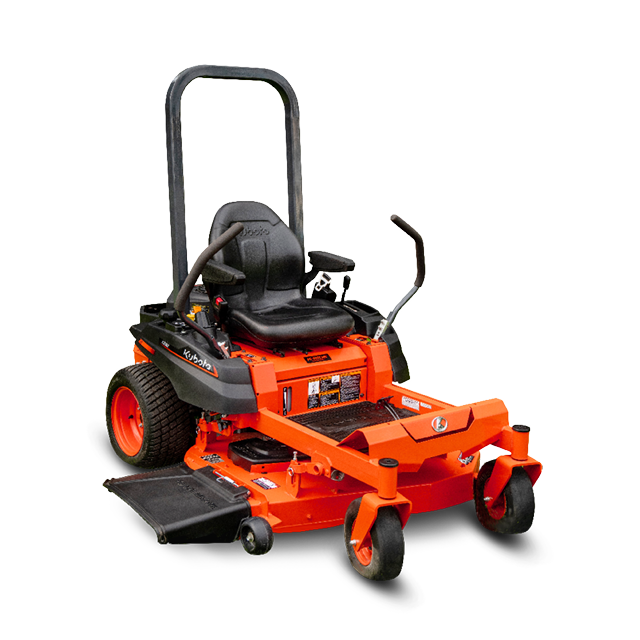

Zero Turn Mower

Z232KW-42

Get A Quote

Features

User-friendly controls

User-friendly controls

Enjoy pinpoint control via an ergonomic layout with easy-to-read indicators, a cutting height adjustment dial you can set to precise ¼” increments and dual control levers that are ideal for trimming around tight spaces.

Lasting durability

Lasting durability

The Kubota Z200 Series models are easy to maintain and are built with quality materials to keep you mowing for years to come.

3 cutting sizes available

3 cutting sizes available

42” cutting width for the Kubota Z232KW-42 model, 48” for the Kubota Z242KH-48 & Kubota Z242KW-48 models and 54” for the Kubota Z252KH-54 & Kubota Z252KW-54 models.

Pro cutting performance

Pro cutting performance

With its heavy-duty 42” 10-gauge fabricated mower deck, you get high cut quality and maximum productivity – which means commercial-grade results.

Serious power

Serious power

The Z232KW-42 is powered by a Kawasaki engine that’s easy to maintain and has 21.5 hp. The result is an outstanding zero-turn mowing performance that can handle tough grass conditions and keep moving at speeds up to 10.5 kph.

Foot Operated Deck Lift

Foot Operated Deck Lift

Adjusting your cutting height is easy with the one push deck lift pedal. Step 1 - Push the pedal to raise the deck / Step 2 - Use the dial to adjust the cutting height / Step 3 - Push and release the pedal again to lower the deck.

Mow in total comfort

Mow in total comfort

Get comfortable with adjustable high back seat, armrests, storage compartments and plenty of legroom. Your comfort is further enhanced with ergonomic controls and thick rubber mat which reduces vibration to help you power through long days.

Specs

Model Kawasaki ® FR Series
Safety starting system Key switch
Engine gross power 16.0300 kW / 21.5000 HP
Displacement 726.0000 cc / 44.3000 cu. in.
Type Air cooled 2 cylinders
Battery - cold cranking amps U1 (300CCA, 410CA)
Without mower 1076.0000 mm / 42.4000 in
With mower 292.0000 kg / 643.0000 lb
With mower 1400.0000 mm / 55.1000 in
Wheelbase 1236.0000 mm / 48.7000 in
Overall length 1890.0000 mm / 74.4000 in
Overall height 1693.0000 mm / 66.7000 in
Front 616.0000 mm / 24.3000 in
Rear 885.0000 mm / 34.8000 in
Front 11 × 4 – 5 pneumatic
Rear 18 × 7.5 – 10
Type Hydro-Gear® ZT-2200
System 2-HST w/ Gear reduction
System 2-hand lever
Forward 10.5000 km/h / 6.5000 mph
Reverse 6.4000 km/h / 4.0000 mph
Clutch Electric clutch
PTO brake Dry disc
Type Belt drive
Model RCK42P-122Z
Type Side discharge
Lift system Mechanical
Mower deck depth 114.0000 mm / 4.5000 in
Belt type Belt drive
Mower deck thickness 3.4000 mm / 0.1350 in
Type anti-scalp rollers Rigid
Cutting width 1066.8000 mm / 42.0000 in
Number of blades 2.0000
Mounting method Parallel linkage
Blade tip speed 5394.9600 m/min / 17700.0000 fpm
Cutting height (min.) 38.1000 mm / 1.5000 in
Cutting height (max) 107.9500 mm / 4.2500 in
Fuel tank capacity 13.6000 l / 3.6000 gal
Hour meter Hour meter
Fuel gauge Sight window
Seat suspension N/A
Type Cog style parking lock / Hand lever
Fuel type Gasoline
Model name Z232KW-42
