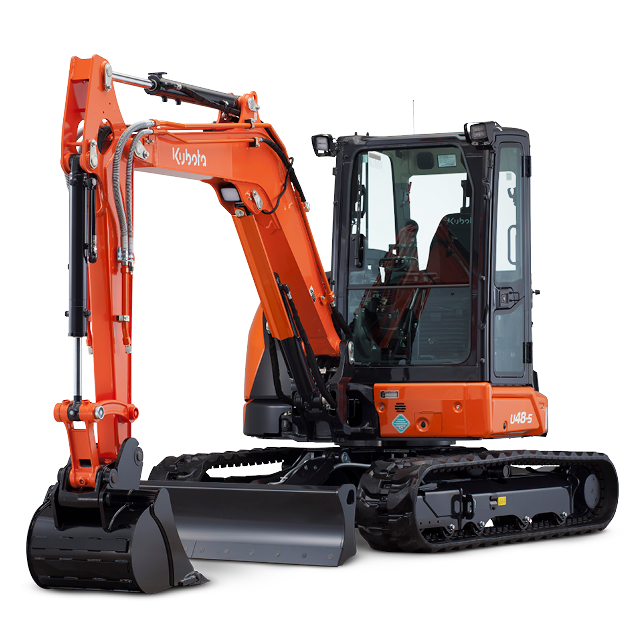

Mini-Excavator

U48-5

Get A Quote

Features

Large comfortable Cab to suit all operators

Large comfortable Cab to suit all operators

Not all operators are the same size. That’s why the interior of the Kubota U48-5 is generously-sized, with an adjustable seat and available air ride seat and sunshade. Plus, there’s more headroom and floor space along with a slim, ergonomically positioned right meter panel. Low Noise* World-class noise reduction technology helps protect the operator’s hearing as well as provides a more comfortable working environment for the operator. Rear engine noise is reduced by a metal partition between the engine and the cab. The floor plate is also thicker to reduce noise from beneath the cab. The U48-5 Cab noise level is 74 dBa at the ear.

Available 5 auxiliary flow settings

Available 5 auxiliary flow settings

Go with the flow: there are 5 auxiliary flow settings available on the U48-5, to match the attachment performance with the electronic return-to-tank for one-way flow attachments such as the Kubota Hydraulic Breaker. Dual Auxiliaries are standard equipment that allow thumb and attachment to be plumbed at same time.

9500 lbs of bucket breakout force

9500 lbs of bucket breakout force

Get the power to get the job done. With performance-matched buckets to help provide 9500lbs. of bucket breakout force, even tough digging jobs can be completed quickly and efficiently.

Keyless start option

Keyless start option

When time is precious, it’s the little things that make the difference. The U48-5 offers a keyless start option, with the ability to program 10 different codes so every operator can have their own.

Increased visibility

Increased visibility

Visibility is critical when operating equipment. With more glass in the front window, skylight, and left and right windows, operators get a wider viewpoint.

Optional - Rear-view camera. See the difference.

Optional - Rear-view camera. See the difference.

An optional rear-view camera provides increased visibility to the rear of the compact excavator by displaying the view on the 7” LCD screen in the cab.

Angle blade optional hydraulic angle blade*

Angle blade optional hydraulic angle blade*

Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

LED work lights with turn-off delay

LED work lights with turn-off delay

The LED work lights can be programed to turn off 30 seconds to 2 minutes after the engine has stopped. This allows the operator to exit the machine and walk away safely under full illumination.

Specs

Model name U48-5
Model D1803-CR-TE5-BH3
Make Kubota
Rated engine speed 2200.0000 rpm / 2200.0000 rpm
Displacement 1826.0000 cc / 111.4000 cu. in.
Output (SAE J1995 gross) 30.1000 kW / 40.4000 HP
Output (SAE J1349 net) 29.0000 kW / 38.9000 HP
Pump capacity 118.8000 l/min / 31.4000 gpm
Bucket 4220.0000 kgf / 9304.0000 lbf
Arm 2406.0000 kgf / 5304.0000 lbf
Aux 1 65.0000 l/min / 17.2000 gpm
Aux 2 37.0000 l/min / 9.8000 gpm
Ground clearance 310.0000 mm / 12.0000 in
Overall height 2550.0000 mm / 100.0000 in
Overall length 5355.0000 mm / 210.0000 in
Overall width 1960.0000 mm / 77.0000 in
Width 1960.0000 mm / 77.0000 in
Height 410.0000 mm / 16.0000 in
Maximum lift above ground 440.0000 mm / 17.0000 in
Maximum drop below ground 405.0000 mm / 15.9000 in
Including operator’s weight @ 165 lbs. 4920.0000 kg / 10848.0000 lb
Type Rubber/Steel
Low 2.8000 km/h / 1.7000 mph
High 4.9000 km/h / 3.0000 mph
Maximum traction force 5440.0000 kgf / 11993.0000 lbf
Crawler length 2500.0000 mm / 98.0000 in
Shoe width 400.0000 mm / 15.7000 in
Ground contact pressure 0.2840 kg/cm2 / 4.0000 psi
Tumbler distance 1990.0000 mm / 78.0000 in
Unit swing speed 9.2000 rpm / 9.2000 rpm
Left 70.0000 deg / 70.0000 deg
Right 53.0000 deg / 53.0000 deg
Reservoir 40.0000 l / 10.6000 gal
System 76.0000 l / 20.1000 gal
Reservoir 66.0000 l / 17.4000 gal
Type Canopy/Cab
