Mini-Excavator

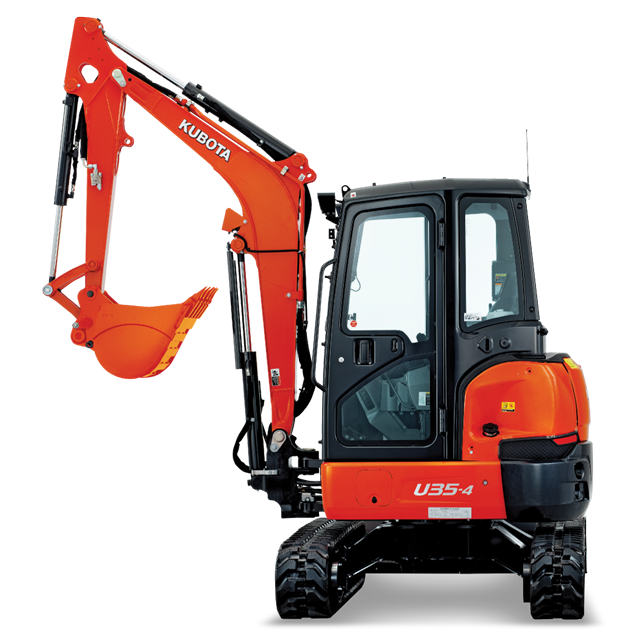

U35-4

Get A Quote

Features

Tight tail swing

Tight tail swing

Tight Tail Swing with its counterweight protruding a mere 1.9 inches, the U35-4's tight tail swing proves to be highly versatile when undertaking operations wherever space is confined, eliminating costly damage to the engine hood and side panels. For added safety and improved operator visibility, the engine hood is set 5 inches inside the edge of the counterweight.

Comfort & convenience

Comfort & convenience

A spacious operator station designed for greater comfort, with a fully flat floor for more legroom, digital panel with easy access, simple settings and easy-to-read indicators and alerts. An option, the cab allows for easy entry and exit, with an easy-open front slide window.

Adjustable/proportional auxiliary flow

Adjustable/proportional auxiliary flow

Now you can conveniently program up to five different oil flow rates for specific attachments on the digital control panel. No tools or manual adjustment is required. Auxiliary attachments are operated with a proportional bi-directional rocker switch, or full flow button, on the right hand control lever.

Angle blade option

Angle blade option

Save time and work more efficiently. With a simple movement of the rocker switch on the dozer lever, the hydraulic angle blade can be angled right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.

Auto Idle

Auto Idle

Save fuel with Kubota’s Auto Idle. Reduce engine RPM instinctively when high engine speed isn’t needed. When the control levers are in neutral for more than 4 seconds, the engine RPM automatically idles. Move any control lever and the engine RPM immediately returns. This innovative feature reduces noise and exhaust emissions while reducing operating costs.

Auxiliary diverter valve

Auxiliary diverter valve

The standard diverter valve on the auxiliary circuit allows a second hydraulic attachment to be connected and the oil flow switched to the second attachment, with no need to disconnect the main attachment.

Clean running Kubota tier 4 engine

Clean running Kubota tier 4 engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

Blade float

Blade float

The float function is a standard feature on the U35-4*. Ground finishing work can be completed quickly and simply without the need to adjust the blade height. After backfilling, simply travel backwards along the covered ditch with the dozer in the float position. *Standard on both angle blade & standard blade models.

Specs

Model name U35-4
Model D1703M-DI-E4
Make Kubota
Rated engine speed 2200.0000 rpm / 2200.0000 rpm
Displacement 1647.0000 cc / 100.5000 cu. in.
Output (SAE J1995 gross) 18.5000 kW / 24.8000 HP
Output (SAE J1349 net) 17.8000 kW / 23.9000 HP
Auxiliary hydraulic flow
Pump capacity 39.6000 l/min / 10.5000 gpm
Bucket 3594.0000 kgf / 7924.0000 lbf
Arm 2019.0000 kgf / 4451.0000 lbf
Ground clearance 288.0000 mm / 11.3400 in
Overall height 2470.0000 mm / 97.2000 in
Overall length 4749.0000 mm / 187.0000 in
Overall width 1700.0000 mm / 66.9000 in
Width 1700.0000 mm / 69.6000 in
Height 343.0000 mm / 13.5000 in
Maximum lift above ground 372.0000 mm / 14.6500 in
Maximum drop below ground 369.0000 mm / 14.5300 in
Including operator’s weight @ 175 lbs. 3687.0000 kg / 8129.0000 lb
Type Rubber/Steel
Low 3.0000 km/h / 1.9000 mph
High 4.6000 km/h / 2.9000 mph
Maximum traction force 2763.0000 kgf / 6091.0000 lbf
Crawler length 2084.0000 mm / 82.0000 in
Shoe width 300.0000 mm / 11.8000 in
Ground contact pressure 0.3400 kg/cm2 / 4.8900 psi
Tumbler distance 1688.0000 mm / 66.5000 in
Unit swing speed 8.9000 rpm / 8.9000 rpm
Left 71.0000 deg / 71.0000 deg
Right 45.0000 deg / 45.0000 deg
Reservoir 44.6000 l / 11.8000 gal
System 61.0000 l / 16.1000 gal
Reservoir 46.9000 l / 12.4000 gal
Type Canopy/Cab
