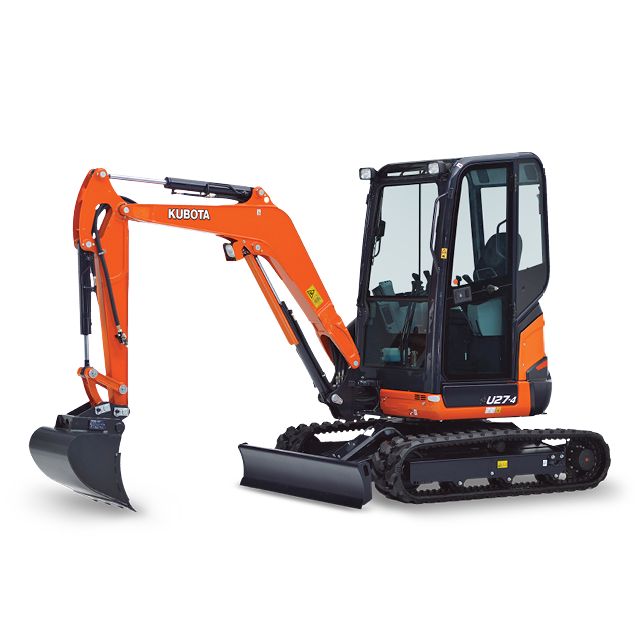

Mini-Excavator

U27-4

Get A Quote

Features

Comfort & convenience

Comfort & convenience

A spacious operator station designed for greater comfort, with a fully flat floor for more legroom, digital panel with easy access, simple settings and easy-to-read indicators and alerts. An option, the cab allows for easy entry and exit, with an easy-open front slide window.

Front meter panel

Front meter panel

For better visibility and accessibility, the meter panel is positioned to the right front corner of the operator station. With easier access, simpler settings, easy-to-read indicators and alerts, you'll always be aware of the excavator's functioning status.

AUX diverter valve

AUX diverter valve

The diverter valve allows auxiliary oil to be diverted to operation of auxiliary attachments without the removal of the thumb attachment pipeline for increased efficiency on the go.

Proportional control of AUX circuit

Proportional control of AUX circuit

The thumb- operated switch on the right joystick allows easy proportional flow control of the AUX circuit. And, with the small dial on top of the meter panel, the oil flow is conveniently adjustable up to 12.7 GPM.

Tight tail swing

Tight tail swing

The U7-4's tight tail swing proves to be highly versatile when operating in confined conditions. There is less chance for damage to the machine or surroundings due to the Tight Tail design.

Auto shift down

Auto shift down

The U27-4 auto-shift automatically shifts travel speed from high to low, depending on traction and terrain, allowing smoother operation when dozing and turning.

Two-Pattern Selector System (TPSS)

Two-Pattern Selector System (TPSS)

The Two-Pattern Selection System positioned under the seat allows the operator to shift control styles conveniently while seated. A simple turn of a switch is all it takes to select between the ISO pattern and the SAE backhoe pattern. This standard feature allows operators to chose their preferred choice of operation for comfort and efficiency.

Serviceability

Serviceability

Front pin bushings to help maximize durability, centralized swivel bearing lubrication, protected cylinder hoses, steel hood panels, one-sided engine maintenance, and wide hood openings for easy access to engine and other vital components.

Specs

Model name U27-4
Model D1105-BH
Make Kubota
Rated engine speed 2400.0000 rpm / 2400.0000 rpm
Displacement 1123.0000 cc / 68.5000 cu. in.
Output (SAE J1995 gross) 15.5000 kW / 20.8000 HP
Output (SAE J1349 net) 14.9000 kW / 20.0000 HP
Auxiliary hydraulic flow
Pump capacity 28.8000 l/min / 7.6000 gpm
Bucket 3180.0000 kgf / 7014.0000 lbf
Arm 1260.0000 kgf / 2777.0000 lbf
Ground clearance 307.0000 mm / 12.1000 in
Overall height 2420.0000 mm / 95.0000 in
Overall length 4100.0000 mm / 162.0000 in
Overall width 1500.0000 mm / 59.0000 in
Width 1500.0000 mm / 59.0000 in
Height 300.0000 mm / 11.8000 in
Maximum lift above ground 360.0000 mm / 14.2000 in
Maximum drop below ground 320.0000 mm / 12.6000 in
Including operator’s weight @ 175 lbs. 2580.0000 kg / 5688.0000 lb
Type Rubber
Low 2.6000 km/h / 1.6000 mph
High 4.3000 km/h / 2.7000 mph
Maximum traction force 3069.0000 kgf / 6767.0000 lbf
Crawler length 1990.0000 mm / 78.3000 in
Shoe width 300.0000 mm / 11.8000 in
Ground contact pressure 0.2340 kg/cm2 / 3.3210 psi
Tumbler distance 1560.0000 mm / 61.4000 in
Unit swing speed 9.9000 rpm / 9.9000 rpm
Left 75.0000 deg / 75.0000 deg
Right 55.0000 deg / 55.0000 deg
Reservoir 22.0000 l / 5.8000 gal
System 37.0000 l / 9.7000 gal
Reservoir 33.0000 l / 8.7000 gal
Type Canopy
