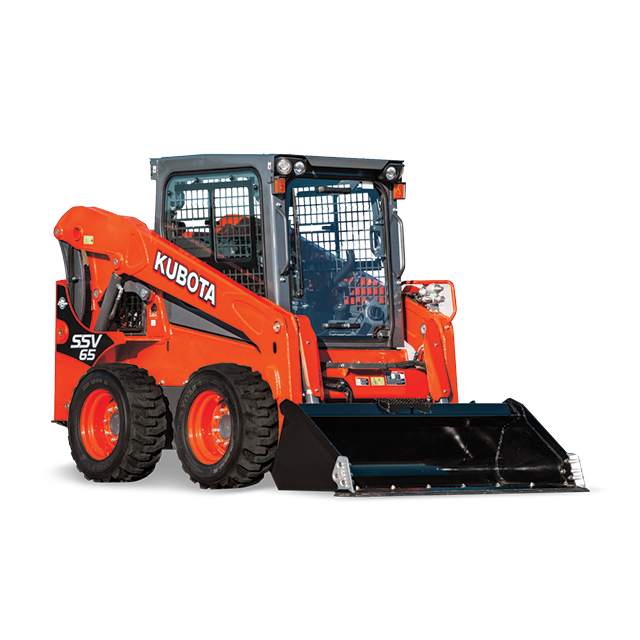

Skid Steer Loader

SSV65

Get A Quote

Features

Widest Cab in the market with roll-up door

Widest Cab in the market with roll-up door

The wider cab entrance, with a 36” side-screen to side-screen width, allows operators to comfortably pivot when looking to their rear. When coupled with a rear view mirror, rear visibility is at its maximum. Cab models come with Heat and AC standard.

Easy maintenance

Easy maintenance

Fuel tank mounted inside heavy duty rear door to promote easy maintenance. The unique design of mounting the fuel tank on the rear door results in 26 gallons of volume removed from the engine compartment. Now mounted on a standard heavy duty door without louvers or cut-outs, the additional free space in the engine compartment promotes the easy access and maintenance to daily checks and services. In addition Cab tilts up and there are 3 cleanout access panels in the chassis to clean out the debris.

Vertical lift loader arms

Vertical lift loader arms

Borrowed from Kubota’s Compact Track Loaders, this proven loader arm design with vertical geometry can push and dig as good as a radial machine. It’s reinforced in all the right areas, including critical connections to the coupler and rear cross bar. Designed to be a workhorse.

Standard 2-speed and suspension seat

Standard 2-speed and suspension seat

Standard two-speed travel Shift from low gear at 6.9 mph (SSV65) / 7.4 mph (SSV75) to high gear at 11.1 mph (SSV65) / 11.8 mph (SSV75) to get the job done faster.

KSR Kubota shockless ride and self levelling option

KSR Kubota shockless ride and self levelling option

KSR helps minimize fatigue by “smoothing out” the ride. You’ll appreciate KSR when carrying heavy loads over rough terrain on the farm or at a construction job site.

Hydraulic Skid Steer coupler option

Hydraulic Skid Steer coupler option

An optional Hydraulic quick coupler is available. You can attach or remove attachments using a switch without leaving the seat.

High flow hydraulics with 14 pin connector option

High flow hydraulics with 14 pin connector option

The optional high-flow hydraulics system can handle attachments requiring extra hydraulic power. With high-flow hydraulics, the standard hydraulic flow increases from 18.0 gpm to 28.0 gpm on the SSV65 and from 20.9 to 30.4 gpm on the SSV75.

Reliable Kubota engines

Reliable Kubota engines

A loyalty hallmark, Kubota Engines have proven their worth time and time again. Kubota is the largest manufacturer of under-100 HP engines. You can find them in all of our diesel engine powered units – and even those of some of our competitors who take advantage of its reputation.

Specs

Model name SSV65
Type Open CAB / Closed CAB
Aspiration Turbocharged
Bore 87.0000 mm / 3.5000 in
Stroke 110.0000 mm / 4.4000 in
Rated engine speed 2700.0000 rpm / 2700.0000 rpm
Engine gross horsepower @ rpm 47.7000 kW / 64.0000 HP
Engine net horsepower @ rpm 47.0000 kW / 63.0000 HP
Displacement 2615.0000 cc / 159.7000 cu. in.
Emission certification Tier 4
Model name V2607-CR-TE4
Cylinders 4.0000
Ground clearance 193.0000 mm / 7.6000 in
Operating weight 3320.0000 kg / 7319.0000 lb
Fuel tank capacity 96.0000 l / 25.4000 gal
Hydraulic tank 16.0000 l / 4.2000 gal
Low 11.1000 km/h / 6.9000 mph
High 17.8000 km/h / 11.1000 mph
Maximum traction force 3329.0000 kgf / 7339.0000 lbf
Tire size 10-16.5-8PR
Chain size ASA# 80.0000
Tipping load. 50% 885.0000 kg / 1950.0000 lb
Tipping load. straight 1770.0000 kg / 3900.0000 lb
Bucket 2195.0000 kgf / 4839.0000 lbf
Lift arm 1750.0000 kgf / 3858.0000 lbf
Lift arm path Vertical
Total hydraulic flow 68.0000 l/min / 18.0000 gpm
Auxiliary hydraulic pressure 230.0000 kg/cm2 / 3271.0000 psi
Standard 68.0000 l/min / 18.0000 gpm
High 106.0000 l/min / 28.0000 gpm
