Utility Vehicle

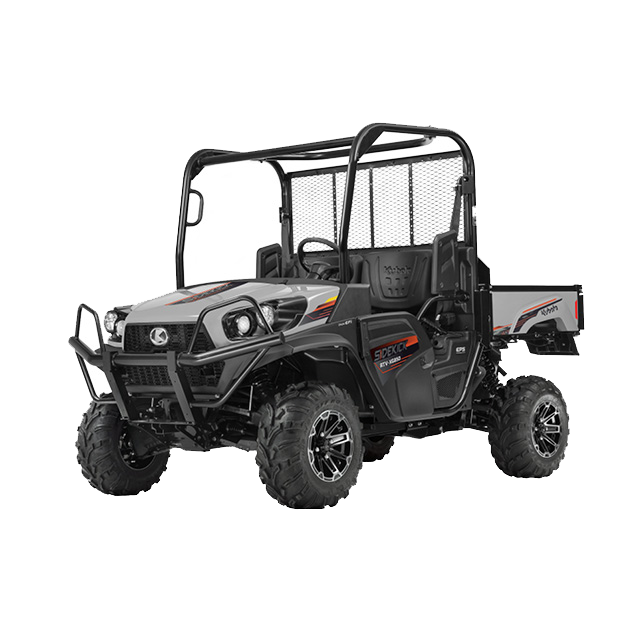

RTV-XG850 Special Edition

Get A Quote

Features

Durability meets speed

Durability meets speed

When the great outdoors call, jump in your RTV and hit the gas. The RTV-XG850’s new and powerful 54 HP gasoline engine gives you the speed to get where you’re going fast, up to 64 km/h (40 mph). With impressive acceleration and torque, you’ll take on every big hill and distant destination with absolute confidence.

Strong high-rigidity frame

Strong high-rigidity frame

Power and speed combined with agility and stability, that’s the RTV-XG850’s driving experience. Designed for easy handling at any speed, it’s always a comfortable drive thanks to the enhanced speed-sensitive EPS (Electronic Power Steering). Tuned front and rear independent suspension, along with a refined powertrain offer a consistently smooth ride with high loading performance, while the engine assists braking for greater control and safety during descents.

Decisive styling

Decisive styling

Every detail from the revised decals, comfortable bench seat, bold headlights, digital dash, and rugged cargo box are functional, fun, and aggressive. Stone Gray is a new colour available, and there are many colours, wheels, and accessories available to fit your needs.

Durable CVT-PLUS transmission

Durable CVT-PLUS transmission

The RTV-XG850 is equipped with Kubota’s worry-free CVT Plus transmission. The centrifugal clutch keeps the thick, double-cogged belts tight for minimal slippage, ensuring fast response and excellent belt durability. Fully shielded to keep out dust and water, the CVT Plus also cools the CVT belt with a large cooling fan for even greater durability.

Standard speed sensitive power steering

Standard speed sensitive power steering

The RTV-XG850 comes standard with speed sensitive Electric Power Steering providing better handling and comfort for operators throughout a range of speeds.

High towing and payload capacity

High towing and payload capacity

Built to handle a wide range of hauling jobs, from gear and supplies to tools and materials. And it can carry a lot, up to 15.2 cubic feet or half a ton (1,000 lbs.) in a rugged steel cargo box with optional electric lift for fast and effortless dumping. The RTV-XG850 is even ready to tow your boat, trailer and more by providing 2,000 lbs. of towing capacity and standard trailer hitch.

Quick attach accessories and cab components

Quick attach accessories and cab components

Build your own custom RTV-XG850 with optional modular cabin and accessories that will make your RTV experience more comfortable, personal, and memorable.

Specs

Model name RTV-XG850
Type Special
Body colour Black
Type 2-cylinders, 4-cycle, Gas, DOHC
Cooling system Liquid
Rated engine speed 6000.0000 rpm / 6000.0000 rpm
Displacement 851.0000 cc / 51.9300 cu. in.
Engine net power 40.3000 kW / 54.0000 HP
Max. traveling speed 64.4000 km/h / 40.0000 mph
Differential lock - Front axle Limited-slip differential
Differential lock - Rear axle Foot operated differential lock
Type CVT PLUS (CVT with centrifugal clutch)
Gear selection Hi-Lo range forward, neutral, reverse
Type of rear suspension Independent with coil over shock
Steering type Speed sensitive Electric Power Steering
Parking brake Rear wheel, hand operated
Type of front suspension Independent, Dual A-arms with coil over shock
Front 4-wheel hydraulic disc brake
Rear 4-wheel hydraulic disc brake
Front suspension travel 229.0000 mm / 9.0000 in
Rear suspension travel 216.0000 mm / 8.5000 in
Depth 290.0000 mm / 11.4000 in
Length 1465.0000 mm / 57.5000 in
Width 1030.0000 mm / 40.5000 in
Volume 0.4300 m3 / 15.2000 cu. ft.
Maximum payload capacity 454.0000 kg / 1000.0000 lb
Material Steel
Dumping system Manual
Overall height 2020.0000 mm / 79.5000 in
Wheelbase 2045.0000 mm / 80.5000 in
Weight 803.0000 kg / 1770.0000 lb
Turning radius 4.0000 mm / 13.1000 in
Length 3093.0000 mm / 119.0000 in
Width 1605.0000 mm / 63.2000 in
Front 1320.0000 mm / 52.0000 in
Rear 1320.0000 mm / 52.0000 in
Front 249.0000 mm / 9.8000 in
Rear 238.0000 mm / 9.4000 in
Maximum towing capacity 907.2000 kg / 2000.0000 lb
Maximum payload capacity 639.0000 kg / 1408.0000 lb
Battery 56.0000 A / 56.0000 A
Headlights LED (High-Low) with 2 reflectors
Maximum noise level at operators ear
Seat belts 3-point
Protective structure 50.8000 mm / 2.0000 in
Open Station Certified SAE J2194 and OSHA ROPS standards
Seat 2.0000
Tilt steering wheel Standard
Alloy wheel Standard
Front guard Standard front guard
Hydraulic bed lift Optional electric hydraulic power lift
Spray-on bed liner Standard
Fuel tank capacity 32.7000 l / 8.6400 gal
Front 25 x 10-12, 6-ply
Rear 25 x 10-12, 6-ply
Front 25 x 10-12, 6-ply
Rear 25 x 10-12, 6-ply
