Utility Vehicle

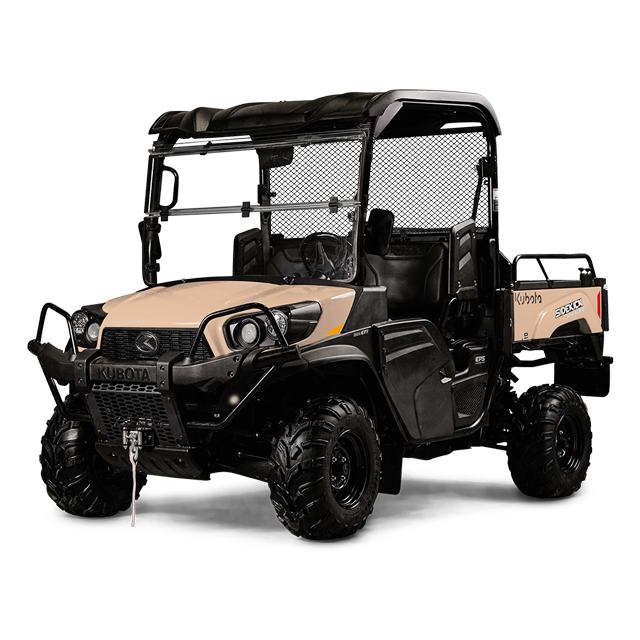

RTV-XG850 Rancher Package

Get A Quote

Features Specs Downloads Get A Quote

Back

Features

Durability meets speed

When the great outdoors call, jump in your RTV and hit the gas. The RTV-XG850’s new and powerful 54 HP gasoline engine gives you the speed to get where you’re going fast, up to 64 km/h (40 mph). With impressive acceleration and torque, you’ll take on every big hill and distant destination with absolute confidence.

Strong high-rigidity frame

Power and speed combined with agility and stability, that’s the RTV-XG850’s driving experience. Designed for easy handling at any speed, it’s always a comfortable drive thanks to the enhanced speed-sensitive EPS (Electronic Power Steering). Tuned front and rear independent suspension, along with a refined powertrain offer a consistently smooth ride with high loading performance, while the engine assists braking for greater control and safety during descents.

Decisive styling

Every detail from the revised decals, comfortable bench seat, bold headlights, digital dash, and rugged cargo box are functional, fun, and aggressive. Stone Gray is a new colour available, and there are many colours, wheels, and accessories available to fit your needs.

Durable CVT-PLUS transmission

The RTV-XG850 is equipped with Kubota’s worry-free CVT Plus transmission. The centrifugal clutch keeps the thick, double-cogged belts tight for minimal slippage, ensuring fast response and excellent belt durability. Fully shielded to keep out dust and water, the CVT Plus also cools the CVT belt with a large cooling fan for even greater durability.

Standard speed sensitive power steering

The RTV-XG850 comes standard with speed sensitive Electric Power Steering providing better handling and comfort for operators throughout a range of speeds.

High towing and payload capacity

Built to handle a wide range of hauling jobs, from gear and supplies to tools and materials. And it can carry a lot, up to 15.2 cubic feet or half a ton (1,000 lbs.) in a rugged steel cargo box with optional electric lift for fast and effortless dumping. The RTV-XG850 is even ready to tow your boat, trailer and more by providing 2,000 lbs. of towing capacity and standard trailer hitch.

Quick attach accessories and cab components

Build your own custom RTV-XG850 with optional modular cabin and accessories that will make your RTV experience more comfortable, personal, and memorable.

Outdoor-ready

Comes with a flip windshield, sport roof, and front guards built for outdoor tasks with extra protection.

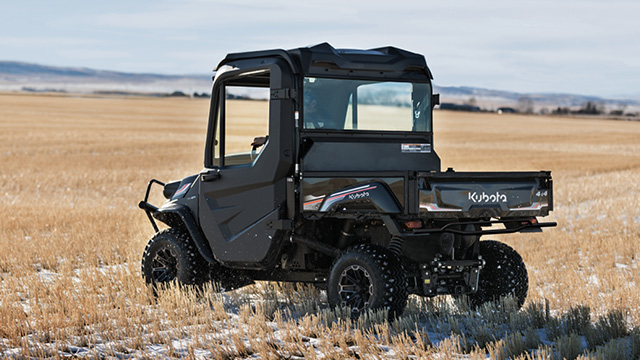

Outdoor Utility

Equipped with a VRX3500 winch and electric bed lift, you can tackle tough work effortlessly.

Specs

Tilt steering wheel	Not available
Alloy wheel	Optional
Front guard	Optional
Hydraulic bed lift	Optional electric hydraulic power lift
Spray-on bed liner	Not available

Turning radius	4.0000 mm / 13.1000 in
Weight	803.0000 kg / 1770.0000 lb
Wheelbase	2045.0000 mm / 80.5000 in
Overall height	2020.0000 mm / 79.5000 in
Length	2973.0000 mm / 117.0000 in
Width	1605.0000 mm / 63.2000 in
Front	1320.0000 mm / 52.0000 in
Rear	1320.0000 mm / 52.0000 in
Front	249.0000 mm / 9.8000 in
Rear	238.0000 mm / 9.4000 in
Maximum towing capacity	907.2000 kg / 2000.0000 lb
Maximum payload capacity	639.0000 kg / 1408.0000 lb

Type	CVT PLUS (CVT with centrifugal clutch)
Differential lock - Rear axle	Foot operated differential lock
Differential lock - Front axle	Limited-slip differential
Max. traveling speed	64.4000 km/h / 40.0000 mph
Gear selection	Hi-Lo range forward, neutral, reverse

Fuel tank capacity

32.7000 l / 8.6400 gal

Seat belts	3-point
Maximum noise level at operators ear
Protective structure	50.8000 mm / 2.0000 in
Open Station Certified	SAE J2194 and OSHA ROPS standards
Seat	2.0000

Battery	56.0000 A / 56.0000 A
Headlights	LED (High-Low) with 2 reflectors

Width	1030.0000 mm / 40.5000 in
Length	1465.0000 mm / 57.5000 in
Depth	290.0000 mm / 11.4000 in
Material	Steel
Dumping system	Manual
Volume	0.4300 m3 / 15.2000 cu. ft.
Maximum payload capacity	454.0000 kg / 1000.0000 lb

Type of rear suspension	Independent with coil over shock
Front	4-wheel hydraulic disc brake
Rear	4-wheel hydraulic disc brake
Front suspension travel	229.0000 mm / 9.0000 in
Rear suspension travel	216.0000 mm / 8.5000 in
Steering type	Speed sensitive Electric Power Steering
Parking brake	Rear wheel, hand operated
Type of front suspension	Independent, Dual A-arms with coil over shock

Displacement	851.0000 cc / 51.9300 cu. in.
Rated engine speed	6000.0000 rpm / 6000.0000 rpm
Cooling system	Liquid
Type	2-cylinders, 4-cycle, Gas, DOHC
Engine net power	40.3000 kW / 54.0000 HP

Type	General Purpose
Model name	RTV-XG850
Body colour	Orange

Rear	Optional
Front	25 x 10-12, 6-ply
Rear	25 x 10-12, 6-ply
Front	Optional
