Utility Vehicle

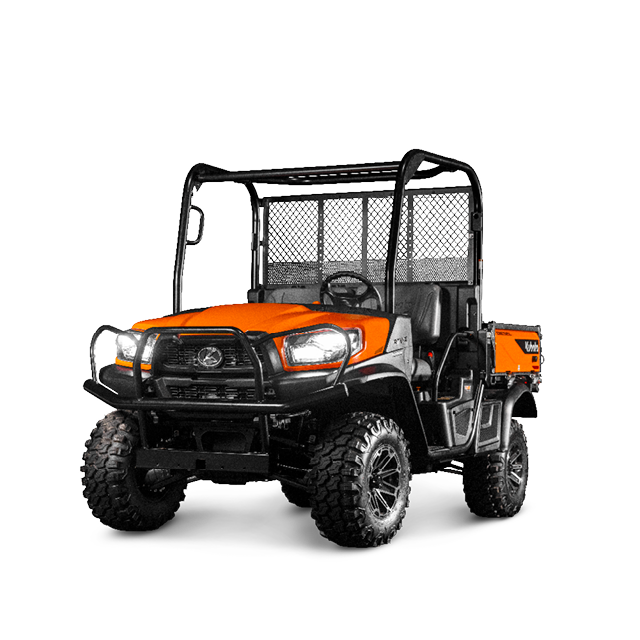

RTV-X Standard

Get A Quote

Features Specs Downloads Get A Quote

Back

Features

Powerful Kubota diesel engine

Every RTV-X comes equipped with a 3-cylinder diesel engine that outputs 23.3 HP and 51.4 ft-lbs of torque, which provide the driver with unparalleled power for hauling, a smooth comfortable ride and, most importantly, legendary Kubota reliability.

One pedal operation

No one understands variable hydrostatic transmissions better than Kubota. Our advanced 2 range VHT-X provides a wide torque band and allows you to easily control the speed of the machine with one pedal operation for superior performance and maneuverability.

Heavy duty steel cargo box

The rugged full steel constructed cargo box, with optional factory-installed bed liner helps protect the bed from dirt and damage. Unloading cargo is easier than ever: with the flick of a single lever, the hydraulic-lift cargo box rises and your cargo slides out. Four tie-down hooks in the corners help keep loads in place. Carry up to an impressive 15.2 cu ft and 1,102 lbs of payload.

Spacious & Comfortable Interior

Get the control you need to tackle any terrain with responsive hydrostatic power steering, with a tilt-adjustable* steering wheel that lets you customize the angle to suit your driving style. The plush driver adjustable* 60/40 seat and ergonomic control layout will ensure maximum comfort on the longest journeys. *Equipped on standard and premium trims

LCD Meter Panel

A bright and easy-to-read LCD meter provides all the information you need as an operator to keep your RTV running at optimum efficiency.

Strong high-rigidity frame

Experience less noise, vibrations and harsh sounds thanks to the RTV-X’s high-rigidity steel frame. Its industry-leading structural strength ensures it can endure years of stress from heavy loads and tough terrain. Equipped with factory front and rear trailer hitch with towing capacity up to 1,300 lbs.

Front and rear independent suspension

No matter what you’re carrying or where, Kubota’s Extra Duty IRS (Independent Rear Suspension) technology on all four wheels sets a new standard for durability – while providing an exceptionally smooth ride.

LED Low and High Beams

You can’t always wait for optimum working conditions. With the new LED low and high* beam lights, you can get the job done in foggy or low light conditions. *High beam equipped on standard and premium trims.

New Heavy Duty Multi-Purpose Tires

Don’t let any terrain hold you back, thanks to the heavy duty multi-purpose tires. As good on loose soil and mud as it is on solid ground, and gentle on turf while offering essential traction. Elevate the appearance of your RTV-X with the optional black and silver alloy wheels.

Multiple colour options

Choose an RTV-X that suits you, with three available colour options: Orange, Camo and Desert Sand.

Customizable with accessories & attachments

The RTV-X is designed for maximum versatility, with multiple ways to customize it to fit your needs – as well as plenty of available accessories and attachments to get more done.

Specs

Steering type	Hydrostatic power steering
Front	Wet-disc brakes
Rear	Wet-disc brakes
Front suspension travel	205.0000 mm / 8.0000 in
Rear suspension travel	205.0000 mm / 8.0000 in
Parking brake	Rear wheel, hand operated
Type of front suspension	Independent, Dual A-arms with adjustable spring preload

Engine gross power	17.3700 kW / 23.3000 HP
Displacement	1123.0000 cc / 68.5000 cu. in.
Make	KUBOTA D1105-E4-UV
Cooling system	Liquid
Type	3-cylinders, 4-cycle, diesel, OHV

Fuel tank capacity

30.0000 l / 7.9000 gal

Type	Variable hydro transmission (VHT-X)
Differential lock - Front axle	Limited-slip differential
Max. traveling speed	40.0000 km/h / 25.0000 mph
Gear selection	Hi-Lo range forward, neutral, reverse

Seat belts	2-point
Maximum noise level at operators ear	84 Db
Open Station Certified	SAE J2194 and OSHA 1928 ROPS

Battery	670.0000 A / 670.0000 A
Headlights	LED (High/Low)

Weight	940.0000 kg / 2072.0000 lb
Wheelbase	2045.0000 mm / 80.5000 in
Overall height	2020.0000 mm / 79.5000 in
Turning radius	4.0000 m / 13.1000 ft
Length	3110.0000 mm / 122.4000 in
Width	1605.0000 mm / 63.2000 in
Front	1240.0000 mm / 48.8000 in
Rear	1240.0000 mm / 48.8000 in
Front	265.0000 mm / 10.4000 in
Rear	260.0000 mm / 10.3000 in
Maximum towing capacity	590.0000 kg / 1300.0000 lb
Maximum payload capacity	680.0000 kg / 1499.0000 lb

Width	1465.0000 mm / 57.7000 in
Length	1030.0000 mm / 40.5000 in
Depth	285.0000 mm / 11.2000 in
Height	887.0000 mm / 34.9000 in
Maximum payload capacity	500.0000 kg / 1102.0000 lb
Material	Steel
Type	Traditional
Volume	0.4300 m3 / 15.2000 cu. ft.

Front	25 × 10-12, 6-ply
Rear	25 × 10-12, 6-ply
Front	25 × 10-12, 6-ply
Rear	25 × 10-12, 6-ply

Alloy wheel	Opt.
Front guard	Standard
Hydraulic bed lift	Standard
Spray-on bed liner	(Orange) Available, (Camo) Standard

Model name	RTV-X Standard
Body colour	Orange, Camo
