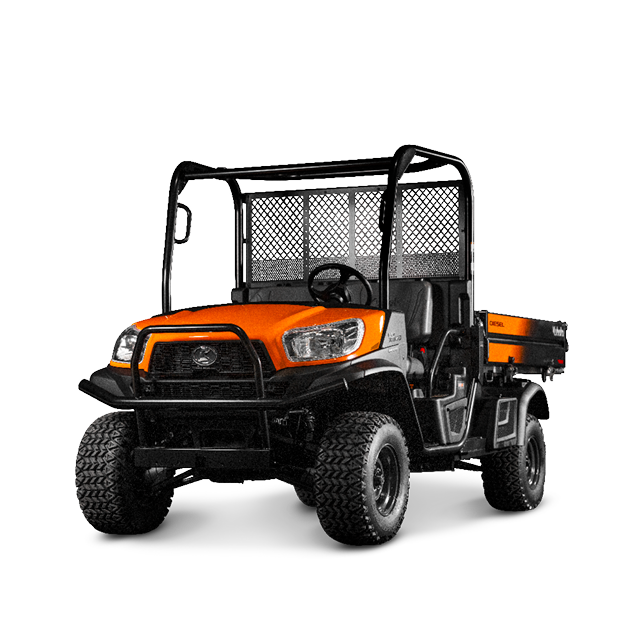

Utility Vehicle

RTV-X1130 Worksite

Get A Quote

Features

ProKonvert 3-way open cargo box

ProKonvert 3-way open cargo box

With its 6ft (1,8m) cargo bed, 26 cubic feet of storage and 1,212 lbs of cargo capacity, the new ProKonvert box changes what you can do with the RTV-X1130. It’s easy to load – it opens on all sides and converts to a flatbed in minutes without tools, and has an ergonomic low bed platform to make it easier for loading and unloading. Integrated in the bed sides are stake pockets allowing you to create vertical structures to maximize capacity or create bed dividers to separate your cargo.

Heavy duty steel cargo box

Heavy duty steel cargo box

The rugged full steel constructed cargo box, with factory-installed bed liner helps protect the bed from dirt and damage. Unloading cargo is easier than ever: with the flick of a single lever, the hydraulic-lift cargo box rises and your cargo slides out. Four tie-down hooks in the corners help keep loads in place. The RTV-X1130 is Kubota's highest carrying capacity with an impressive 26.4 cu ft and 1,212 lbs of payload.

Powerful Kubota diesel engine

Powerful Kubota diesel engine

Every RTV-X1130 comes equipped with a 3-cylinder diesel engine that outputs 23.3 HP and 51.4 ft-lbs of torque, which provide the driver with unparalleled power for hauling, a smooth comfortable ride and, most importantly, legendary Kubota reliability..

One pedal operation

One pedal operation

No one understands variable hydrostatic transmissions better than Kubota. Our advanced 2 range VHT-X provides a wide torque band and allows you to easily control the speed of the machine with one pedal operation for superior performance and maneuverability.

Spacious & comfortable interior

Spacious & comfortable interior

Get the control you need to tackle any terrain with responsive hydrostatic power steering, with a tilt-adjustable steering wheel that lets you customize the angle to suit your driving style. The plush driver adjustable 60/40 seat and ergonomic control layout will ensure maximum comfort on the longest journeys.

LCD Meter Panel

LCD Meter Panel

A bright and easy-to-read LCD meter provides all the information you need as an operator to keep your RTV running at optimum efficiency.

Strong high-rigidity frame

Strong high-rigidity frame

Experience less noise, vibrations and harsh sounds thanks to the RTV-X1130’s high-rigidity steel frame. Its industry-leading structural strength ensures it can endure years of stress from heavy loads and tough terrain. Equipped with factory front and rear trailer hitch with towing capacity up to 1,300 lbs.

Front and rear independent suspension

Front and rear independent suspension

No matter what you’re carrying or where, Kubota’s Extra Duty IRS (Independent Rear Suspension) technology on all four wheels sets a new standard for durability – while providing an exceptionally smooth ride.

Standard headlights and taillights

Standard headlights and taillights

You can’t always wait for optimum working conditions. The RTV-X1130 comes equipped with front headlights and brake lights to ensure maximum visibility.

Customizable with accessories & attachments

Customizable with accessories & attachments

The RTV-X1130 is designed for maximum versatility, with multiple ways to customize it to fit your needs – as well as plenty of available accessories and attachments to get more done.

Specs

Length 1837.0000 mm / 72.3000 in
Width 1384.0000 mm / 54.5000 in
Volume 0.7400 m3 / 26.4000 cu. ft.
Height 924.0000 mm / 36.4000 in
Maximum payload capacity 500.0000 kg / 1102.0000 lb
Depth 294.0000 mm / 11.6000 in
Material Steel
Type ProKonvert
Overall height 2025.0000 mm / 79.7000 in
Wheelbase 2495.0000 mm / 98.2000 in
Weight 1060.0000 kg / 2337.0000 lb
Length 3925.0000 mm / 154.5000 in
Width 1605.0000 mm / 63.2000 in
Front 1280.0000 mm / 50.4000 in
Rear 1280.0000 mm / 50.4000 in
Front 265.0000 mm / 10.4000 in
Rear 260.0000 mm / 10.3000 in
Maximum towing capacity 590.0000 kg / 1300.0000 lb
Maximum payload capacity 754.0000 kg / 1662.0000 lb
Turning radius 5.2000 m / 17.1000 ft
Battery 670.0000 A / 670.0000 A
Headlights LED (Low)
Maximum noise level at operators ear 84 Db
Seat belts 2-point
Open Station Certified SAE J2194 and OSHA 1928 ROPS
Type Variable hydro transmission (VHT-X)
Gear selection Hi-Lo range forward, neutral, reverse
Differential lock - Front axle Limited-slip differential
Max. traveling speed 40.0000 km/h / 25.0000 mph
Fuel tank capacity 30.0000 l / 7.9000 gal
Engine gross power 17.3700 kW / 23.3000 HP
Displacement 1123.0000 cc / 68.5000 cu. in.
Make KUBOTA D1105-E4-UV
Cooling system Liquid
Type 3-cylinders, 4-cycle, diesel, OHV
Steering type Hydrostatic power steering
Parking brake Rear wheel, hand operated
Type of front suspension Dual A-Arms independent suspension
Front Wet-disc brakes
Rear Wet-disc brakes
Front suspension travel 205.0000 mm / 8.0000 in
Rear suspension travel 205.0000 mm / 8.0000 in
Body colour Orange or Camo
Model name RTV-X1130 Worksite
Front 25 × 10-12, 6-ply
Rear 25 × 10-12, 6-ply
Front 25 × 10-12, 6-ply
Rear 25 × 10-12, 6-ply
Front guard Standard (Orange), Premium (Camo)
Hydraulic bed lift Standard
Spray-on bed liner Standard
