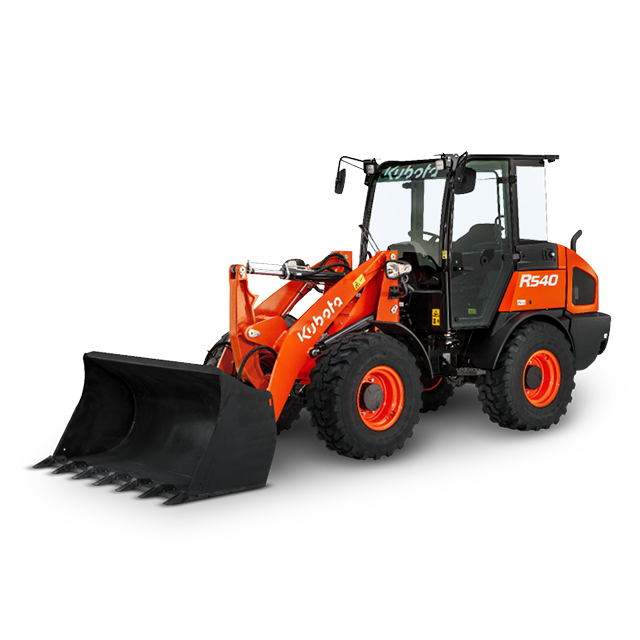

Wheel Loader

R540

Get A Quote

Features

Superb lifting performance

Superb lifting performance

A long reach and high clearance paired with impressive lifting power make material handling easy. Lift and load to trucks with ease, while the superior reach makes pallet fork operations faster and more efficient.

Modern high-visibility cabin

Modern high-visibility cabin

The R40’s expanded cabin offers a panoramic view for easier and safer operation. The full glass door, and wide opening window provide excellent visibility to the left and right, while the rear window offers an unobstructed view when traveling in reverse.

Coupler options

Coupler options

Efficiently exchange attachments to meet the needs of the job at hand. Choose between mechanical or hydraulic skid steer style or hook and pin style couplers to get you on your way.

Simplified control layout

Simplified control layout

The R40 series features an updated interior layout focused on easier operation and visibility. All major switches are now located on the right side for quicker access. All major loader functions are on a single lever that is easy to operate with just one hand, both on the R540 and R640. The 2-step speed control switch lets you quickly change speeds, allowing you to operate at optimum efficiency for the task at hand.

Aux service ports

Aux service ports

Conveniently located on the rear of the attachment quick coupler flat face, no drip couplers provide easy access to power your hydraulic attachments. Auxiliary ports are plumbed separately from hydraulic quick coupler plumbing.

Tire options

Tire options

Choose from a selection of quality tires to help you work on a variety of terrain or seasonal conditions. Kubota has three tire options, standard bias, industrial radial and winter tire.

Hybrid link design

Hybrid link design

The well balanced cylinder position of the Kubota Z link system combines the advantages of both Z link and parallel link systems. You get strong bucket force when excavating and grading, and a lift path almost parallel to the ground for superior reach and lifting.

LED work lights

LED work lights

Bright LED work lights provide plenty of illumination for nighttime tasks.

Specs

Model name R540
Type Canopy/Cab
Rated engine speed 2400.0000 rpm / 2400.0000 rpm
Displacement 2615.0000 cc / 160.0000 cu. in.
Emission certification Tier4 Final
Output (SAE J1995 gross) 38.0000 kW / 50.9000 HP
Output (SAE J1349 net) 35.7000 kW / 47.9000 HP
Model name V2607-CR-E5-WL
Ground clearance 320.0000 mm / 12.6000 in
Overall height 2475.0000 mm / 98.0000 in
Overall length 5400.0000 mm / 213.0000 in
Overall width 1720.0000 mm / 68.0000 in
Weight 4665.0000 kg / 10285.0000 lb
Type Hydrostatic transmission
Low 0.0000 km/h / 0.0000 mph
High 20.0000 km/h / 12.4000 mph
Fuel tank capacity 70.0000 l / 18.5000 gal
Hydraulic system capacity 55.0000 l / 14.5000 gal
Hydraulic reservoir 39.0000 l / 10.3000 gal
Maximum traction force 29.1000 kgf / 6541.0000 lbf
Tire size 365/70R18
Front/Rear axle traction lock Diff-lock (both axles)
Angle of articulation (each way) 40.0000 deg / 40.0000 deg
Angle of rear frame oscillation 8.0000 deg / 8.0000 deg
Loader clearance circle 1475.0000 mm / 164.0000 in
Auxiliary hydraulic flow 54.0000 l/min / 14.2000 gpm
Auxiliary hydraulic pressure 18.5000 MPa / 2683.0000 psi
Service Enclosed wet disc
Parking Spring applied hydraulic released wet disc
With bucket 3070.0000 kg / 6768.0000 lb
With bucket 2690.0000 kg / 5930.0000 lb
With pallet forks 2080.0000 kg / 4586.0000 lb
With bucket 1345.0000 kg / 2965.0000 lb
With pallet forks 1250.0000 kg / 2756.0000 lb
With pallet forks 2360.0000 kg / 5202.0000 lb
Standard bucket capacity 0.8500 m3 / 0.8500 yd3
Breakout force 34.5000 kgf / 7761.0000 lbf
Lifting capacity 30.1000 kgf / 6767.0000 lbf
Raise 6.5000 s / 6.5000 s
Lower 4.5000 s / 4.5000 s
