Specialty Tractors

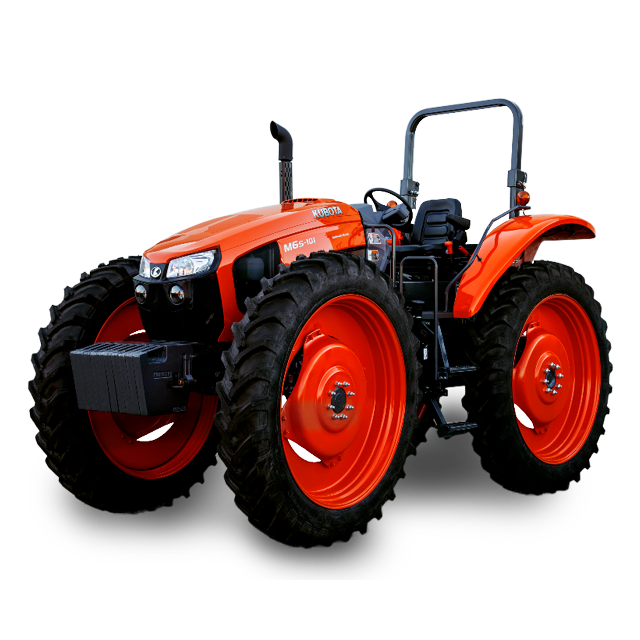

M6H-101

Get A Quote

Features

High clearance front and rear axles

High clearance front and rear axles

When ground clearance is the key to your operation, Kubota’s high clearance tractor’s front and rear axles stand above the competition. Kubota’s bevel gear front axle provides more ground clearance than the competitors’ straight, u-joint front axles by lowering the final drive hub, allowing the axle housing to rise over the crop. Both the front final drive and rear drop box axle ride within the wheels, not limiting critical ground clearance. When wide tread settings are required, wide axle spacer kits are used, allowing the front final drive and rear drop box to remain within the front and rear wheels to not limit ground clearance (unlike the competition).

24 Speed Swing Shift Transmission

24 Speed Swing Shift Transmission

The M6H High Clearance has 4 gears on main shift, High/Low/Creep (standard) on range gear shift and a Swing Shift. Swing Shift adds 4 more speeds to the main shift by actuating the electric-over-hydraulic High/Low synchronized range shift giving you access to a total of 8 speeds. Therefore, M6H-101 has access to a total of 24 speeds.

Technology driven engine

Technology driven engine

The M6H-101 High Clearance is equipped with a Kubota turbocharged V3800 Tier IV Final engine which has a Common Rail System (CRS), intercooler and Exhaust Gas Recirculation (EGR). Employment of a Diesel Particulate Filter (DPF) and a Selective Catalytic Reduction (SCR) system for minimized emissions. Additionally, it also has a RPM Memory to recall prefered engine RPM settings with the touch of a button and Constant RPM Management to keep the engine speed constant for stable operation.

High hydraulic performance

High hydraulic performance

The M6H-101 comes with 2 standard rear remote valves and can add an additional valve. Standard valves are one self-cancelling detent valve and one floating detent valve. With 17.6 GPM flow and an optional third remote valve, this tractor is ready to accept implements requiring multiple valves.

Specs

Model name M6H-101
Model V3800-TIEF
Type 4-Direct Injection, Water-cooled 4 Cycle Diesel, Common Rail System, Turbocharger, Intercooler, DPF,
Cylinders 4.0000
Make Kubota
Rated engine speed 2600.0000 rpm / 2600.0000 rpm
Engine gross horsepower @ rpm 77.9000 kW / 104.4000 HP
PTO horsepower 62.6000 kW / 84.0000 HP
Displacement 3769.0000 cc / 230.0000 cu. in.
Alternator 80.0000 A / 80.0000 A
Fuel tank capacity 175.0000 l / 46.0000 gal
Type Hydraulic Wet Clutch
Rated engine speed 540.0000 rpm / 540.0000 rpm
Clutch Hydraulic Wet Clutch
Max. traveling speed 26.3400 km/h / 16.3700 mph
Shuttle Electro-hydraulic
Differential lock Front / Rear
Brake type Hydraulic Wet Disk Type
Drive method 4WD
Forward 24.0000
Reverse 24.0000
Category II
Lower link ends Telescopic
Rear remote valves 2.0000
Type Open-Center
Total pump output 66.6000 l/min / 17.6000 gpm
At 24 in. behind lift point OECD 1750.0000 kg / 3858.0000 lb
Draft control Top Link Draft Sensing
Rear remotes 2 standard (3rd & flow control valve optional)
Ground clearance 655.0000 mm / 25.8000 in
Overall height 2835.0000 mm / 111.6000 in
Overall length 4275.0000 mm / 168.3000 in
Overall width 2030.0000 mm / 79.9000 in
Wheelbase 2420.0000 mm / 95.3000 in
Weight 3700.0000 kg / 8157.0000 lb
Front 1565.0000 mm / 61.6000 in
Rear 1545.0000 mm / 60.8000 in
Without brake 6.4000 m / 21.0000 ft
Front 13.6-38
Rear 13.6-38
Hood type Full-open
