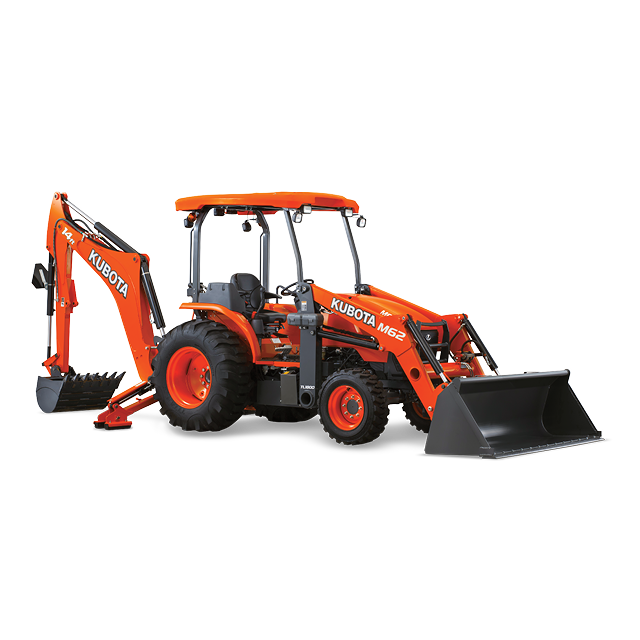

Tractor Loader Backhoe

M62

Get A Quote

Features

Quick coupler

Quick coupler

Switch from road-use side to steel anchor by simply rotating the unit by hand. No tools needed!

IntelliPanel

IntelliPanel

The large, easy to read LCD panel provides all of the vital information you need to keep your TLB in peak working condition for maximum productivity. Indicators, displays, and sensor messages include current working status, engine conditions, fuel and oil warning signals, and a variety of maintenance indicators, so you’ll always know how the tractor is functioning and when you need to refuel or perform maintenance.

Mechanical 2-lever quick coupler

Mechanical 2-lever quick coupler

Kubota’s 2-lever quick coupler lets you quickly and easily attach and detach front implements. With the optional hydraulic 2-lever quick coupler, you won’t even need to leave your seat. Simply press two buttons to release the levers, back away from the nowdetached implement, move into the next implement, and press the buttons to re-engage the levers. Changing implements couldn’t be easier!

Backhoe crawling mode

Backhoe crawling mode

Now you can save time when repositioning during backhoe operations. The backhoe crawling mode lets you creep forward or backward with the touch of a finger while remaining at the backhoe controls. It’s so simple, you won’t even need to change the seat position!

Category I and II 3-point hitch (optional)

Category I and II 3-point hitch (optional)

Do even more by attaching any of a wide array of rear-mounted implements to the Category I and II 3-point hitch. Attachment is quick and easy, and the hitch provides astonishing lift capacity. (B26/L47 are Category I only.)

Flip-over stabilizer pad

Flip-over stabilizer pad

Switch from road-use side to steel anchor by simply rotating the unit by hand. No tools needed!

Specs

Model name M62TLB
Air pre-cleaner Dual element
Cylinders 4.0000
Rated engine speed 2700.0000 rpm / 2700.0000 rpm
Engine gross horsepower @ rpm 47.0000 kW / 63.0000 HP
Engine net horsepower @ rpm 44.1000 kW / 59.1000 HP
PTO horsepower 34.3000 kW / 46.0000 HP
Displacement 2434.0000 cc / 148.5000 cu. in.
Emission certification EPA Final Tier 4
Fuel tank capacity 67.0000 l / 17.7000 gal
Type Independent
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Max. traveling speed 24.9000 km/h / 15.5000 mph
Range gear shift Seat side, right
Speed Infinite
Transmission type HST Plus (6 range)
Brake type Wet disc
Differential lock - Rear axle Standard
3-Point hitch Optional
Position control Standard
Pump capacity 116.9000 l/min / 30.9000 gpm
24" behind lift point 1250.0000 kg / 2756.0000 lb
Steering type Hydrostatic
Wheelbase 2050.0000 mm / 80.7000 in
Front 10 × 16.5–R4
Rear 17.5L–24 R4
Front 1440.0000 mm / 56.7000 in
Rear 1462.0000 mm / 57.6000 in
Without brake 3.3000 m / 10.8000 ft
Power unit + 2 implements 4048.0000 kg / 8925.0000 lb
Back up alarm Standard
FOPS Standard
Open Station 4 post
Deck type Walk-through deck
Loader-integrated reinforced frame Standard
Glow plug Super glow
Reversible seat Standard
Hard nose slanted hood Standard
Horn Standard
Tilt steering wheel Standard
