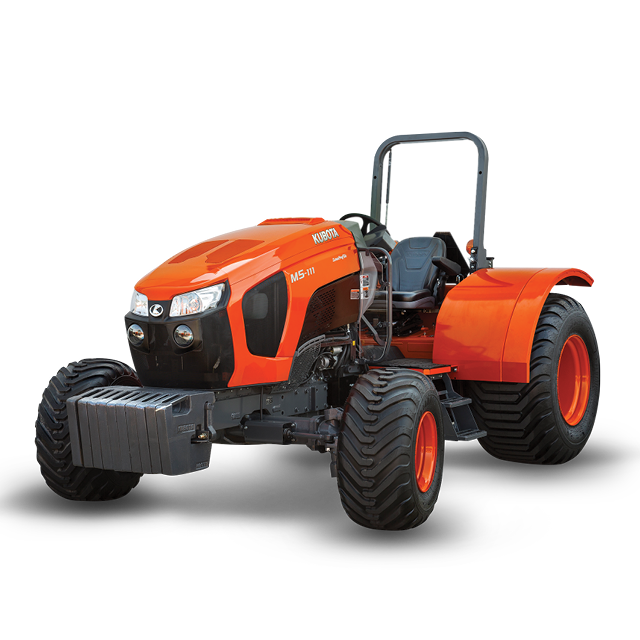

Specialty Tractor

M5L-111

Get A Quote

Features

Low profile power that will exceed your high expectations

Low profile power that will exceed your high expectations

The M5L combines low clearance versatility with full-size capabilities. Featuring an intelligently revamped operator station and a telescopic Open Station frame, the M5L is specifically engineered for work in orchards and other applications that require a capable low profile footprint. Equipped with an updated V-3800-Tier IV engine and a highly versatile transmission that offers six speeds in two ranges, the M5L excels in power, versatility, durability and performance.

Transmission

Transmission

High productivity requires versatility, such as traveling at low or sustained speeds. This tractor's transmission has 12F × 12R speed, with six speeds in two ranges. The shuttle shift is electric over hydraulic and is guarded against intrusion. The 540/540E PTO is standard.

Redesigned operator station

Redesigned operator station

To promote operator efficiency all main controls are conveniently located on the right side. The separated park lock button must be pushed to lock and unlock to prevent accidental engagement from tree limbs or operators. The floor pedals have been adjusted for better comfort and the floor area has been increased along with ergonomic steps.

Standard shielding

Standard shielding

Solid steel sloping hood reduce crop damage. Steel shields for the fuel and DEF tanks are standards. Additionally, the operators console, left foot area and clutch area are shielded from heat and potential obstacles. The electro-hydraulic shuttle lever is shielded to reduce impact from limbs, as is the down exhaust system and hood intake.

Specs

Model name M5L-111
Model V3800-TIEF4
Type Direct Injection, water-cooled 4-cycle diesel, Common Rail System, Turbocharger, Intercooler, DPF, D
Aspiration Turbocharged
Cylinders 4.0000
Make Kubota
Rated engine speed 2400.0000 rpm / 2400.0000 rpm
Engine gross horsepower @ rpm 78.8000 kW / 105.6000 HP
Engine net horsepower @ rpm 74.6000 kW / 100.0000 HP
PTO horsepower 66.4000 kW / 89.0000 HP
Displacement 3769.0000 cc / 230.0000 cu. in.
Alternator 80.0000 A / 80.0000 A
Fuel tank capacity 92.0000 l / 24.3000 gal
Type Live-independent PTO, electro-hydraulic clutch with brake
Rated engine speed 540.0000 rpm / 540.0000 rpm
Main gear shift Fully synchronized (6 speed) / with Creep opt. F18 / R18
Shuttle Electro hydraulic shuttle
Speed F12 / R12 (6×2)
Drive method 4WD
Category II
Control system Position, draft (Top link sensing)
3-Point hitch 59.4000 l/min / 15.7000 gpm
Remote valves 2 (Max. 3)
At 24 in. behind lift point ISO 2100.0000 kg / 4630.0000 lb
At 24 in. behind lift point ASAE 2350.0000 kg / 5181.0000 lb
Crop clearance 415.0000 mm / 16.3000 in
Overall height 2300.0000 mm / 90.6000 in
Overall width 1970.0000 mm / 77.6000 in
Weight 2680.0000 kg / 5904.0000 lb
Front 9.5-20
Rear 16.9-24
4WD drive system Bevel gear type with 55 degree turning angle
Deck type Semi-flat
Seat w/ reclining armrest Std.
