Utility Tractor

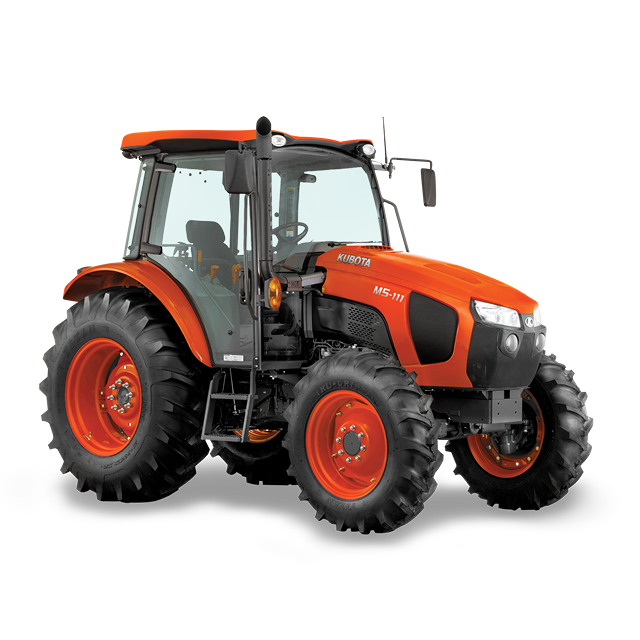

M5-091 Cab

Get A Quote

Features

Redesigned & re-engineered

Redesigned & re-engineered

The M5-091/M5-111 tractors have been redesigned and re-engineered inside and out for greater comfort and cleaner emissions. You'll work comfortably, thanks to a new extra-wide, ultra-spacious cabin that features a convenient optional instructor’s seat and a glass sunroof with retractable sun shade. And you'll work clean, thanks to a re-engineered exhaust system that combines Selective Catalytic Reduction with a Common Rail System, Diesel Particulate Filter muffler, and Exhaust Gas Recirculation system to dramatically reduce emissions without sacrificing power or economical performance. Best of all, the M5-091/M5-111 carry the Kubota name, so you can depend on them to get the job done.

Improved comfort

Improved comfort

New Functional Platform The M5-091/M5-111 cab has been redesigned for better ergonomics. All levers (except the 4WD lever) and electrical switches are located on the right side for easy access and continuous operations. Easy-Step Tilt Steering Wheel The steering wheel of the cab gets out of the way when the operator is dismounting the tractor. Just step on a pedal and raise the steering wheel to its original position.

Constant RPM management

Constant RPM management

The M5-091/M5-111 engines feature a new electronic governor that gives you electronic control of engine RPM. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO-driven implements much more efficient. RPM Memory RPM memory lets you save the RPM setting for an oft-performed task, such as PTO work, front loader work, or changing directions. To recall that setting, simply press a single button, and you can start working immediately without having to adjust the throttle.

Hydraulics

Hydraulics

The hydraulics on the M5-091/M5-111 are powerful and fast-acting. External hydraulic cylinders improve lifting power and ensure easier maintenance, while the large pump capacity (17 gpm; 15.9 gpm for Open Station models) shortens front-loader cycle times, enhancing productivity and performance. One (SCD) hydraulic remote valve is standard, with the option to add up to 2 more. An optional flow control valve lets you adjust the oil flow volume.

Bevel-gear front axle

Bevel-gear front axle

The bevel-gear front axle provides the M5-091/M5-111 with greater all-around maneuverability. It enables M5-091/ M5-111 tractors a tighter turning radius than ever before--an amazing 55 degrees. This makes easy work of jobs in tight spaces. Limited Slip Differential on the front and Differential Lock on the rear are standard features, offering increased stability and traction on challenging ground conditions.

Hydraulic independent PTO

Hydraulic independent PTO

Pulling, lifting, cutting or baling; the standard 540 rpm hydraulic independent PTO of the Kubota M-Series tractors makes your toughest work easier. The PTO brake engages when the clutch is shut off and securely holds the PTO shaft. The PTO clutch can be hydraulically engaged and disengaged on the go. This means mowing, operating hay equipment or spraying orchards are all made more efficient. 540E is standard on 12x12 and 24x24 transmission, optional on 8x8. 1000 RPM optional on all transmission.

3-point hitch

3-point hitch

The Category II 3-point hitch provide fast and simple attachment of rearmounted implements weighing up to 4,630 lbs./2,100 kg (ISO standard) or 5182lbs./2350 kg (ASAE standard) and optionally up to 6,064 lbs./2,750 kg (ISO standard) or 7,275 lbs./3,300 kg (ASAE standard). On models with the FR12/R12 or F24/R24 transmission, the hitch is compatible with implements weighing up to 6,064 lbs./2,750 kg (ISO standard) or 7,275 lbs./3,300 kg (ASAE standard). Floating lift rods are standard on both sides of the M5-091 and M5-111. Floating lift rods give the M5-091/M5-111 tractors a smoother ride and enhanced traction while using the 3-point hitch, especially on uneven terrain.

Front hitch & PTO (optional)

Front hitch & PTO (optional)

Performance matched front 3-pt hitch with more versatility, providing the ability to attach front mount implements such as snow blowers and blades.

Specs

Model name M5-091HDCC12
Model V3800-TIEF4
Type 4 cylinders in-line, Common Rail System, direct injection, w/intercooler, DPF, DOC, SCR
Aspiration turbocharged
Cylinders 4.0000
Make KUBOTA
Rated engine speed 2600.0000 rpm / 2600.0000 rpm
Engine gross horsepower @ rpm 69.0000 kW / 92.5000 HP
Engine net horsepower @ rpm 63.8000 kW / 85.5000 HP
PTO horsepower 56.7000 kW / 76.0000 HP
Displacement 3769.0000 cc / 230.0000 cu. in.
Alternator 130.0000 A / 130.0000 A
Fuel tank capacity 105.0000 l / 27.7000 gal
Type Live-independent PTO, electro-hydraulic clutch with brake
Rated engine speed 540.0000 rpm / 540.0000 rpm
Non-clutch shift N/A
Main clutch Multiple wet disc
Shuttle Electro hydraulic shuttle
Brake type Hydraulic wet disc
Differential lock - Front axle Limited Slip Differential
Differential lock - Rear axle mechanical
Drive method 4WD
4WD Mechanical, on the go
Forward 12.0000
Reverse 12.0000
Speed 6.0000
Type Fully synchronized
Dual speed (Hi-Lo) N/A
Category II
Control system Position, draft (top link sensing) & mixed control
Cylinder type 2 External cylinders
3-Point hitch 64.3000 l/min / 17.0000 gpm
Steering type Hydrostatic power steering
Remote valves 1 (Max3)
At 24 in. behind lift point ISO 2750.0000 kg / 6063.0000 lb
At 24 in. behind lift point ASAE 3300.0000 kg / 7275.0000 lb
Crop clearance 475.0000 mm / 18.7000 in
Overall height 2545.0000 mm / 100.2000 in
Overall length 3960.0000 mm / 155.9000 in
Wheelbase 2250.0000 mm / 88.6000 in
Weight 3130.0000 kg / 6900.0000 lb
(min. tread) 1990.0000 mm / 78.3000 in
Front 1580.0000 mm / 62.2000 in
Rear 1520.0000 mm / 59.8000 in
Without brake 4.2000 m / 13.8000 ft
Front 11.2-24
Rear 16.9-30
4WD drive system Bevel gear type with 55 degree turning angle
Deck type Full-flat
Hood type Full open, slanted, steel
Pedal type hanging
Roof window Std
RPM memory Standard
Tilt steering wheel Standard
