Specialty Tractor

LX3520DTN

Get A Quote

Features

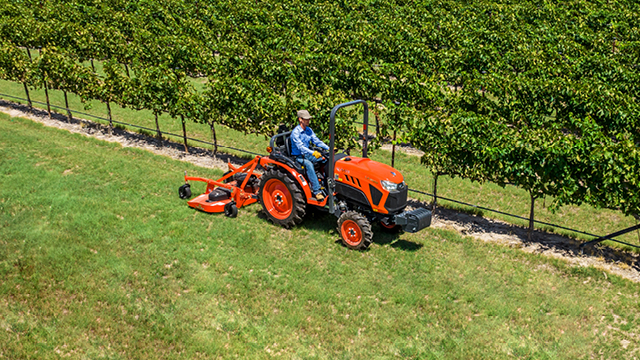

Sleek and formidable

Sleek and formidable

The LX3520N measures a mere 39.4” in width, meticulously crafted to excel in orchards, vineyards, nurseries, or any setting demanding a slender tractor boasting LX20 power and unwavering dependability.

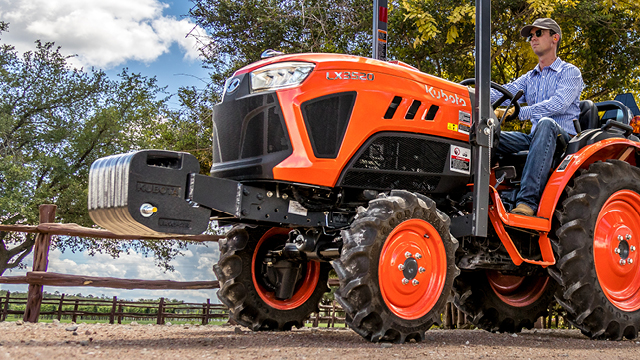

Powerful performance

Powerful performance

The LX3520N boasts an impressive 34.9 engine horsepower and 29.6 PTO horsepower, delivering robust strength within its compact form to effortlessly operate a diverse array of attachments.

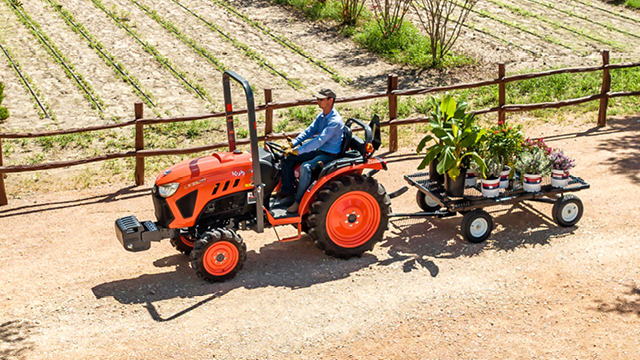

Reliable Gear Drive Transmission

Reliable Gear Drive Transmission

With 12 forward and 12 reverse gears, the Kubota LX3520N offers dependable and effortless operation, catering to a wide range of jobs and applications suitable for this nimble tractor.

Unparalleled Implement Versatility

Unparalleled Implement Versatility

The Kubota LX3520N Series, equipped with an extensive selection of performance-matched implements, purpose-built to conquer your most challenging tasks with ease.

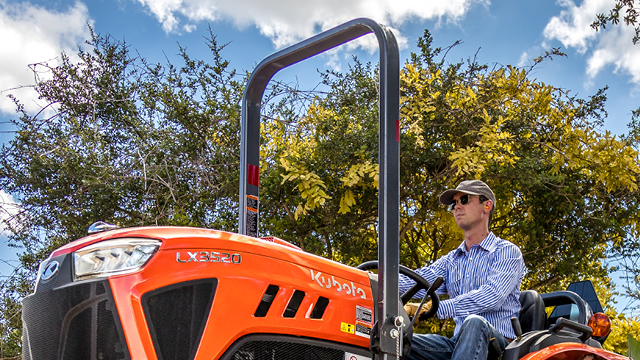

Space-Saving Foldable Center ROPS

Space-Saving Foldable Center ROPS

Designed to excel in compact environments, the Kubota LX3520N boasts a foldable center ROPS, ensuring easy maneuverability in tight spaces, under low trees, around overhead obstructions, and effortless storage in limited spaces.

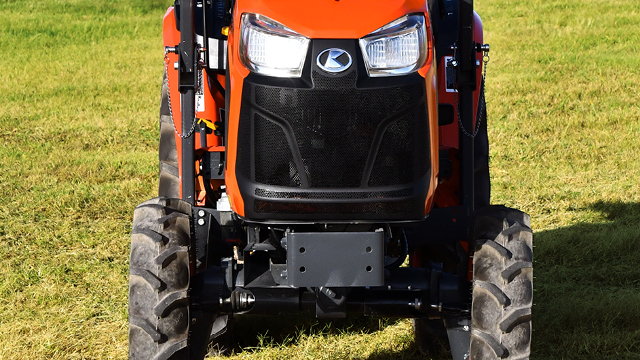

Ample Hydraulic Output

Ample Hydraulic Output

The Kubota LX3520N delivers a robust 19.7 L/min hydraulic output at the 3-point hitch, facilitating seamless operation for a variety of hydraulically driven rear attachments.

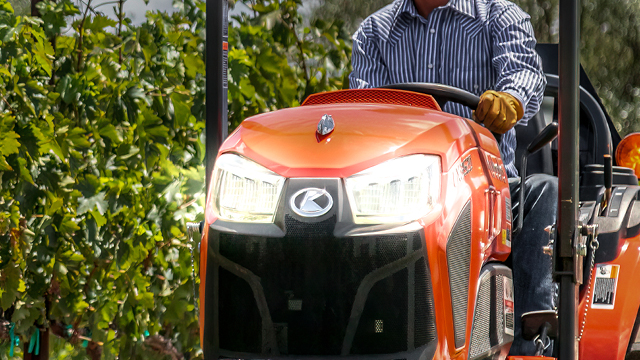

LED Headlights

LED Headlights

Keep working during nights and early mornings: LED work lights come standard for the LX3520N.

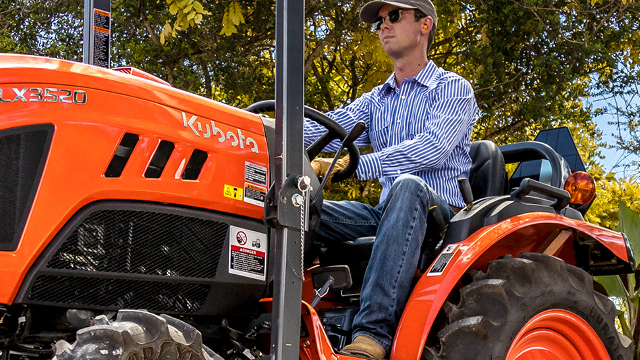

Ergonomic Lever Grips and Steering Wheel

Ergonomic Lever Grips and Steering Wheel

Enjoy easy access and smooth, low vibration in your hands and arms with every application. It’s just right, every time.

Specs

Model name LX3520DTN
Model V1505-CR-TE5-D40R6
Type Direct injection, vertical, water-cooled, 4 -cylinder diesel with turbo charger
Air pre-cleaner Paper filter with (dual element)
Bore 78.0000 mm / 3.1000 in
Stroke 78.4000 mm / 3.1000 in
Cooling system Pressurized radiator
Lubrication Forced lubrication
Radiator fan Radial air flow
Rated engine speed 2600.0000 rpm / 2600.0000 rpm
Engine gross horsepower @ rpm 26.0200 kW / 34.9000 HP
PTO horsepower 22.1000 kW / 29.6000 HP
Displacement 1498.0000 cc / 91.4000 cu. in.
Fuel tank capacity 32.0000 l / 8.5000 gal
Type Independent
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Clutch Dry type single stage
Transmission type Gear
Differential lock Standard
Brake type Multi-plate wet disc
Control system Position control
3-Point hitch Category I
Type Open center
24" behind lift point 825.0000 kg / 1819.0000 lb
At lift points 1065.0000 kg / 2348.0000 lb
Total pump output 34.5000 l/min / 9.1000 gpm
Pump type Dual pump
Hydraulic outlet Rear outlet
Steering type Hydraulic power steering
Final drive Spur gear
Ground clearance 325.0000 mm / 12.8000 in
Overall height 2134.0000 mm / 84.0000 in
Wheelbase 1550.0000 mm / 61.0000 in
Weight 977.0000 kg / 2154.0000 lb
Without 3 Pt hitch 2494.0000 mm / 98.2000 in
(min. tread) 1000.0000 mm / 39.4000 in
Front R1 7-12
Front R4 23x8.50-14
Front R14 23x8.50-14
Rear R1 12.4-16
Rear R4 12.4-16
Rear R14 14-17.5
With brake 2.1000 m / 7.5000 ft
Cooling system capacity 4.3000 l / 4.5000 qt
Engine lubricant oil capacity 4.7000 l / 5.0000 qt
Transmission oil capacity 21.0000 l / 5.5000 gal
Forward (R1) 23.6000 km/h / 14.7000 mph
Reverse (R1) 23.3000 km/h / 14.6000 mph
