Compact Tractor

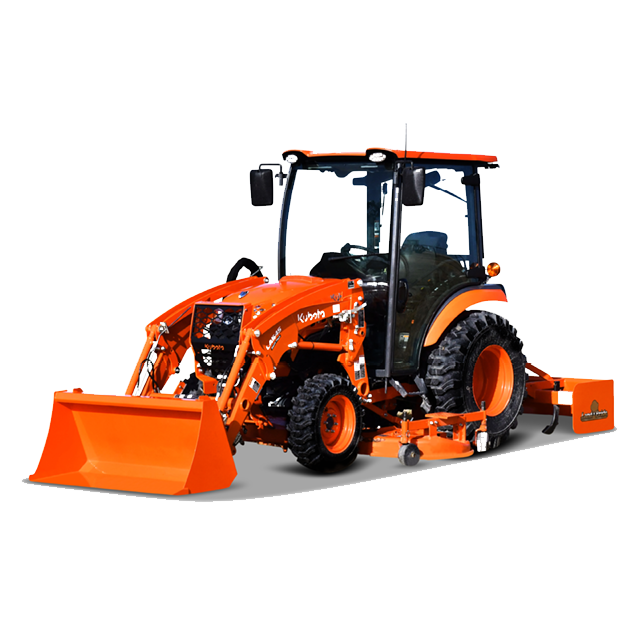

LX3520 Cab

Get A Quote

Features Specs Downloads Get A Quote

Back

Features

Spacious & comfortable premium cab

The LX20’s optional premium cab is designed to be just right for all-day comfort. Its wide doors ensure easy entry and exit, while the 4-pillar design with rounded glass provides a roomy interior and panoramic views. Equipped with standard front and rear LED lights, a rear wiper, and a defroster, this cab is ready to keep you comfortable and focused, no matter the conditions.

Compact size with plenty of power

The LX20 is just right for both residential and commercial tasks, offering a compact size with impressive power for material handling, loader work, snow removal, and property maintenance. With increased travel speed, noise reduction, and enhanced comfort, this tractor is built for easy operation and maneuverability, making it ideal for navigating tight spaces, such as clearing walkways and confined areas.

Performance-matched loader

Kubota’s Performance-Matched Loaders are just right for the LX20 series, delivering seamless integration with the tractor’s hydraulic system and controls. Engineered for versatility, these loaders support a wide range of attachments for various tasks. The premium valving allows simultaneous boom and bucket operation and a regenerative circuit for faster cycle times, the LX20 loaders enhance operator efficiency, comfort, and productivity—perfect for tackling any job with precision.

Auto throttle

The engine speed is linked to the travel speed allowing you to control the RPM with the HST pedal and set it to your desired level. The result? A more comfortable and efficient ride.

Dual engine memory switch

Quickly and easily adjust the engine RPM by pushing the dual engine memory switch.

Increased travel speed: LX3520 and LX4020 models

Choose from 26, 35 or 40 horsepower to meet your needs – whichever is just right for your needs. With increased travel speeds on the LX3520 and LX4020 models, you can reach a top speed of 27.4 km/hr, maximizing efficiency and productivity.

LED headlights

Keep working through the night and into the early morning: LED work lights are standard front and rear on LX models. Plus, with cold weather features like defroster and rear wiper, you can easily continue working even if the temperature drops.

Independent clutch-less PTO switch

Expect quick and simple engagement of the PTO through the electric switch while operating. Push and turn to start the PTO, and push to stop.

Kubota HST transmission

Match any job with the 3-range hydrostatic (HST) transmission that’s clutch-less for easy operation. Select from low range when you need extra power, mid range for normal operations, and high range when transporting. Additionally, the brake pedal is on the left side for further comfort and functionality.

Wide operator platform

The large, flat deck offers plenty of legroom and makes it easy to get in and out of the LX20. Enjoy lots of space between the fenders for room, flexibility, and comfort.

Ergonomic lever grips and steering wheel

Enjoy easy access and smooth, low vibration in your hands and arms with every application. It’s just right, every time.

Specs

Model name

LX3520HSDCC

Model	V1505-CR-TE5-D40Q4
Type	Direct injection, vertical, water-cooled, 4 -cylinder diesel with turbo charger
Air pre-cleaner	Paper filter with (dual element)
Bore	78.0000 mm / 3.1000 in
Stroke	78.4000 mm / 3.1000 in
Cooling system	Pressurized radiator
Lubrication	Forced lubrication
Radiator fan	Radial air flow
Rated engine speed	2700.0000 rpm / 2700.0000 rpm
Engine gross horsepower @ rpm	26.0200 kW / 34.9000 HP
PTO horsepower	21.4000 kW / 28.7000 HP
Displacement	1498.0000 cc / 91.4000 cu. in.
Fuel tank capacity	32.0000 l / 8.5000 gal

Type	Independent
PTO/engine speed	540.0000 rpm / 540.0000 rpm
Rated engine speed	2460.0000 rpm / 2460.0000 rpm

Clutch	N/A
Transmission type	HST (3 ranges)
Differential lock	Standard
Brake type	Multi-plate wet disc

Control system	Position control
3-Point hitch	Category I
Type	Open center
24" behind lift point	890.0000 kg / 1962.0000 lb
At lift points	1150.0000 kg / 2535.0000 lb
Total pump output	35.8000 l/min / 9.5000 gpm
Pump type	Dual pump
Hydraulic outlet	Rear outlet
Steering type	Hydraulic power steering

Final drive

Spur gear

Ground clearance	225.0000 mm / 8.9000 in
Overall height	2175.0000 mm / 85.6000 in
Wheelbase	1695.0000 mm / 66.7000 in
Weight	1190.0000 kg / 2624.0000 lb
Without 3 Pt hitch	2580.0000 mm / 101.6000 in
(min. tread)	1365.0000 mm / 53.7000 in
Front R1	7-12
Front R4	23x8.50-14
Front R14	23x8.50-14
Rear R1	12.4-16
Rear R4	12.4-16
Rear R14	14-17.5
With brake	2.3000 m / 7.5000 ft

Cooling system capacity	5.4000 l / 5.7000 qt
Engine lubricant oil capacity	4.7000 l / 5.0000 qt
Transmission oil capacity	24.0000 l / 6.3000 gal

Forward (R1)	27.4000 km/h / 17.0000 mph
Reverse (R1)	22.6000 km/h / 14.0000 mph
