Compact Tractor

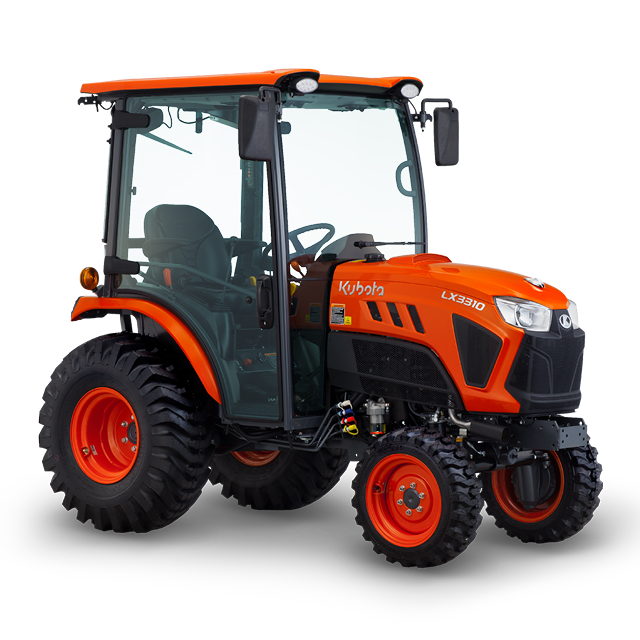

LX3310 Cab

Get A Quote

Features

Loader with optional swift-tach & self levelling

Loader with optional swift-tach & self levelling

The Mechanical Self-Levelling option allows the LX Series’ front loader to operate with additional precision while the optional Swift-Tach kit allows you to attach or detach the loader even more quickly.

Deluxe Cab

Deluxe Cab

The factory-installed cab is packed with premium features like our standard heater and air conditioner. A new seat with deeper suspension keeps you comfortable and supported as you get jobs done while the standard LED work lights and front and rear wiper and defogger provide you with optimal visibility.

Powerful Kubota diesel engine

Powerful Kubota diesel engine

The LX2610 comes with a renowned and proven 3-cylinder Kubota diesel engine. The LX3310 model features a powerful and efficient 4-cylinder Turbo, Common Rail System Kubota diesel engine. The all-new LX Series features both Open Station and Cab options and brings you great fuel economy, lower emissions as well as a high level of power, torque and performance in Canadian weather.

BH77 Backhoe

BH77 Backhoe

The BH77 is a powerful, smooth operating backhoe, with large digging depths, and comes equipped with bucket compatibility.

4 point hitch & K-Connect

4 point hitch & K-Connect

The 4-Point Hitch allows you to pick up front attachments and the K-Connect lets you engage and disengage the front Power Take-Off (PTO) easily.

60" & 72" mower options

60" & 72" mower options

Choose from a variety of reliable Kubota mid mower decks for quick quality cuts on the yard.

Affordable special utility model

Affordable special utility model

Enjoy value and quality performance with the LX2610SU variant. This model packs impressive performance, larger tire options, high front loader and 3-pt hitch lifting capacity.

Exclusive Goodyear R14 tires

Exclusive Goodyear R14 tires

Experience grippy traction on snow, ice, turf or mud with these high-quality tires.

Specs

Model name LX3310HSDCC
Model V1505-CR-TE5-D36Q1
Type E-CDIS, liquid cooled, 4-cylinder diesel
Air pre-cleaner 6.0 inch Dual paper element
Bore 78.0000 mm / 3.1000 in
Stroke 78.4000 mm / 3.1000 in
Cooling system Pressurized radiator
Lubrication Forced lubrication
Make V1505-CR-TE5-D36Q1
Radiator fan Radial air flow
Rated engine speed 2500.0000 rpm / 2500.0000 rpm
Engine gross horsepower @ rpm 23.0000 kW / 30.8000 HP
PTO horsepower 20.1000 kW / 27.0000 HP
Displacement 1498.0000 cc / 91.5000 cu. in.
Fuel tank capacity 32.0000 l / 8.4000 gal
Type Independent
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Rated engine speed 2500.0000 rpm / 2500.0000 rpm
Clutch N/A
Transmission type HST (3 ranges)
Differential lock Standard
Brake type Multi-plate wet disc
Control system Position control valve
3-Point hitch Category I
Type Open center
24" behind lift point 760.0000 kg / 1676.0000 lb
At lift points 970.0000 kg / 2139.0000 lb
Total pump output 33.1000 l/min / 8.7000 gpm
Pump type Dual pump
Hydraulic outlet Rear outlet
Steering type Hydraulic power steering
Final drive Spur gear
Ground clearance 370.0000 mm / 14.6000 in
Overall height 2150.0000 mm / 84.6000 in
Wheelbase 1666.0000 mm / 65.6000 in
Weight 1160.0000 kg / 2557.0000 lb
Without 3 Pt hitch 2640.0000 mm / 103.9000 in
(min. tread) 1365.0000 mm / 53.7000 in
Front R1 44902
Front R4 23 x 8.50-14
Front R14 23 x 8.50-12
Rear R1 12.4-16
Rear R4 12.4-16
Rear R14 14-17.5
With brake 2.1000 m / 6.9000 ft
Cooling system capacity 4.3000 l / 4.5000 qt
Engine lubricant oil capacity 4.7000 l / 5.0000 qt
Transmission oil capacity 15.0000 l / 4.0000 gal
Fuel type diesel
Forward (R1) 21.9000 km/h / 13.6000 mph
Reverse (R1) 16.5000 km/h / 10.3000 mph
Features 4-pillar integrated cabin, Cruise control (Multi-stage notch), Tilt-steering, Deluxe seat with arm r
