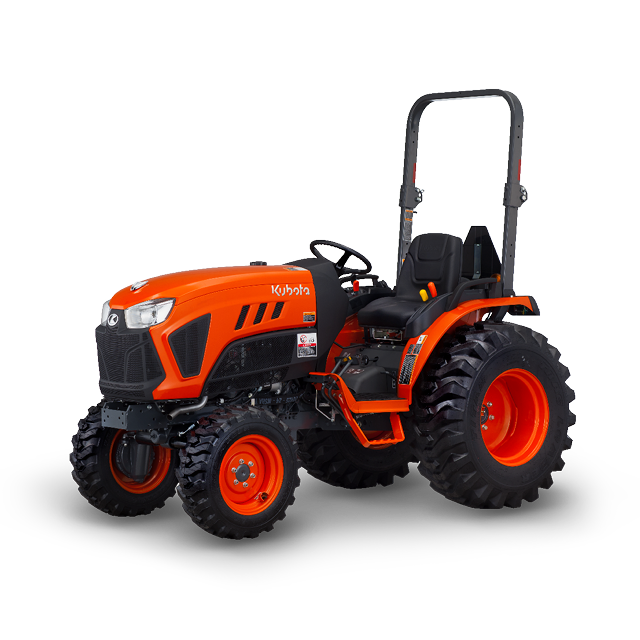

Compact Tractor

LX2620

Get A Quote

Features

Compact size with plenty of power

Compact size with plenty of power

The LX20 is just right for both residential and commercial tasks, offering a compact size with impressive power for material handling, loader work, snow removal, and property maintenance. With increased travel speed, noise reduction, and enhanced comfort, this tractor is built for easy operation and maneuverability, making it ideal for navigating tight spaces, such as clearing walkways and confined areas.

LED headlights

LED headlights

Keep working through the night and into the early morning: LED work lights are standard front and rear on LX models. Plus, with cold weather features like defroster and rear wiper, you can easily continue working even if the temperature drops.

Kubota HST transmission

Kubota HST transmission

Match any job with the 3-range hydrostatic (HST) transmission that’s clutch-less for easy operation. Select from low range when you need extra power, mid range for normal operations, and high range when transporting. Additionally, the brake pedal is on the left side for further comfort and functionality.

Wide operator platform

Wide operator platform

The large, flat deck offers plenty of legroom and makes it easy to get in and out of the LX20. Enjoy lots of space between the fenders for room, flexibility, and comfort.

Ergonomic lever grips and steering wheel

Ergonomic lever grips and steering wheel

Enjoy easy access and smooth, low vibration in your hands and arms with every application. It’s just right, every time.

Specs

Model name LX2620HSD
Model D1305-E4-D36R
Type Indirect Injection, Vertical, water cooled 3 cylinder diesel engine
Air pre-cleaner 4.5 inch Paper filter with (dual element)
Bore 78.0000 mm / 3.1000 in
Stroke 78.4000 mm / 3.5000 in
Cooling system Pressurized radiator
Lubrication Forced lubrication
Radiator fan Radial air flow
Rated engine speed 2500.0000 rpm / 2500.0000 rpm
Engine gross horsepower @ rpm 17.3700 kW / 23.3000 HP
PTO horsepower 14.4700 kW / 19.4000 HP
Displacement 1261.0000 cc / 77.0000 cu. in.
Fuel tank capacity 27.0000 l / 7.1000 gal
Type Independent
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Rated engine speed 2500.0000 rpm / 2500.0000 rpm
Clutch N/A
Transmission type HST (3 ranges)
Differential lock Standard
Brake type Multi-plate wet disc
Control system Position control
3-Point hitch Category I
Type Open center
24" behind lift point 760.0000 kg / 1676.0000 lb
At lift points 970.0000 kg / 2139.0000 lb
Total pump output 33.1000 l/min / 8.7000 gpm
Pump type Dual pump
Hydraulic outlet Rear outlet
Steering type Hydraulic power steering
Final drive Spur gear
Ground clearance 370.0000 mm / 14.6000 in
Overall height 2245.0000 mm / 88.4000 in
Wheelbase 1666.0000 mm / 65.6000 in
Weight 805.0000 kg / 1775.0000 lb
Without 3 Pt hitch 2586.0000 mm / 101.8000 in
(min. tread) 1365.0000 mm / 53.7000 in
Front R1 7-12
Front R4 23x8.50-14
Front R14 23x8.50-12
Rear R1 12.4-16
Rear R4 12.4-16
Rear R14 14-17.5
With brake 2.1000 m / 6.9000 ft
Cooling system capacity 4.3000 l / 4.5000 qt
Engine lubricant oil capacity 4.0000 l / 4.2000 qt
Transmission oil capacity 15.0000 l / 4.0000 gal
Forward (R1) 18.0000 km/h / 11.2000 mph
Reverse (R1) 13.5000 km/h / 8.4000 mph
