Specialty Tractor

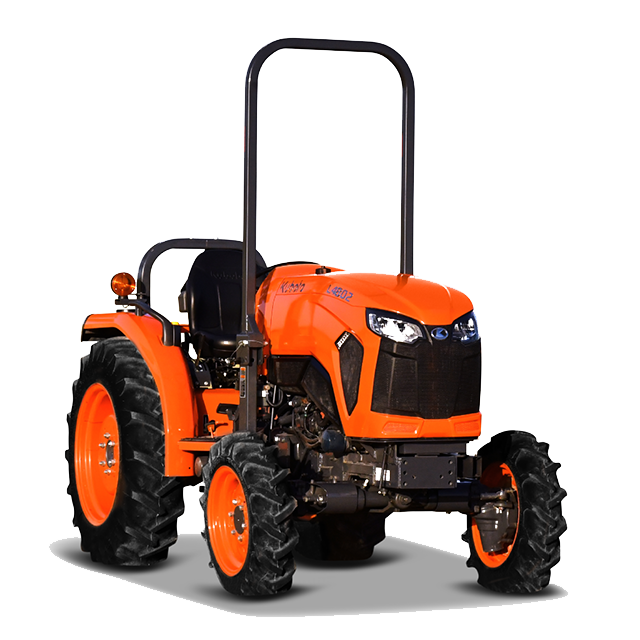

L4802N

Get A Quote

Features

Narrow and powerful

Narrow and powerful

The L02N is only 52.7” wide, specifically engineered to work in orchards, vineyards, nurseries, or anywhere else that requires a narrow tractor with L02 power and reliability.

Powerful performance

Powerful performance

With 48.4 engine horsepower and 40.5 PTO horsepower, the L02N has power in a tight package to run a wide range of attachments.

Dependable implement versatility

Dependable implement versatility

The Kubota L02N Series comes with a wide range of performance matched implements to take on your toughest jobs.

Modern styling that matters

Modern styling that matters

Updated bonnet and grille keep engine and tractor protected from the elements. Ergonomically designed lever grips and steering wheel provide easier access and smooth low vibration operation. The LED work lights deliver great visibility in tough conditions.

Foldable Center ROPS

Foldable Center ROPS

Narrow and nimble, even when storing. The Kubota L02N features a foldable center ROPS for those tight spaces with low trees, overhead obstructions and limited storage space.

Standard versatility

Standard versatility

The L4802N Narrow model comes standard with a set of rear remote valves, making it ready for a variety of applications.

Hard-working hydraulic capacity

Hard-working hydraulic capacity

The L02N’s 3pt hitch pairs with a large capacity hydraulic cylinder and pump for heavy-duty lifting capacity and performance. This also enables the unit to work well with different implements and attachments to handle a variety of applications.

Specs

Model name L4802N
Type Direct injection, vertical, water-cooled 4-cycle diesel
Bore 87.0000 mm / 3.4000 in
Stroke 102.4000 mm / 4.0000 in
Cylinders 4.0000
Rated engine speed 2600.0000 rpm / 2600.0000 rpm
Engine gross horsepower @ rpm 36.1000 kW / 48.4000 HP
Engine net horsepower @ rpm 34.3000 kW / 46.0000 HP
PTO horsepower 30.2000 kW / 40.5000 HP
Displacement 2434.0000 cc / 148.5000 cu. in.
Alternator 45.0000 A / 45.0000 A
Fuel tank capacity 51.0000 l / 13.5000 gal
Rear PTO 540
Type Live independent PTO with hydraulic clutch
Rated engine speed 2475.0000 rpm / 2475.0000 rpm
Clutch Dry type single stage or N/A
Forward 8.0000
Number of ranges 16.0000
Reverse 8.0000
Transmission type Gear-Drive Transmission & HST
Drive method 4WD
Brake type Mechanical, wet disc type
3-Point hitch Category I
Steering type Hydrostatic power steering
PS 17.9000 l/min / 4.7000 gpm
Main 29.4000 l/min / 7.8000 gpm
At lift points 1300.0000 kg / 2870.0000 lb
24" behind lift point 1053.0000 kg / 2320.0000 lb
System pressure 180.0000 kg/cm2 / 17.7000 psi
Lift control type Position control
Battery 580.0000 A / 580.0000 A
Fuel type diesel
Forward 20.8000 km/h / 12.9000 mph
Reverse 20.0000 km/h / 12.4000 mph
With brake 2.7000 m / 8.9000 ft
Rear 1050.0000 mm / 41.3000 in
Front 1055.0000 mm / 41.5000 in
Rear 11.2-24
Front 7.2 - 16
(min. tread) 1365.0000 mm / 53.7000 in
Without 3 Pt hitch 2990.0000 mm / 117.7000 in
Open Station 2410.0000 mm / 94.9000 in
Weight 1525.0000 kg / 3362.0000 lb
Wheelbase 1845.0000 mm / 72.6000 in
Ground clearance 295.0000 mm / 11.6000 in
