Compact Tractor

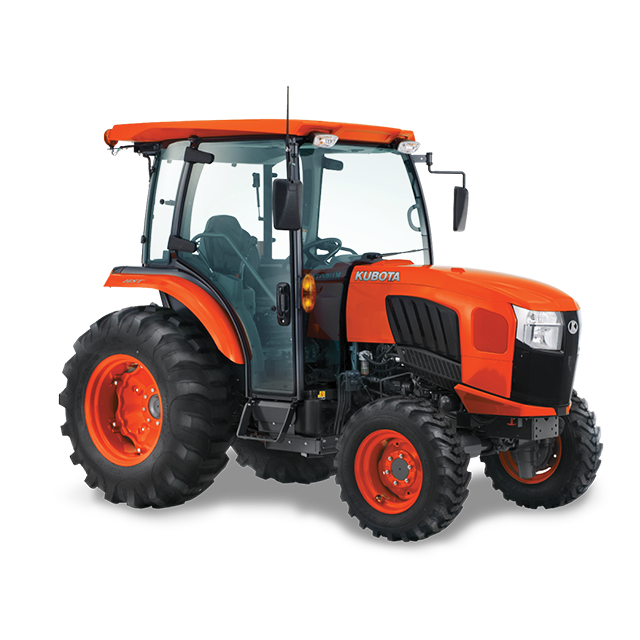

L3560 Cab

Get A Quote

Features

HST PLUS transmission option

HST PLUS transmission option

Tackle any task with ease and efficiency. With startling precision, HST Plus’s automated control of both the HST pump and drive motor gives you optimal performance, regardless of the task, working conditions, or operator expertise. This technology incorporates the popular light and smooth pedal feel of Kubota’s traditional HST feather step control to provide the Grand L60 with a comfortable, easy-to-operate, and high-performance HST.

4-wheel drive

4-wheel drive

The 4-wheel drive of the Grand L60 provides superior pulling power and traction in almost any working condition. The front-wheel-drive bevel gear delivers a smooth and full-power transfer. Combined with its 55° steering angle and compact differential, the Grand L60’s 4-wheel drive gives you the maneuverability and exceptional clearance you need for a wide range of applications.

Front loader hydraulic valve

Front loader hydraulic valve

Kubota has designed an integral Front Loader Valve as part of the tractor. With this valve, you can quickly and easily attach the front loader and other front-mounted implements. The valve promotes efficient, clutter-free operation and matches the sleek styling of the tractor. If you don’t require a front loader or other front-mounted implements, an optional Diverter Kit is available to allow the loader valves to function as rear remotes.

HST mode selection stall guard plus auto H-DS

HST mode selection stall guard plus auto H-DS

Choose from three HST mode settings with a simple push of a button from the IntelliPanel to help you get your work done easier. Manual mode puts you in complete control of the tractor. Kubota’s Stall Guard PLUS protects the engine and PTO from stalling in heavy-duty applications. Finally, AUTO H-DS (Auto Hydro Dual Speed) enables automatic Hi/Lo shifting, and in conjunction with Stall Guard PLUS, keeps your tractor running optimally at all times.

Hydro dual speed (H-DS)

Hydro dual speed (H-DS)

Kubota’s HST Plus gives you more control. Featuring three speed ranges, it includes a steering column lever to shift between high and low speeds for each range, expanding your options to six total speeds. Once your preferred range is set, you can easily shift the H-DS between the high and low speeds while moving. And with a simple touch of the Mode Selection button, you can activate the Auto H-DS for automatic Hi/Lo shifting. Whether you’re doing loader work or driving up a slope, you’ll appreciate this versatility and efficiency.

Specs

Model name L3560HSTCC
Type E-TVCS, indirect injection, vertical, liquid-cooled 4-cycle diesel
Aspiration Natural with EGR
Bore 87.0000 mm / 3.4000 in
Stroke 102.4000 mm / 4.0000 in
Cylinders 3.0000
Rated engine speed 2700.0000 rpm / 2700.0000 rpm
Engine gross horsepower @ rpm 27.6000 kW / 37.0000 HP
Engine net horsepower @ rpm 26.1000 kW / 35.0000 HP
PTO horsepower 20.9000 kW / 28.0000 HP
Displacement 1826.0000 cc / 111.4000 cu. in.
Alternator 60.0000 A / 60.0000 A
Fuel tank capacity 51.0000 l / 11.2000 gal
Mid-PTO Option
Type Independent
Revolution 1.0000
Revolution 1.0000
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Rated engine speed 2000.0000 rpm / 2000.0000 rpm
Clutch Dry type single stage
Transmission type HSTCC
Brake type Wet disc type
Forward 3.0000
Reverse 3.0000
Drive method 4WD
3-Point hitch Category I
Draft control Option
Implement pump 31.5000 l/min / 8.3000 gpm
Position control Standard
Power steering pump 18.6000 l/min / 4.9000 gpm
Total hydraulic flow 50.1000 l/min / 13.2000 gpm
24" behind lift point 1200.0000 kg / 2650.0000 lb
Steering type Hydrostatic power steering
Remote valves 1st, 2nd Std. (3rd Opt.)
Ground clearance 342.0000 mm / 13.5000 in
Wheelbase 1805.0000 mm / 71.1000 in
Weight 1745.0000 kg / 3847.0000 lb
Open Station 2300.0000 mm / 90.6000 in
Without 3 Pt hitch 2920.0000 mm / 115.0000 in
(min. tread) 1520.0000 mm / 59.8000 in
Front 7.2-16
Rear 12.4-24
Front 1155.0000 mm / 45.5000 in
Rear 1200.0000 mm / 47.2000 in
With brake 2.7000 m / 8.9000 ft
Battery 582.0000 A / 582.0000 A
Fuel type diesel
Low 3.4000 km/h / 2.1000 mph
Medium 6.9000 km/h / 4.3000 mph
High 15.9000 km/h / 9.9000 mph
Low 5.6000 km/h / 3.5000 mph
Medium 11.5000 km/h / 7.1000 mph
High 26.5000 km/h / 16.5000 mph
Low 3.0000 km/h / 1.9000 mph
Medium 6.2000 km/h / 3.9000 mph
High 14.3000 km/h / 8.9000 mph
Low 5.1000 km/h / 3.2000 mph
Medium 10.3000 km/h / 6.4000 mph
High 23.9000 km/h / 14.9000 mph
