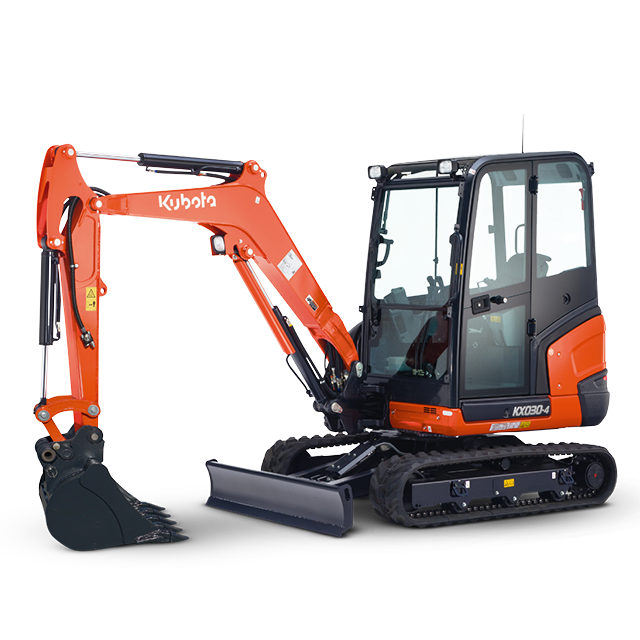

Mini-Excavator

KX030-4

Get A Quote

Features

Compact 4’11” width

Compact 4’11” width

The KX030-4 is powerful but compact: its 4’11” (1500 mm) width enables it to fit into tight spaces. It can handle tough jobs, too, with its bucket digging force of 6924 lbs. within a design that’s well-balanced and efficient

Easily and safely towable

Easily and safely towable

Get it to the job site without extra effort. The Cab model weighs under 7000 lbs. so it can be towed with a standard license, depending on weight of trailer. And to get it there safely, tie-down points are found on the track frame, swivel frame, and dozer.

Largest Cab in its class

Largest Cab in its class

Operator comfort is a priority. That’s why the Kubota KX030-4 features the largest cab in the class, along with a large door entrance to suit any size of operator. Inside, there’s plenty of floor space and leg room.

Auxiliary flow adjustment

Auxiliary flow adjustment

Keep the job moving smoothly: with a thumb-operated switch on the control lever, the auxiliary flow adjustment keeps oil flowing where you need it, with return to tank capability for one-way flow attachments such as the Kubota Hydraulic Breaker.

2-speed with auto shift

2-speed with auto shift

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations. The auto-shift system enables automatic travel shift from high to low depending on traction effort and terrain. This gives smoother operations when dozing and turning.

Thumb bracket and relief valves

Thumb bracket and relief valves

The factory installed mount brackets and hydraulics significantly reduce the time needed to mount accessories.

Dozer blade float

Dozer blade float

You don’t need to adjust the dozer height to make a clean ground surface. After backfilling, just travel backward along the covered ditch with the dozer in the float position. Ground finishing work is now fast and easy!

Two Pattern Selector System (TPSS)

Two Pattern Selector System (TPSS)

The Two-Pattern Selection System positioned under the seat allows the operator to shift control styles conveniently while seated. A simple turn of a switch is all it takes to select between the ISO pattern and the SAE backhoe pattern. This standard feature allows operators to choose their preferred choice of operation for comfort and efficiency.

Specs

Model name KX030-4
Model V1505-E4-BH-3USA
Rated engine speed 2250.0000 rpm / 2250.0000 rpm
Output (SAE J1995 gross) 18.4000 kW / 24.7000 HP
Output (SAE J1349 net) 17.7000 kW / 23.7000 HP
Auxiliary hydraulic flow
Pump capacity 31.5000 l/min / 8.3000 gpm
Bucket 3140.7000 kgf / 6824.0000 lbf
Arm 1580.6000 kgf / 3484.0000 lbf
Ground clearance 295.0000 mm / 11.6000 in
Overall height 2420.0000 mm / 95.0000 in
Overall length 4600.0000 mm / 181.1000 in
Overall width 1500.0000 mm / 59.0000 in
Width 1500.0000 mm / 59.0000 in
Height 300.0000 mm / 11.8000 in
Maximum lift above ground 352.0000 mm / 13.8000 in
Maximum drop below ground 345.0000 mm / 13.5000 in
Including operator’s weight @ 175 lbs. 6426.0000 kg / 6272.0000 lb
Type Rubber / Steel
Low 2.7000 km/h / 1.7000 mph
High 4.3000 km/h / 2.7000 mph
Maximum traction force 3325.0000 kgf / 7330.0000 lbf
Crawler length 1980.0000 mm / 77.9000 in
Shoe width 300.0000 mm / 11.8000 in
Ground contact pressure 0.2700 kg/cm2 / 3.9000 psi
Tumbler distance 1560.0000 mm / 61.4000 in
Unit swing speed 9.2000 rpm / 9.2000 rpm
Left 76.0000 deg / 76.0000 deg
Right 57.0000 deg / 57.0000 deg
Reservoir 33.9000 l / 9.0000 gal
System 52.0000 l / 13.7000 gal
Reservoir 48.0000 l / 12.7000 gal
Type Canopy / Cab
