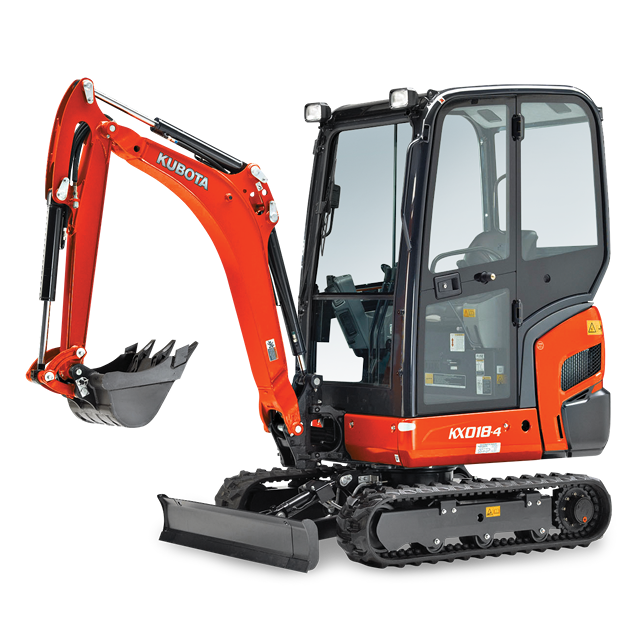

Mini-Excavator

KX018-4

Get A Quote

Features

Kubota tier 4 diesel engine

Kubota tier 4 diesel engine

Greater Efficiency, Clean Burning with Low Noise and Vibration

Stability & lifting

Stability & lifting

The KX018-4’s superior stability is due to its long tumbler distance and wide variable track width. It enables you to safely perform jobs using a host of Kubota attachments. And Kubota’s unique hydraulic system, together with a powerful boom cylinder, delivers the lifting power you need to broaden your range of lifting jobs. Combined, you get an advanced hydraulic system that automatically regulates and distributes the optimum amount of oil to each cylinder, based on the weight of the load for smooth, responsive and stable lifting ability.

Thumb option

Thumb option

Excavators are only as good as the tools that are attached to the arm such as buckets. Kubota Canada Limited offers a thumb option that turns the KX018 into a multi purpose tool. The thumb allows you to grab objects with ease and keep your load in your bucket.

Variable track gauge

Variable track gauge

Variable track gauge to optimize stability when using heavy attachments, the KX018-4 tracks can be expanded to a maximum of 4'3.2" and retracted to 3'3.0" to make passing through narrow doorways and tight work possible. Either adjustment can be made in just seconds by operating the independent track gauge lever.

2-speed with auto-shift

2-speed with auto-shift

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations. The auto-shift system enables automatic travel shift from high to low depending on traction effort and terrain. This gives smoother operations when dozing and turning.

Comfort & convenience

Comfort & convenience

A spacious operator station designed for greater comfort, with a fully flat floor for more legroom, digital panel with easy access, simple settings and easy-to-read indicators and alerts. An option, the cab allows for easy entry and exit, with an easy-open front slide window.

Changeable pattern control

Changeable pattern control

Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.

Auxiliary hydraulic system

Auxiliary hydraulic system

The KX018’s auxiliary hydraulic system accommodates a variety of attachments, such as breakers and augers. Standard equipment includes port pipes on the arm, bi-directional auxiliary hydraulic controls, and a control valve. The auxiliary hydraulic connections are located within easy reach and incorporate short hoses that are less likely to become tangled or damaged.

Specs

Model name KX018-4
Model Kubota D902-BH-E4
Make Kubota
Rated engine speed 2300.0000 rpm / 2300.0000 rpm
Displacement 898.0000 cc / 54.8000 cu. in.
Output (SAE J1995 gross) 11.4000 kW / 15.3000 HP
Output (SAE J1349 net) 11.6000 kW / 15.5000 HP
Auxiliary hydraulic flow
Pump capacity 17.3000 l/min / 4.6000 gpm
Bucket 1630.0000 kgf / 3594.0000 lbf
Arm 840.0000 kgf / 1852.0000 lbf
Ground clearance 160.0000 mm / 6.3000 in
Overall height 2350.0000 mm / 92.5000 in
Overall length 3710.0000 mm / 146.1000 in
Overall width 990.0000 mm / 39.0000 in
Width 1300.0000 mm / 51.2000 in
Height 230.0000 mm / 9.1000 in
Maximum lift above ground 230.0000 mm / 9.1000 in
Maximum drop below ground 230.0000 mm / 9.1000 in
Including operator’s weight @ 175 lbs. 1795.0000 kg / 3957.0000 lb
Type Rubber
Low 2.2000 km/h / 1.4000 mph
High 4.0000 km/h / 2.6000 mph
Maximum traction force 2060.0000 kgf / 4542.0000 lbf
Crawler length 1590.0000 mm / 62.6000 in
Shoe width 230.0000 mm / 9.1000 in
Ground contact pressure 0.2600 kg/cm2 / 3.7000 psi
Tumbler distance 1230.0000 mm / 49.0000 in
Unit swing speed 9.1000 rpm / 9.1000 rpm
Left 75.0000 deg / 75.0000 deg
Right 60.0000 deg / 60.0000 deg
Reservoir 15.5000 l / 4.1000 gal
System 28.0000 l / 7.4000 gal
Reservoir 21.0000 l / 5.6000 gal
Type Canopy or Cab
