Track Carrier

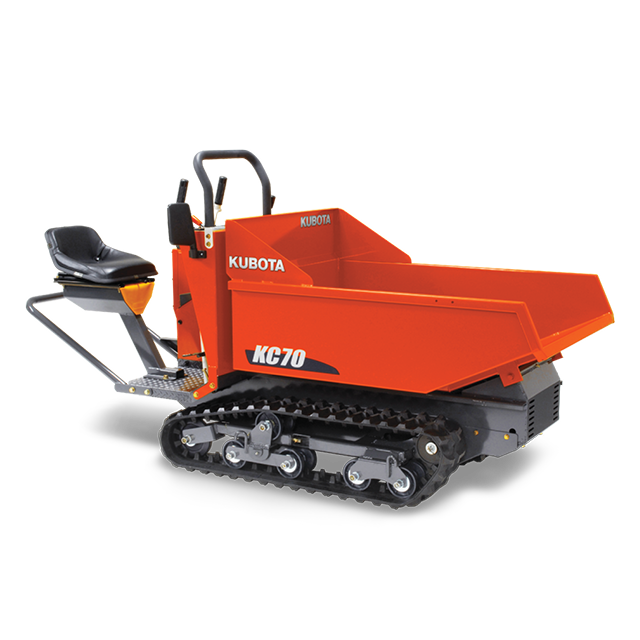

KC70

Get A Quote

Features

Clean, environmentally friendly engine

Clean, environmentally friendly engine

Tough and dependable, the Kubota diesel engine delivers high orque and high output, with optimal fuel efftciency to minimizing operating costs. This diesel engine incorporates the unique combustion method developed by Kubota in our ongoing commitment to deaner emissions, enhanced power. The engine complies with even the toughest regulations now being globally enforced - including the EPA Tier-4 regulations.

Large load capacity

Large load capacity

Though quite compact, the KC-Series of Kubota rubber track carriers feature notably large load capacities - 1,543 lbs (700 kg) for the KC70 and 2,646 lbs (1200 kg) for the KC120HC.

Generous dumping angles

Generous dumping angles

The KC70 provides a generous 68° dumping angle in the forward direction. As for the KC120HC, it has a 56° clumping angle in the forward direction as well as 6 1" to either the right or the left.

Compact design

Compact design

To more easily pass through gates and between structures in close proximity as well as to negotiate otherwise proh itively narrow spaces, models in the KC Series feature exceptionally efficient compactness. The width of the KC70 is a slender 34.6 in. while that for the KC120HC is a trim 37.4 in.

Travel & traction

Travel & traction

The flexible bogie style under rollers absorb shock and help contribute to smoother and more stable travel even on rough surface. The long rubber crawler distributes weight better than some wheeled machines for better traction and less damage on soft ground. A single range of running speeds improves turning performance and running speed under heavy loads. Increased traction force also helps to improve travel performance.

Easy one-touch seat adjustment

Easy one-touch seat adjustment

The KC120HC-4S’s new slide lever simplifies adjusting the seat backwards and forwards.

Specs

Model name KC70
Model KUBOTA OC60
Cylinders 1.0000
Rated engine speed 1700.0000 rpm / 1700.0000 rpm
Engine gross horsepower @ rpm 4.1000 kW / 5.6000 HP
Displacement 276.0000 cc / 17.0000 cu. in.
Fuel tank capacity 3.5000 l / 0.9200 gal
Ground clearance 130.0000 mm / 5.1000 in
Weight 450.0000 kg / 922.0000 lb
Length 2415.0000 mm / 95.1000 in
Width 880.0000 mm / 34.6000 in
Maximum payload capacity 700.0000 kg / 1543.0000 lb
Height 1310.0000 mm / 51.6000 in
Track centre-to-centre distance 620.0000 mm / 24.4000 in
Length 1250.0000 mm / 49.2000 in
Width 820.0000 mm / 32.3000 in
Height 360.0000 mm / 13.8000 in
Capacity - struck 0.3000 m3 / 0.3900 yd3
Capacity - heaped 0.3600 m3 / 0.4700 yd3
Track width 200.0000 mm / 7.9000 in
Length of track on ground 980.0000 mm / 38.9000 in
Type Mechanical
Forward 3.0000
Reverse 3.0000
Forward 5.0000 km/h / 3.1000 mph
Reverse 4.8000 km/h / 2.9000 mph
Dumping system Hydraulic
Dumping direction Front
Approx. 68.0000 deg / 68.0000 deg
