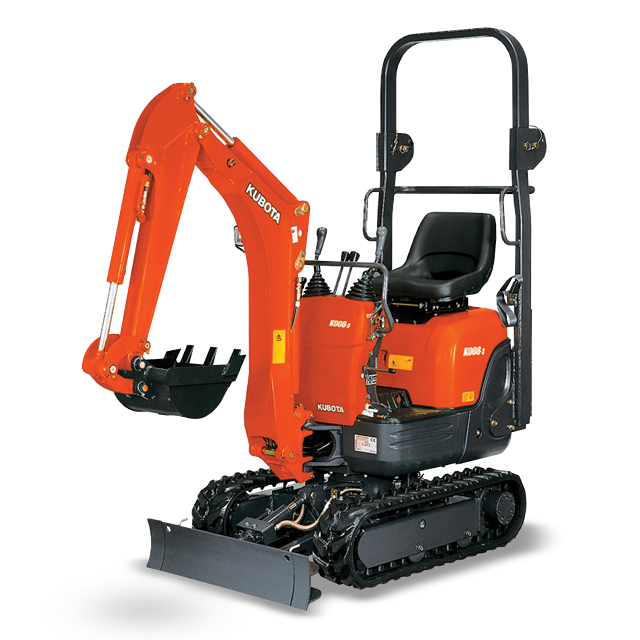

Mini-Excavator

K008-5

Get A Quote

Features

Kubota Tier 4 Diesel Engine

Kubota Tier 4 Diesel Engine

Powerful and dependable, the K008-5’s diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency, and complies with the EPA’s 2008 Tier IV emissions regulations.

Two Pattern Selector System (TPSS)

Two Pattern Selector System (TPSS)

TPSS is standard equipment, allowing the operator to select the most familiar operating control pattern, either ISO or SAE.

Adjustable Width Track Frame

Adjustable Width Track Frame

To enable passage through narrow spaces such as doorways and gates, the adjustable width track frame can reduce the K008-5’s track width down to 2’4”(700 mm) by simply operating a single lever. Plus, changing the blade width is as easy as removing one pin by hand.

Foldable Open Station

Foldable Open Station

Rollover Protective Structure provides you with an extra measure of safety. It folds down to make easier transporting and storage of the excavator.

Two-Speed Travel

Two-Speed Travel

Need to make up time? Step on the K008-5’s hi-speed pedal, and you’ll maneuver around job sites faster than any other compact excavator in its class.

Comfortable Operator's Seat

Comfortable Operator's Seat

Well padded and contoured, you’ll truly appreciate the comfort of its operator’s seat, especially during long days of operation.

Pedal-Operated Boom Swing

Pedal-Operated Boom Swing

A convenient toe-heel pedal lets you easily operate both the boom swing left to right.

Specs

Model name K008-5
Model Kubota D722-E3
Make Kubota
Rated engine speed 2050.0000 rpm / 2050.0000 rpm
Displacement 719.0000 cc / 44.0000 cu. in.
Output (SAE J1995 gross) 7.7000 kW / 10.3000 HP
Output (SAE J1349 net) 7.5000 kW / 10.1000 HP
Auxiliary hydraulic flow
Pump capacity 21.0000 l/min / 5.5500 gpm
Bucket 1000.0000 kgf / 2200.0000 lbf
Arm 460.0000 kgf / 1010.0000 lbf
Ground clearance 150.0000 mm / 69.0000 in
Overall height 2230.0000 mm / 88.0000 in
Overall length 2750.0000 mm / 9.0000 in
Overall width 860.0000 mm / 34.0000 in
Transport width 700.0000 mm / 28.0000 in
Width 860.0000 mm / 34.0000 in
Height 200.0000 mm / 7.9000 in
Maximum lift above ground 200.0000 mm / 7.9000 in
Maximum drop below ground 180.0000 mm / 7.1000 in
Operating weight 921.0000 kg / 2025.0000 lb
Including operator’s weight @ 175 lbs. 1000.0000 kg / 2200.0000 lb
Type Rubber
Low 2.0000 km/h / 1.2000 mph
High 4.0000 km/h / 2.5000 mph
Maximum traction force 770.0000 kgf / 1695.0000 lbf
Crawler length 1230.0000 mm / 48.0000 in
Shoe width 180.0000 mm / 85.0000 in
Ground contact pressure 0.2500 kg/cm2 / 3.5500 psi
Unit swing speed 8.3000 rpm / 8.3000 rpm
Left 55.0000 deg / 55.0000 deg
Right 60.0000 deg / 60.0000 deg
Reservoir 12.5000 l / 3.3000 gal
System 17.0000 l / 4.4900 gal
Reservoir 12.0000 l / 3.1700 gal
