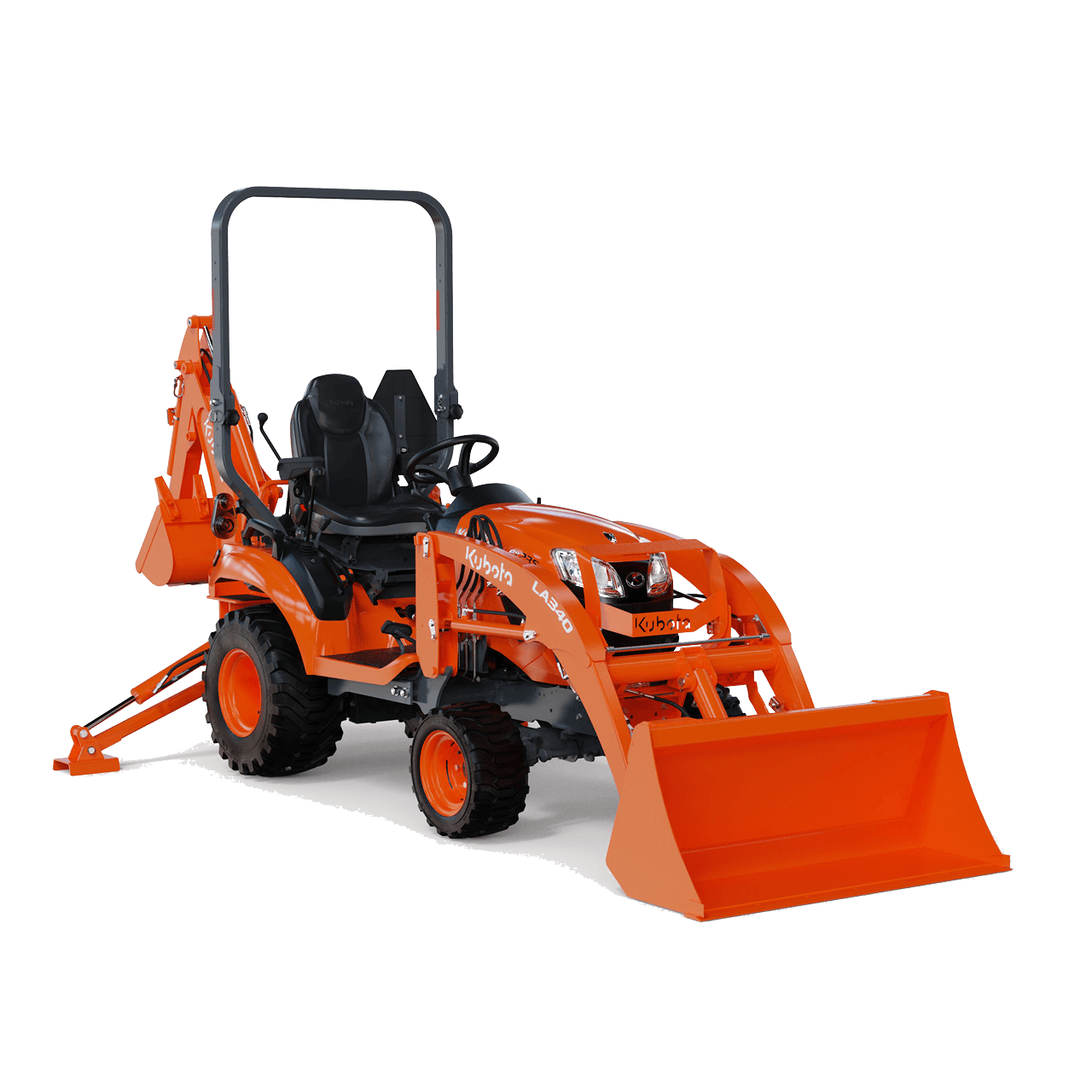

With Loader and Backhoe

BX23S

Get A Quote

Features

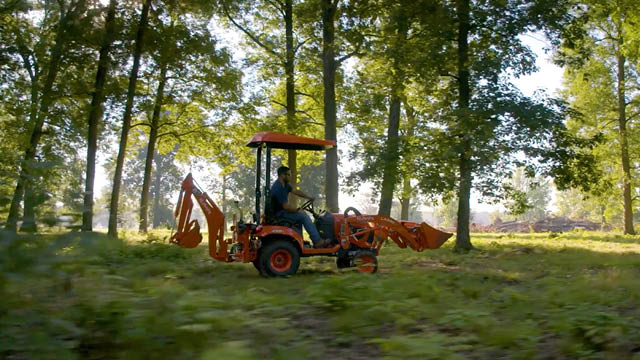

Kubota diesel engine

Kubota diesel engine

Kubota diesel engines are known worldwide for their exceptional power and durability. The BX23S offers a 3-cylinder diesel engine option with 21.6 horsepower, bringing unmatched strength and reliability to a compact frame. Precision-engineered to handle your toughest tasks, this machine is built to last, delivering all the muscle you need to tackle heavy-duty projects with ease.

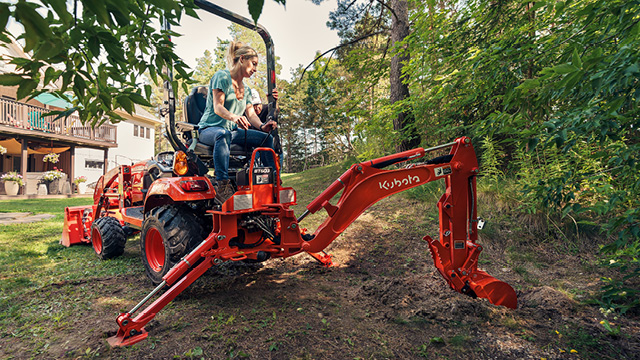

Year-round versatility

Year-round versatility

A true jack-of-all-trades, the BX23S is engineered to take on any job, any time. With over 40 Kubota-built implements available, this compact powerhouse adapts effortlessly to tasks like mowing, digging, plowing, snow blowing, and hauling. Ready for every season, the BX23S empowers you to work confidently year-round, no matter the challenge.

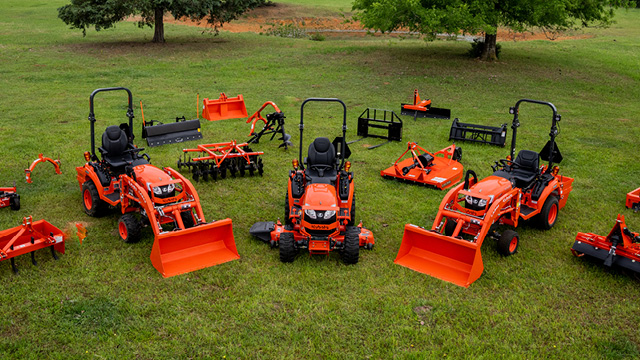

Compact and mighty

Compact and mighty

Compact yet powerful, the BX23S maneuvers effortlessly in tight spaces, with a size comparable to a standard yard tractor that’s gentle on turf. Don’t be fooled by its compact frame—this tractor is equipped to tackle a wide range of demanding tasks, proving that big capability can come in a small package.

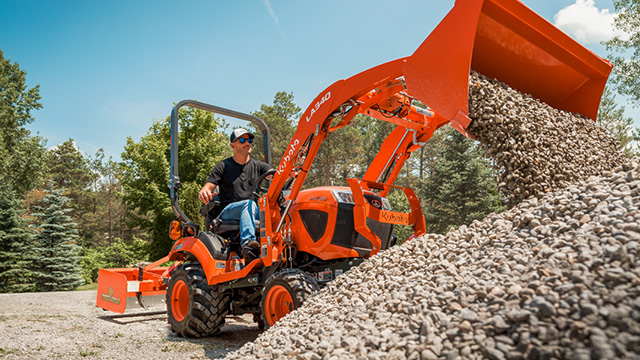

All-day comfort

All-day comfort

Experience superior comfort and efficiency with the BX23S’s deluxe high-back seat. Designed for long hours, it features adjustable armrests, soft cushioning, and a reclining design for optimal support. The seat’s smooth rotation allows quick transitions between tractor and backhoe operation, so you can handle demanding tasks comfortably and keep performing at your best all day.

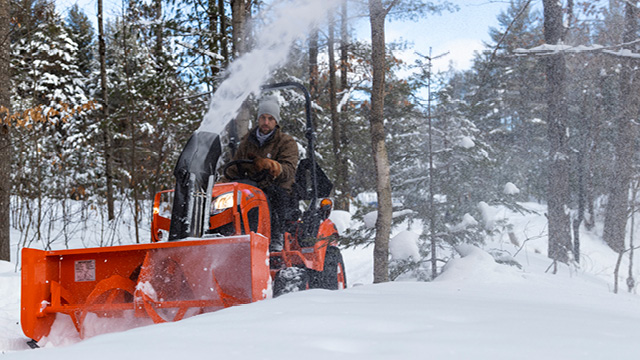

Time-saving K-Connect for front implements

Time-saving K-Connect for front implements

The K-Connect 4 point hitch allows you to connect front implements like a snowblower or blade in no time including the PTO connection with the touch of a lever.

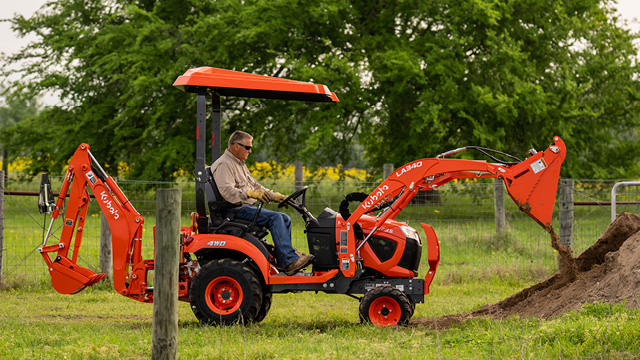

Intuitive operation

Intuitive operation

An intuitive interface for smooth, safe, and efficient tractor operation. Instantly grasp your tractor’s vital information with a single glance at the redesigned panel. The prominent tachometer, featuring an orange indicator, guides you to the optimal rpm range for loader and backhoe tasks.

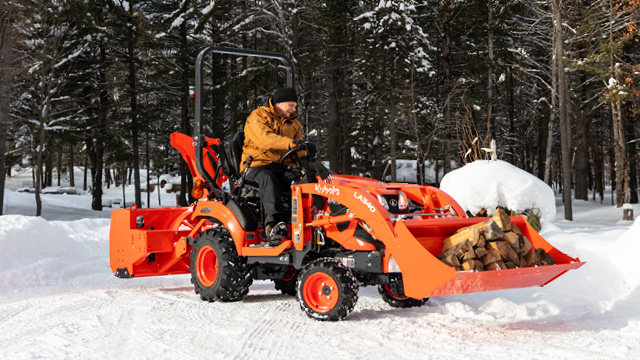

Exceptional ground clearance

Exceptional ground clearance

The BX Series provides plenty of ground clearance - 7.6 inches for the BX1880, 8.4 inches for BX2380/ BX2680/BX23S - to get you over rocks and other objects in your path.

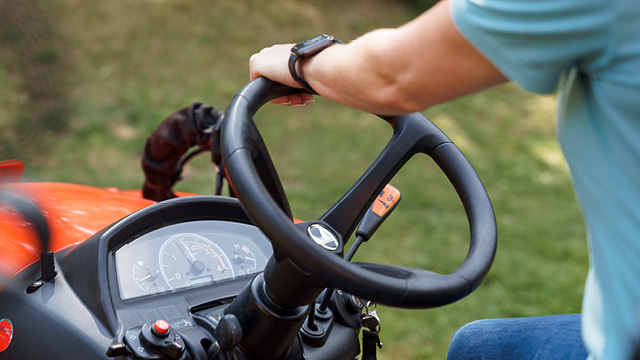

Telematics - Optional

Telematics - Optional

Now available with KubotaNOW Telematics. With KubotaNOW you can access important information on your tractor including GPS location, geofence, restart inhibit, alerts, machine status and battery level.

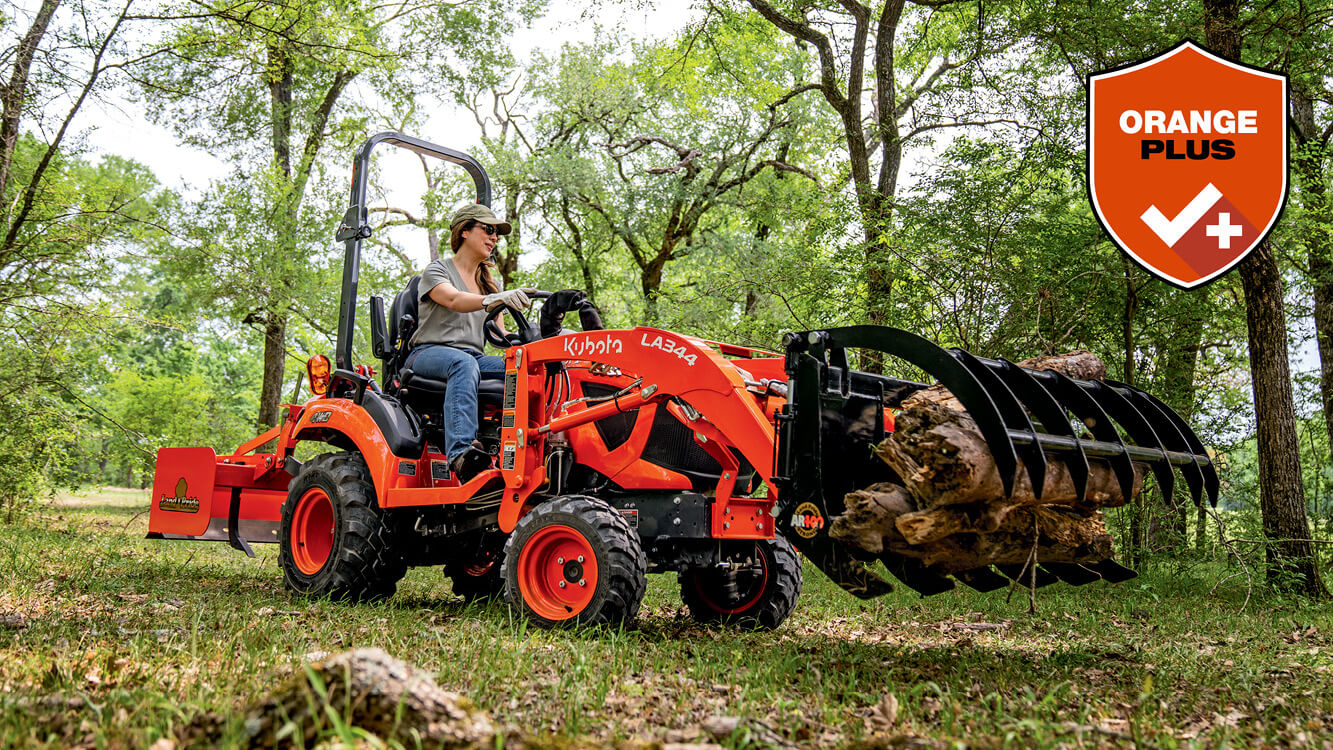

Dual functionality loader

Dual functionality loader

Our exclusive Kubota designed front loader valve makes operations more intuitive and flexible, by allowing the operator to raise or lower the boom while curling or dumping the bucket. Perfect for experienced and first-time users alike.

Specs

Overall width 1145.0000 mm / 45.1000 in
Wheelbase 1400.0000 mm / 55.1000 in
Top of Open Station 2190.0000 mm / 86.2000 in
With 3 Pt hitch 4541.5200 mm / 178.8000 in
Front 930.0000 mm / 36.6000 in
Rear 820.0000 mm / 32.2000 in
Without brake 2.3000 m / 7.5000 ft
Open Station 1220.0000 kg / 2689.0000 lb
Ground clearance 193.0000 mm / 7.6000 in
Fuel tank capacity 25.0000 l / 6.6000 gal
Displacement 898.0000 cc / 54.8000 cu. in.
PTO @ rpm 13.2000 kW / 17.7000 HP
Engine gross horsepower @ rpm 16.1000 kW / 21.6000 HP
Rated engine speed 3200.0000 rpm / 3200.0000 rpm
Cylinders 3.0000
Cooling system Liquid-cooled
Type Liquid-cooled, 3-cylinder diesel
Model Kubota D902
Fuel type Diesel
Front N.A.
Rear N.A.
Front 18×8.5–10
Rear 26×12–12
Front 18×8.5–10
Rear 26×12–12
Forward 13.5000 km/h / 8.4000 mph
Reverse 10.5000 km/h / 6.5000 mph
Drive method 4WD
Brake type Wet disc
Transmission type HST, High-Low gear shift ( 2 forward / reverse )
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Rated engine speed 2500.0000 rpm / 2500.0000 rpm
Type Live independent PTO (with hydraulic clutch)
Rear PTO Standard
Mid-PTO Standard
Steering type Hydrostatic Power Steering
Total pump output 23.5000 l/min / 6.2000 gpm
24" behind lift point 310.0000 kg / 680.0000 lb
3-Point hitch Optional
Model name BX23S
