Sub-Compact Tractor

BX1880

Get A Quote

Features

Kubota diesel engine

Kubota diesel engine

Built with world-leading technology, the Kubota BX80 series boasts a durable 3-cylinder diesel engine, meticulously engineered for lasting performance. With options ranging from 16.6 to 23.3 horsepower, these engines bring impressive muscle to a compact chassis, making them the workhorses of the sub-compact class. Tested in temperatures as low as -35°C, the BX80’s powertrain and hydraulics are seamlessly integrated to deliver unmatched reliability—even in Canada’s harshest winters.

Year-round versatility

Year-round versatility

The ultimate jack-of-all-trades, the BX80 Series adapts effortlessly with Kubota’s Swift-Tach loader and K-Connect hitch system, making attachment changes quick and easy. With over 50 performance-matched implements available, this compact powerhouse is ready to handle any task—from mowing and digging to plowing and snow blowing—so you can conquer every season with confidence.

Compact and mighty

Compact and mighty

With a compact size comparable to a standard lawn tractor, the BX80 Series is designed for easy operation and exceptional maneuverability in tight spaces - it also means they’re gentle on your lawn. Despite its compact footprint, this tractor delivers big power and capability, handling a wide range of tasks with ease.

All-day comfort

All-day comfort

Experience unmatched comfort with the BX80’s deluxe high-back seat, designed for all-day support. Adjustable armrests and soft cushioning make even the longest tasks comfortable, while the intuitive ergonomic layout ensures every control is within easy reach.

Time-saving K-connect for front implements

Time-saving K-connect for front implements

The K-Connect 4 point hitch allows you to connect front implements like a snowblower or blade in no time including the PTO connection with the touch of a lever.

Intuitive operation

Intuitive operation

An intuitive interface for smooth, safe, and efficient tractor operation. Instantly grasp vital information with a single glance at the redesigned panel. The prominent tachometer, featuring an orange indicator, guides you to the optimal rpm range for loader and backhoe tasks.

Exceptional ground clearance

Exceptional ground clearance

Enjoy a generous ground clearance of 7.6 inches for the BX1880 and an even higher 8.4 inches for the BX2380, BX2680, and BX23S models. Easily glide over rocks, tree roots, and any other challenging obstacles in your way without breaking a sweat.

Dual functionality loader

Dual functionality loader

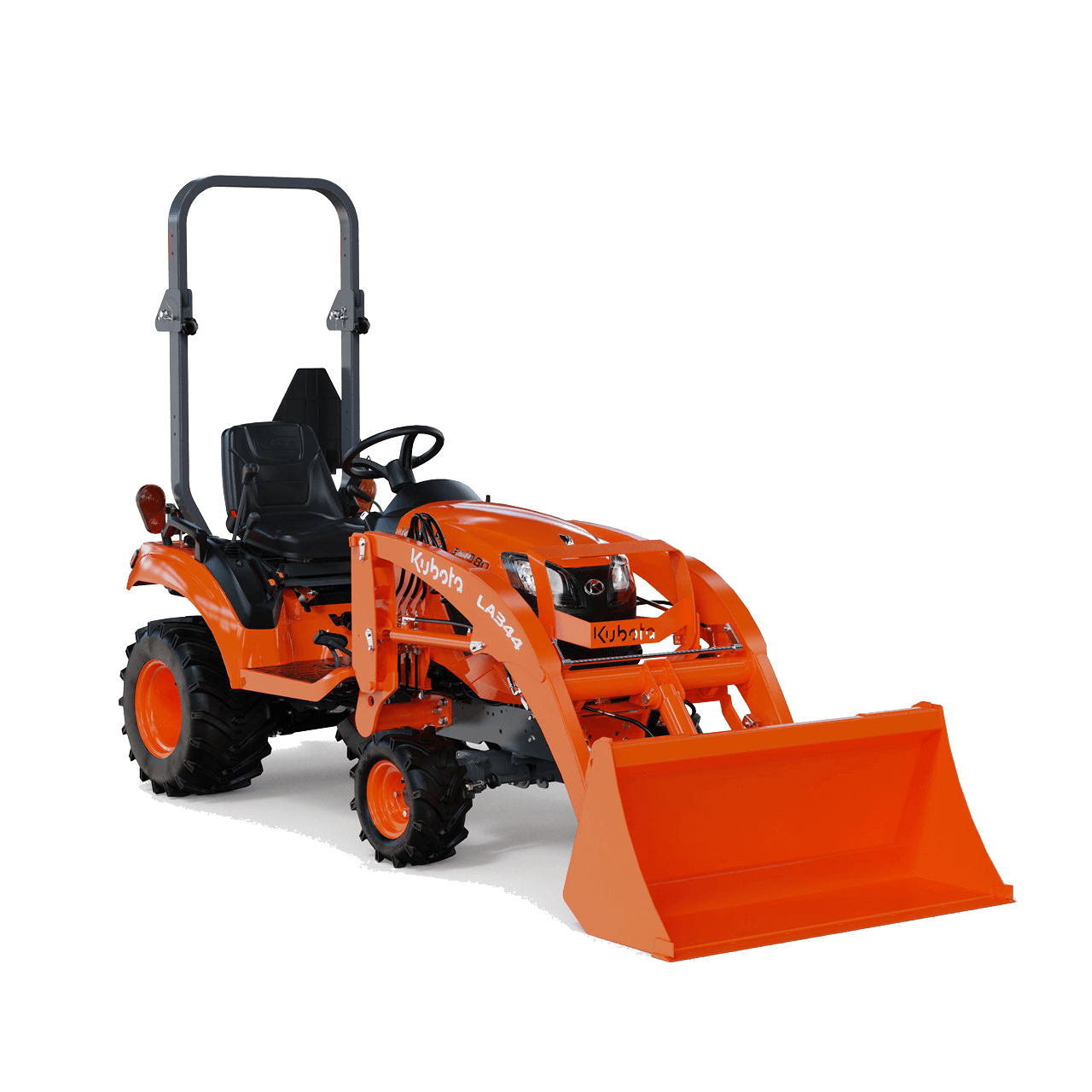

Our exclusive Kubota designed front loader valve makes operations more intuitive and flexible, by allowing the operator to raise or lower the boom while curling or dumping the bucket. Perfect for experienced and first-time users alike.

Telematics - Optional

Telematics - Optional

Now available with KubotaNOW Telematics. With KubotaNOW you can access important information on your tractor including GPS location, geofence, restart inhibit, alerts, machine status and battery level.

Optional heated cab

Optional heated cab

Operate your BX-Series in comfort while being protected from the elements. The new heated cab is a great option to operate the BX in every condition.    Features include: High visibility glass with front and side opening windows Dash integrated heater and switch panel Compatible with all BX80's including the BX23S

Specs

Model name BX1880
Model Kubota D722
Type Liquid-cooled, 3-cylinder diesel
Cooling system Liquid-cooled
Cylinders 3.0000
Rated engine speed 3200.0000 rpm / 3200.0000 rpm
Engine gross horsepower @ rpm 12.4000 kW / 16.6000 HP
PTO @ rpm 10.2000 kW / 13.7000 HP
Displacement 719.0000 cc / 43.9000 cu. in.
Fuel tank capacity 25.0000 l / 6.6000 gal
Mid-PTO Standard
Rear PTO Standard
Type Live independent PTO (with hydraulic clutch)
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Rated engine speed 2500.0000 rpm / 2500.0000 rpm
Transmission type HST, High-Low gear shift ( 2 forward / reverse )
Brake type Wet disc
Drive method 4WD
3-Point hitch SAE Category I
24" behind lift point 310.0000 kg / 680.0000 lb
Total pump output 23.5000 l/min / 6.2000 gpm
Steering type Hydrostatic Power Steering
Ground clearance 193.0000 mm / 7.6000 in
Overall width 1120.0000 mm / 44.1000 in
Wheelbase 1400.0000 mm / 55.1000 in
Top of Open Station 2080.0000 mm / 81.9000 in
With 3 Pt hitch 2425.0000 mm / 95.5000 in
Front 930.0000 mm / 36.6000 in
Rear 820.0000 mm / 32.2000 in
Without brake 2.3000 m / 7.5000 ft
Open Station 606.0000 kg / 1336.0000 lb
Fuel type Diesel
Front 16×7.5– 8
Rear 24×12–12
Front 16×7.5– 8
Rear 24×12–12
Front N.A.
Rear N.A.
Forward 12.5000 km/h / 7.8000 mph
Reverse 9.5000 km/h / 5.9000 mph
