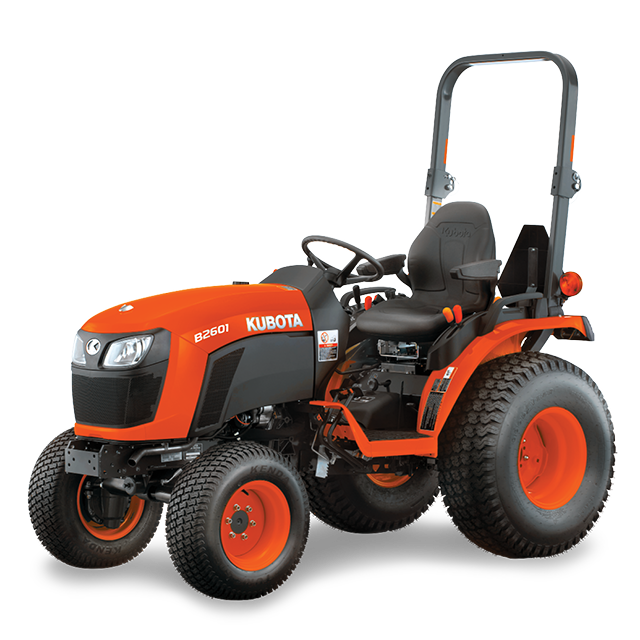

Compact Tractor

B2601

Get A Quote

Features

Quality you can trust

Quality you can trust

Kubota builds every B01 with legendary reliability. Powered by a 20.9 to 23.3 HP liquid cooled three-vortex combustion (E-TVCS) Kubota diesel engine, and engineered with a cast-iron front and rear axle plus a heavy-duty Category I 3-point hitch, the B01 delivers durability you can count on season after season. Easy maintenance features like a one-piece metal hood keep your tractor working as hard as you do.

Comfort that lasts (HST models)

Comfort that lasts (HST models)

From dawn chores to end-of-day cleanups, operator comfort matters. The B01’s spacious ISO-mounted flat deck provides generous legroom, while the high-back shock-absorbing seat with standard armrests helps reduce fatigue. With tilt steering, cruise control, and an intuitive pedal layout, the B01 makes long hours feel a lot shorter.

Versatility for every task

Versatility for every task

Small but mighty, the B01 is built to handle it all. Switch effortlessly between mowing, loading, snow blowing, digging, or hauling. Attachments like the Swift-Tach Loader and BH70 Backhoe connect and disconnect in minutes, while Kubota’s K-Connect Front Hitch lets you move from sweeper to snowblower to blade with ease. When space is tight, the B01 maneuvers confidently — turning tight spaces into productive workplaces.

Capability beyond its size

Capability beyond its size

Don’t be fooled by the compact footprint — this tractor is designed to deliver big results. The hydraulic independent* PTO keeps you moving while engaging implements, and telescoping stabilizers make attaching rear tools fast and simple. Whether you’re tilling, hauling logs, or maintaining a long driveway in winter, the B01 is always ready to get the job done. *HST models only.

Swift-Tach Loader

Swift-Tach Loader

Work smarter, not harder. The B01’s LA435 Swift-Tach Loader can be removed in less than a minute — without ever leaving your seat. That means faster changeovers and more time spent getting the job done. Step up in capacity from a sub-compact tractor with a lift capacity of 948lbs (pivot pin, max height), the B01 can tackle heavy duty projects.

BH70 Backhoe

BH70 Backhoe

Optimized for the B01, the BH70 Backhoe makes digging and trenching effortless. A reversible swiveling seat provides easy operator access, while the 4-point mount system allows quick, toolless switching between the backhoe and rear implements. Removal is as simple as disengaging two pins and three hoses.

Drive-over mid-mount mower

Drive-over mid-mount mower

Offered in 54” and 60” side-discharge models, this mower is designed for quick hookup — simply drive the tractor over it to align for fast attachment and removal. The B01 can be equipped with turf tires and a selectable rear differential that locks or opens to help protect your lawn. An optional grass catcher is available.

HST or Manual Transmission

HST or Manual Transmission

The B2301 and B2601 come equipped with an easy to use 3 range hydrostatic transmission (HST) for simple, intuitive control - ideal for frequent direction changes. For a more traditional and economical experience, the B2401DT and B2401DTN are equipped with a 9 forward / 3 reverse manual transmission.

K-Connect Front Hitch

K-Connect Front Hitch

Switch tasks in seconds. Kubota’s K-Connect Front Hitch and PTO system makes it simple to install or remove attachments like a rotary sweeper, snowblower, or front blade. Perfect for year-round efficiency in every season.

Expansive operator platform

Expansive operator platform

"Step up to comfort. The ISO-mounted flat deck provides ample legroom, wide steps, and easy access, while widely spaced fenders create a more open, spacious operating environment "

Hydraulic Independent PTO (HST models)

Hydraulic Independent PTO (HST models)

Stay productive without stopping. The independent PTO allows you to engage or disengage implements on the go — keeping you moving forward and backward with ease, no downtime required.

Specs

Model name B2601
Type E-TVCS, liquid cooled, 3 -cylinder diesel
Air pre-cleaner Dual paper element
Bore 78.0000 mm / 3.1000 in
Stroke 78.4000 mm / 3.1000 in
Cooling system Pressurized radiator
Lubrication Forced lubrication
Make Kubota D1105
Radiator fan Radial air flow
Rated engine speed 2800.0000 rpm / 2800.0000 rpm
Engine gross horsepower @ rpm 17.3700 kW / 23.3000 HP
PTO horsepower 14.4700 kW / 19.4000 HP
Displacement 1123.0000 cc / 68.5000 cu. in.
Fuel tank capacity 23.0000 l / 6.1000 gal
Type Independent
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Rated engine speed 2500.0000 rpm / 2500.0000 rpm
Clutch N/A
Transmission type HST (3 ranges)
Differential lock Standard
Brake type Multi-plate wet disc
Control system Position control valve
3-Point hitch Category I
Type Open center
24" behind lift point 640.0000 kg / 1411.0000 lb
At lift points 820.0000 kg / 1808.0000 lb
Total pump output 31.4000 l/min / 8.3000 gpm
Pump type Dual pump
Hydraulic outlet Rear outlet
Steering type Hydraulic power steering
Final drive Spur gear
Ground clearance 325.0000 mm / 12.8000 in
Overall height 2160.0000 mm / 85.0000 in
Wheelbase 1560.0000 mm / 61.4000 in
Weight 740.0000 kg / 1632.0000 lb
Without 3 Pt hitch 2410.0000 mm / 94.9000 in
(min. tread) 1245.0000 mm / 49.0000 in
Front (Farm) 44902
Rear (Farm) 11.2-16
With brake 2.1000 m / 6.9000 ft
Cooling system capacity 3.8000 l / 4.0000 qt
Engine lubricant oil capacity 3.1000 l / 3.3000 qt
Transmission oil capacity 15.0000 l / 4.0000 gal
Fuel type Diesel
Forward 20.4000 km/h / 12.7000 mph
Reverse 15.3000 km/h / 9.5000 mph
