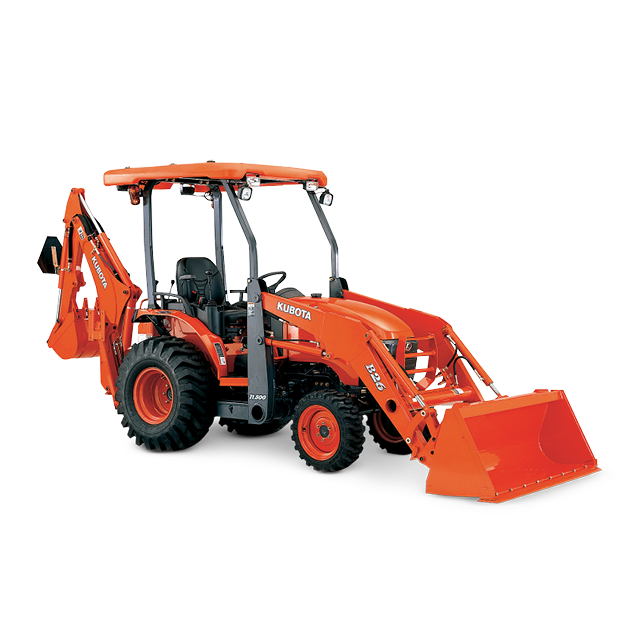

Tractor Loader Backhoe

B26

Get A Quote

Features

Mechanical 2-lever quick coupler

Mechanical 2-lever quick coupler

Kubota’s 2-lever quick coupler lets you quickly and easily attach and detach front implements. With the optional hydraulic 2-lever quick coupler, you won’t even need to leave your seat. Simply press two buttons to release the levers, back away from the now detached implement, move into the next implement, and press the buttons to re-engage the levers. Changing implements couldn’t be easier!

Category I 3-point hitch (optional)

Category I 3-point hitch (optional)

Do even more by attaching any of a wide array of rear-mounted implements to the Category I 3-point hitch. Attachment is quick and easy, and the hitch provides astonishing lift capacity.

Flip-over stabilizer pad

Flip-over stabilizer pad

Switch from road-use side to steel anchor by simply rotating the unit by hand. No tools needed!

Independent PTO

Independent PTO

Get even more work done by attaching a wide range of PTO-driven implements, including rotary tillers, post hole diggers, snow blowers and rear-mounted mowers. The 540 RPM PTO is hydraulic-independent, letting you engage and disengage the PTO without stopping the tractor.

Transporting this workhorse is easy

Transporting this workhorse is easy

Easy and fast. Even with both loader and backhoe attached, the compact B26 can be loaded on a 10,000-lb. GVWR rated trailer pulled by a 3/4-ton pickup truck, letting you quickly and efficiently move to the next job site.

Specs

Model name B26TLB
Air pre-cleaner Single element
Cylinders 3.0000
Rated engine speed 2800.0000 rpm / 2800.0000 rpm
Engine gross horsepower @ rpm 17.3700 kW / 23.3000 HP
PTO horsepower 14.4700 kW / 19.4000 HP
Displacement 1123.0000 cc / 68.5000 cu. in.
Emission certification EPA Final Tier 4
Fuel tank capacity 31.0000 l / 8.2000 gal
Type Independent
PTO/engine speed 540.0000 rpm / 540.0000 rpm
Max. traveling speed 17.8000 km/h / 11.1000 mph
Range gear shift Seat side, left
Speed Infinite
Transmission type HST (3 range)
Brake type Wet disc
Differential lock - Rear axle Standard
3-Point hitch Optional
Position control Standard
Pump capacity 42.0000 l/min / 11.1000 gpm
24" behind lift point 760.0000 kg / 1676.0000 lb
Steering type Hydrostatic
Wheelbase 1581.0000 mm / 62.2000 in
Front 23 × 8.5–14 R4
Rear 12.4–16 R4
Front 905.0000 mm / 35.6000 in
Rear 1050.0000 mm / 41.3000 in
Without brake 2.5000 m / 8.2000 ft
Power unit + 2 implements 1815.0000 kg / 4001.0000 lb
Back up alarm Optional
FOPS Standard
Open Station 4 post
Deck type Full-floating ISO-mounted flat deck
Loader-integrated reinforced frame Standard
Glow plug Super glow
Reversible seat Standard
Hard nose slanted hood Standard
Horn Optional
Tilt steering wheel Standard
